Wired command centre CC210
Description

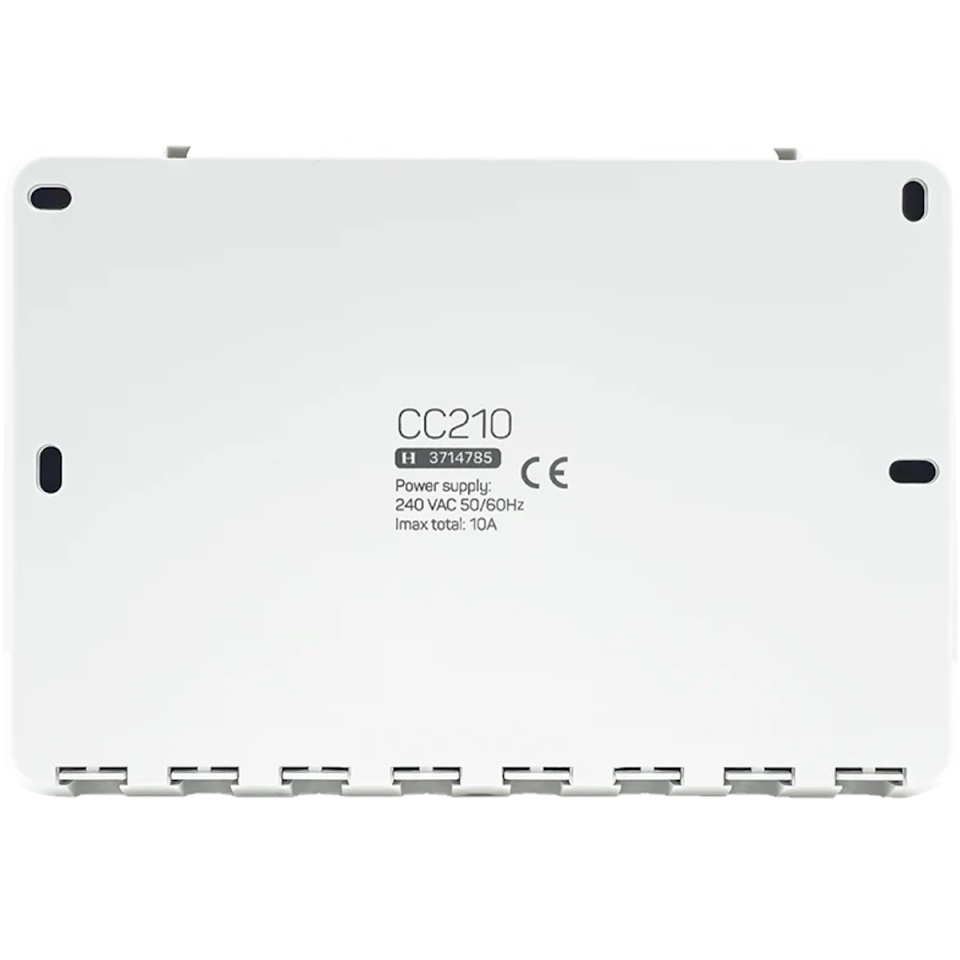

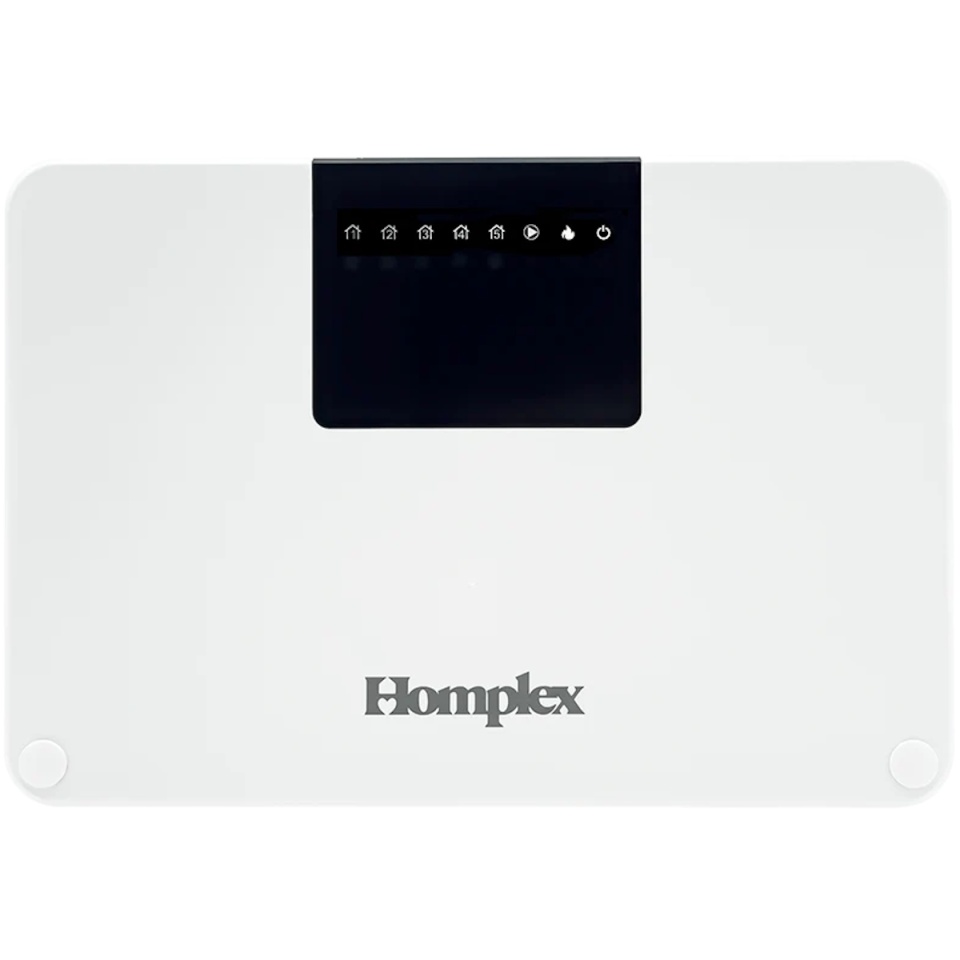

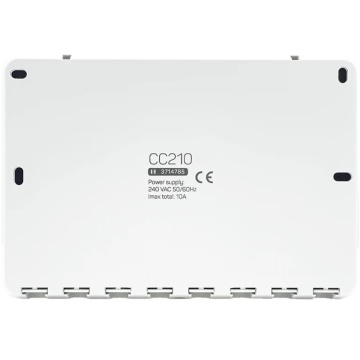

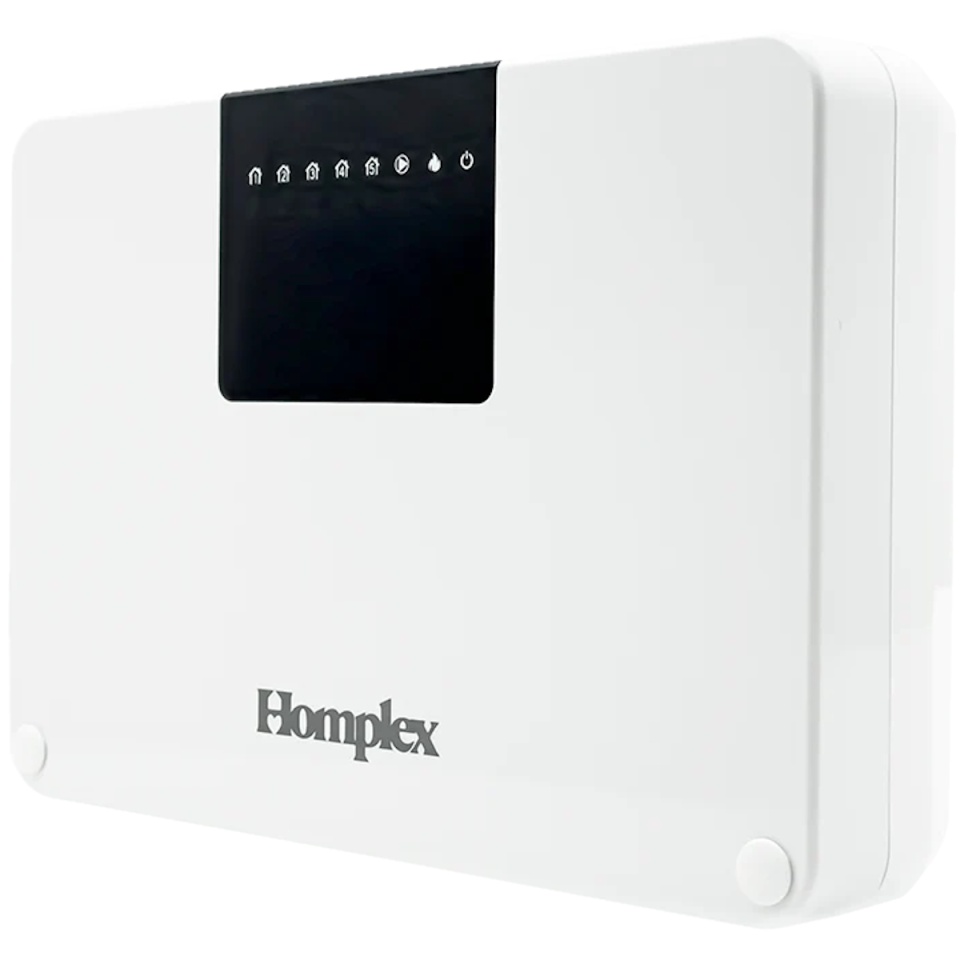

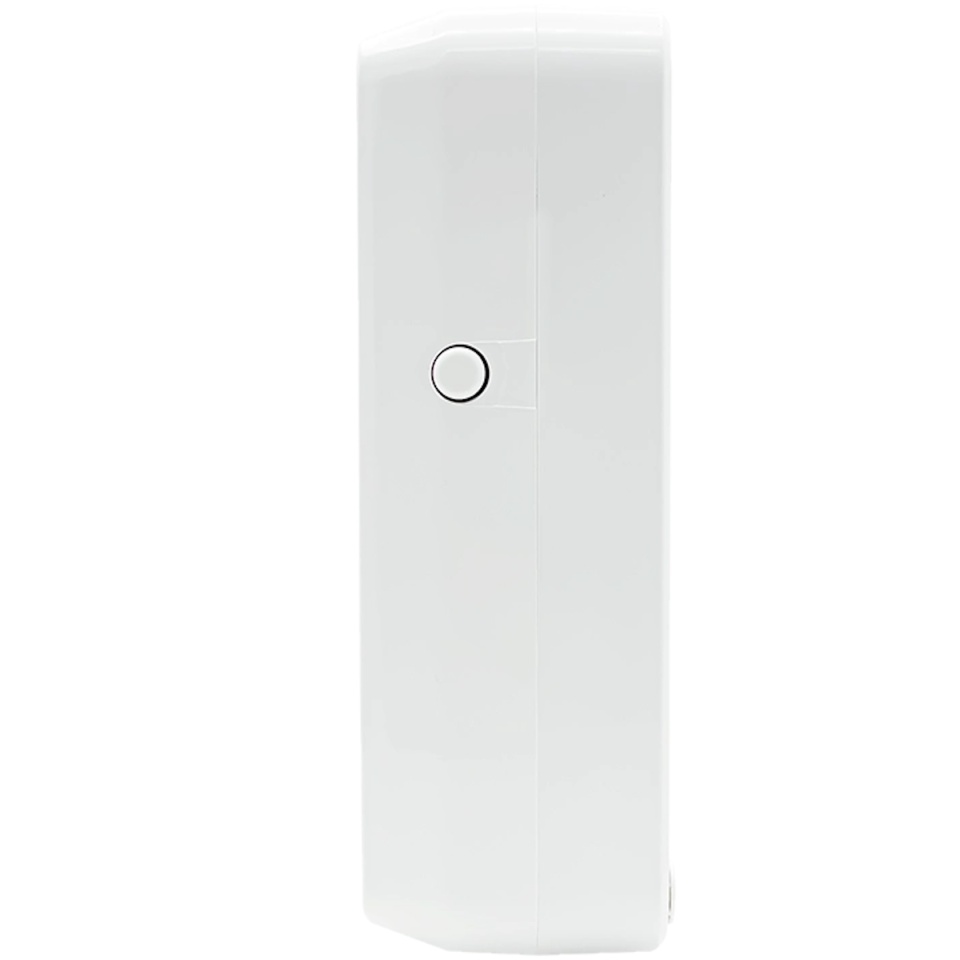

Wired command centre Homplex CC210
The Homplex CC210 control centre has been developed to provide a temperature control system for space heating/cooling, integrating the switching of primary heating sources with water temperature control and mixing devices.
This control centre is ideal for situations where a small number of actuators (up to 5) in the network need to be controlled. You’ll save money by not having to buy a more expensive system with 3 extra zones that you’ll never use, but also because of its small size, the Homplex CC210 offers additional possibilities when it comes to installation.
Functions
- Homplex CC210 can work with up to 5 thermal actuators for different zones/rooms.
- 5 wired thermostats, 1 control centre: Homplex CC210 can work with up to 5 thermostats connected in parallel (wired)
- Pump and central heating control: The Homplex CC210 control centre is equipped with control ports for controlling the recirculation pump and the power plant.
Specifications
Use: Underfloor heating
Power supply 230 VAC +10/-10%, 50 Hz
Maximum pump and actuator load 10 A
Size 160 x 110 x 35mm
Central relay Dry contact max. 8A
Recirculation pump source 250 VAC 8(5)A
Thermal actuator 5 x 230VAC, max. 2A (individual), max. 5A (total)
Temperature interval -20C … +60C
Storage temperature -20C … +70C
Colour White
