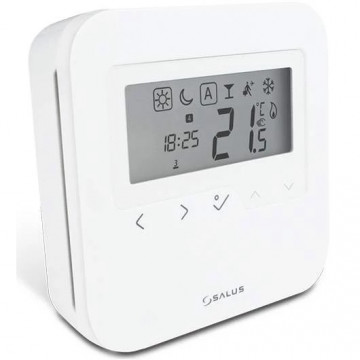

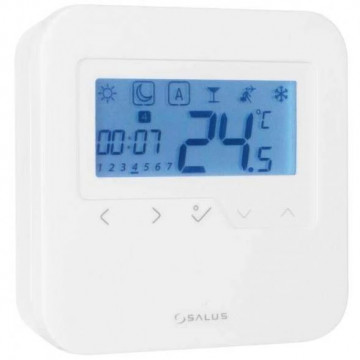

Wired digital programmable thermostat Salus HTRP230

Surface-mounted (or on a flush-box) thermostat dedicated for surface heating / cooling control, characterized by high thermal inertia. It is connected to the wiring centre.

It has the function of creating your own schedules. It can control daily thermostats - via wiring centre it sends them an NSB signal and switches them to economic temperature. Then the time schedule is common to all thermostats (according to the weekly thermostat), while temperatures are set individually on each thermostat.

Product advantages:
• absolutely silent operation (TRIAC)
• has a PWM control algorithm
• protection against too high or too low temperature using an additional FS300 floor sensor
• protection of thermostatic valves against stagnation (VP)
• an input for the additional temperature sensor
• has frost protection mode

The HTRP230 (50) thermostat works with KL08NSB or KL06-M (230V) wiring centres.

Technical specifications

Power supply	230V AC 50 Hz
Rating max	0.5 A
Output signal	230V AC
Temperature range	5 - 35°C
Display temperature accuracy	0.5°C
Control algorithm	PWM or Hysteresis ±0.25°C/±0.5°C
Communication	Wired
Dimension [mm]	85 x 85 x 25
