Wired Wi-Fi Thermostat Cube S Net

Description

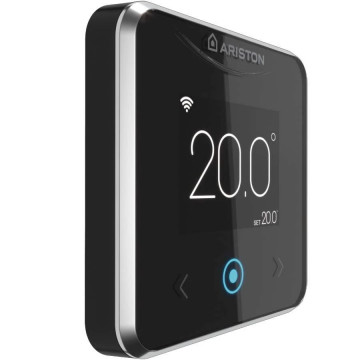

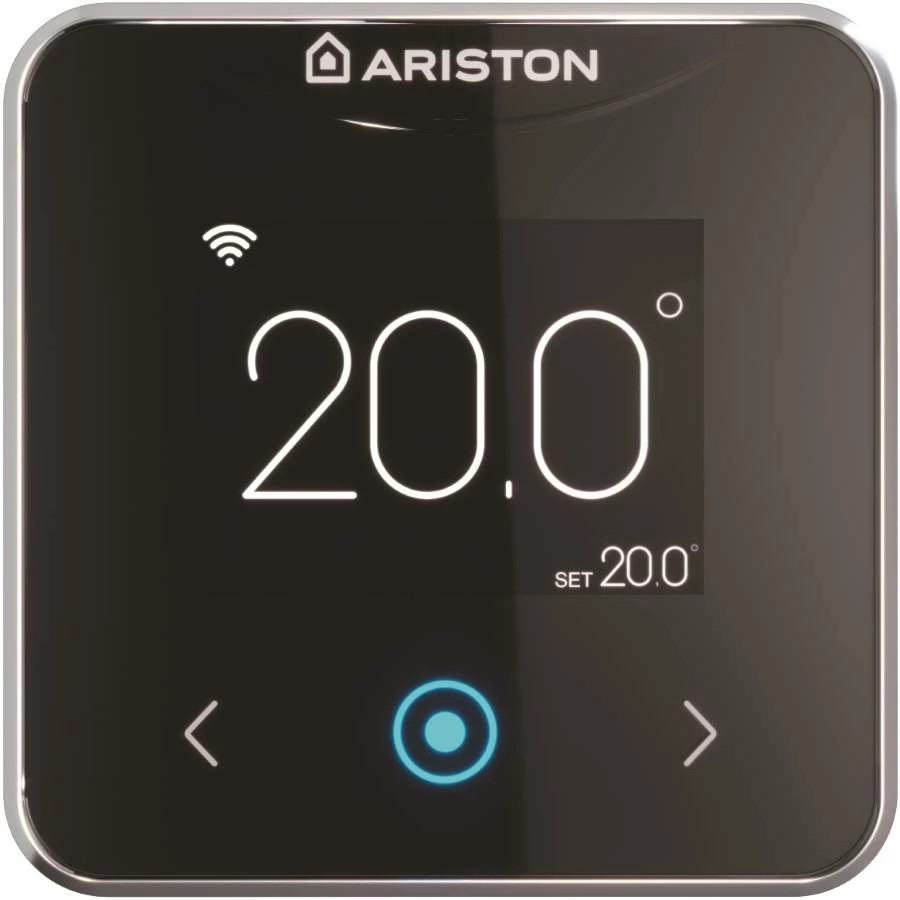

Wired Wi-Fi Thermostat Ariston Cube S Net

The Cube S Net Wi-Fi thermostat offers modulating technology and a sleek Italian design. It is quick and easy to install and compatible with the Ariston NET app for remote heating control and optimised energy saving ability. Ariston NET compatible With Ariston NET you have comfort at your fingertips.

Modulation technology
Temperature adjustment according to weather conditions
Plug & Play installation.
Italian high-tech style
High resolution touchscreen display.
connection type: wired
internet connection: integrated wifi mode
power supply: BUS
interface: TFT display / 3 touch buttons
domestic hot water control: setting the domestic hot water temperature
alert notifications: generic message
CUBE S NET thermostat functions

set the heating temperature
scheduling; manual control
summer Winter; heating / cooling
override function
holiday function; OFF (system)
BusBridgeNet function - the user is constantly informed about the temperature inside the room, the system being able to save energy while adjusting its operation to the optimum temperature.
compatibility - this type of thermoregulation accessory is compatible with Ariston heating systems, such as central heating, heat pumps and others.
Power supply: BridgeNet BUS from 8 to 24V max .;
Lithium-ion battery: 3.7 V DC 500 mAh battery
Electrical absorption ≤30mA
Operating temperature -0..40 ° C
Battery storage temperature -10..45 ° C; Storage temperature without battery -20..70 ° C
Humidity 20% RH..80% RH
Temperature accuracy +/- 0.5 ° C
Bus cable length and section: max. 50 m, ø min. 0.5 mm² (to avoid interference, use a shielded cable or telephone splitter).
Insulation class III; Degrees of protection IP 20
Dimensions 103 mm x 103 mm x 19.1 mm.
Frequency band used: 2400 MHz-2483.5 MHz
Maximum bandwidth +19 dBm
Wi-Fi channel 1-13
Product sheet (BridgeNet Bus system only)
Temperature control class: V; Contribution to energy efficiency% of ambient heating: + 3%

Adding an External Probe or Internet Weather: Temperature Control Class VI; Contribution to energy efficiency% for ambient heating + 4%
In a 3-zone system with 2 environmental sensors: Temperature control class VIII; Contribution to energy efficiency% of ambient heating: + 5%.
