Wireless programmable Thermostat T3R

Description

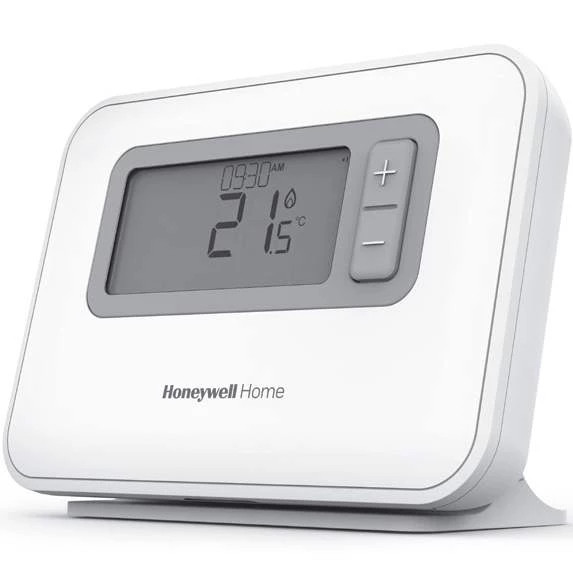

Wireless programmable Honeywell Thermostat T3R YRH710RF0072

7-day program, 4 steps, 5 working modes, mounting support on flat surfaces, with illuminated display; for automatic temperature control depending on the time in the heating installations in villas or apartments.

Mounting: on the table.

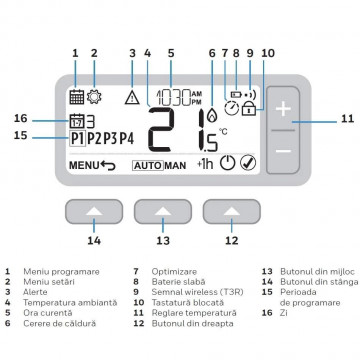

Illuminated LCD display
Schedule up to 4 times a day, with the option of daily, weekly or 5 + 2

Application: heating only. T3 can control on / off wall-mounted thermal power plants, boilers, zone valves, circulation pumps, etc., but not electric heating systems
Operating mode: automatic (AUT), manual (MAN) and frost protection (OFF)
optimization functions (optimal start, stop and delayed start) plus adaptive "fuzzy" logic protocols.
Program settings saved in non-volatile memory.
User Menu and Installer Menu (Service)

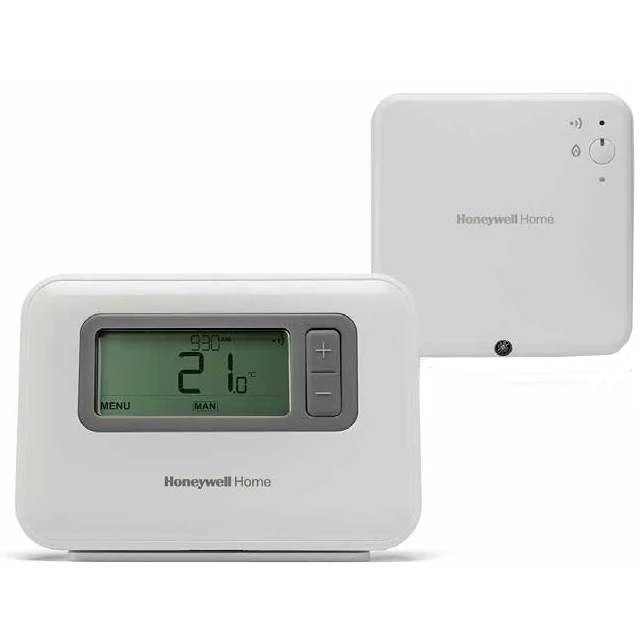

RF receiver with LED indicator.
Command type: Fuzzy Logic; Temperature display range: from 0 ° C..50 ° C. Dimensions w x h x d = 136x97x26 mm.

Time display: 24 hours or 12 hours AM / PM format. Clock accuracy: +/- 10 min per year. Schedule: 5 + 2 or daily, with 4 changes in time and temperature. Time setting resolution: Program - 10 minute steps. Sensor: 10k (@ 25 ° C) NTC thermistor. Temperature setting range :: Program: 5..35 ° C, OFF: 5 ° C.

Power supply: 2x AA batteries.

Wireless communication:

RF operating band: ISM (868.0-868.6) MHz, 1% duty cycle. Max, power: 25 mW. Communication Protocol .: Encrypted. Communication distance: 30 m in residential buildings. Communication technology: short and powerful transmissions to minimize air time and avoid collisions. R.E.D Receiver Class: RX Cat 2 (ETSI EN300 220‐1 version 1.3.1).

RF receiver: dimensions 110x110x40 mm. Electrical connection: 230 V, with max. 1.5 mm2.

Honeywell T3 Thermostat Operating and Installation Instructions

Manuals for Operating and Installation for the thermostat Honeywell T3
