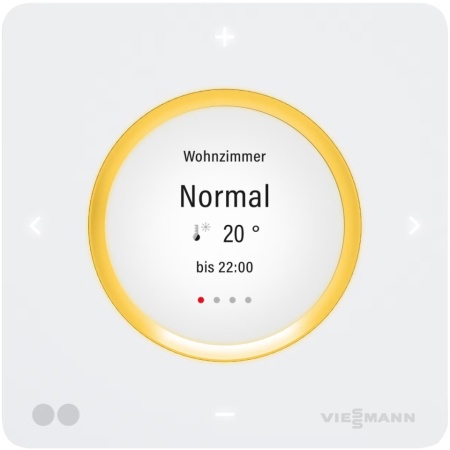

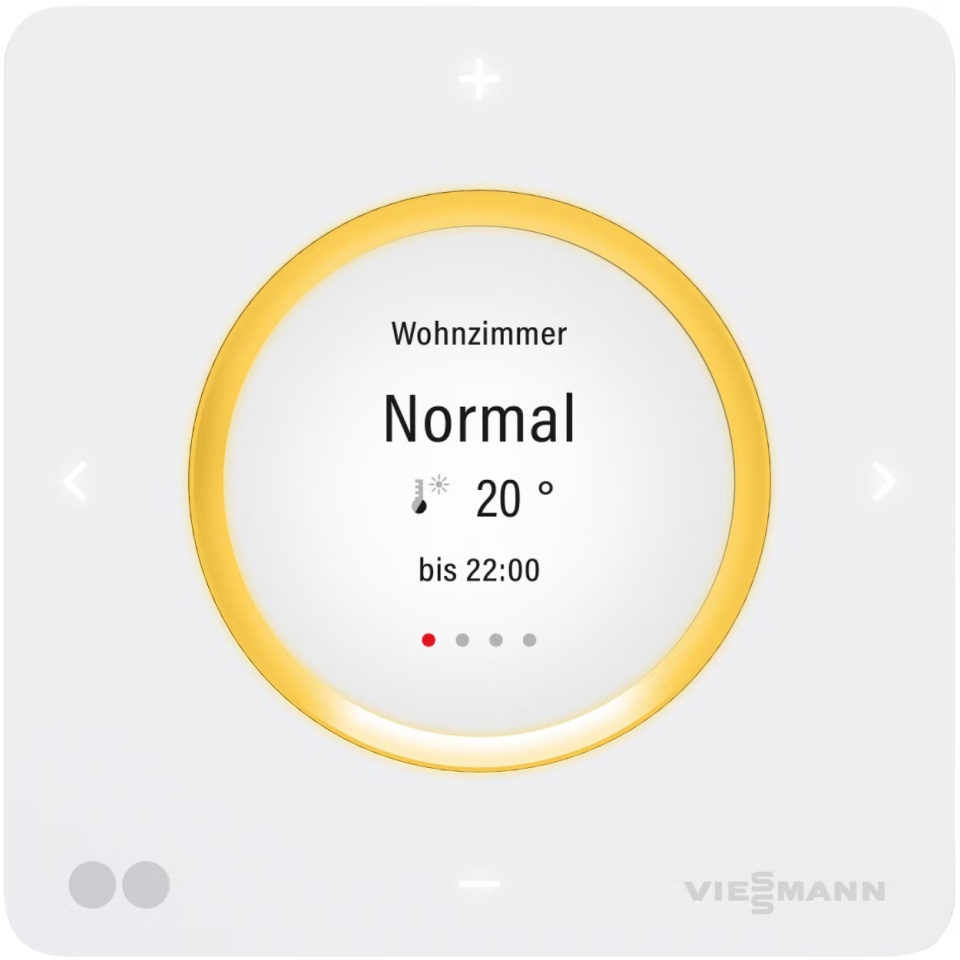

Wireless remote control Vitotrol 300-E

Description

Wireless remote control Viessmann Vitotrol 300-E

Wireless remote control with built-in low power radio transmitter for controlling heating systems.

Features:

• Setting of room temperatures in various operating modes (Comfort, Normal & Reduced) for one, two, three or up to four heating circuits
• convenience functions such as holiday program/holiday at home program
• integrated room temperature and humidity sensor
• backlit graphic display for indication of outside temperature, room temperature & room air humidity
• intuitive colour-coded user navigation (Lightguide)
• encrypted 2.4 GHz low power radio connection
• optional 2.4 GHz WiFi connection for automatic software updates

Communication:

• With the boiler via low power radio connection
• Via WiFi with the DSL router (via heating appliance)

Connections:

• Micro USB port for 5 V plug-in power supply unit (white)
• Threaded fitting for flush mounted power pack (see Accessories tab)
• Do not use more than one Vitotrol 300-E per heat generator: Not in conjunction with hardwired remote control units

Supported Appliances:

• Vitodens 200-W types B2HE B2HF B2KE B2KF
• Vitodens 222-F types B2TE B2TF
• Vitovalor PT2

Standard Delivery:

• Wall mounted Vitotrol 300-E for connection to the heating system
• Plug-in power supply unit, 5 V (white), power socket required

Accessories:

• Alternative power supply, flush mounted power pack unit
