Wireless Thermostat RDD100.1RFS

Description

Wireless Thermostat Siemens RDD100.1RFS

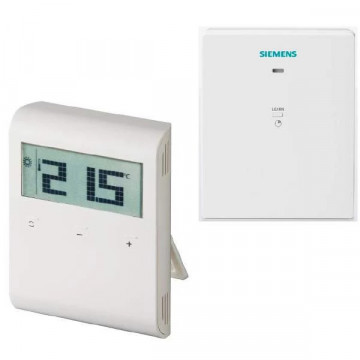

Set including: RDD100.1RFS digital thermostat and RCR100RF receiver.

RDD100.1 digital room thermostat, usable in heating-only systems to maintain room temperature.

2-position control, with ON / OFF output for heating
Working modes: 3 comfort / economical / frost protection
Digital display - indicates temperature in oC or oF
Color: white RAL9003
The thermostat measures the room temperature with its integrated sensor and maintains the temperature at the reference level by transmitting appropriate commands. Switching hysteresis is 1 K.

The RDD100.1 thermostat has a normal operating mode and, optionally, an economical or OFF mode. The difference between normal and economy mode is only the room temperature reference. Switching from normal mode to economy mode and vice versa is done by pressing a button.

Thermostat technical data (transmitter):
Electrical voltage: 3V dc (2 alkaline batteries of 1.5 V AAA) Electric current: max. 5 A

Communication frequency: 433 MHz

Switching range: 5-35oC; 0 (OFF) Increment: 0.5oC Switching hysteresis: <1 K

Dimensions: BxAxH = 85x21.5x106 mm

Weight = 0.134 kg

RCR100RF receiver:
Operating voltage: AC 230 V +10% / - 15%; Power <10 VA; Frequency: 48 ... 63 Hz

Relay switching capacity: AC voltage 24 ... 230 V, current 8 (2) A
