Wireless Thermostat RDS110.R

Description

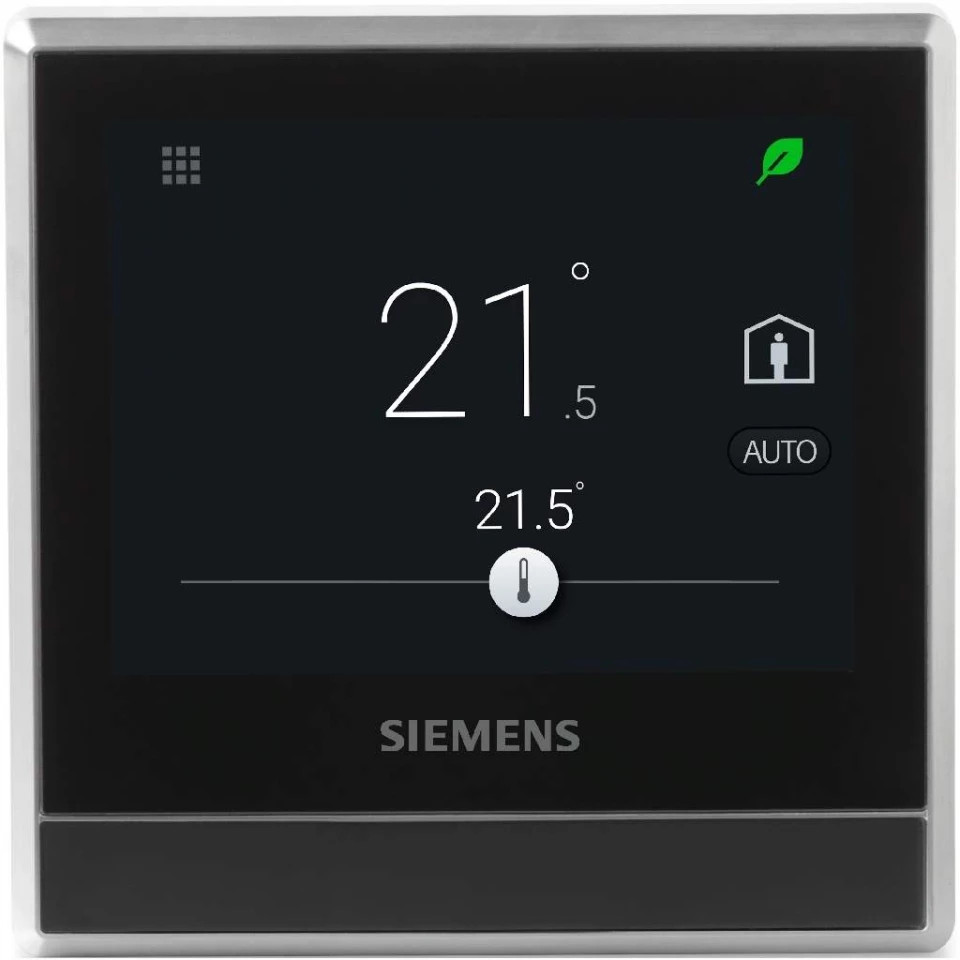

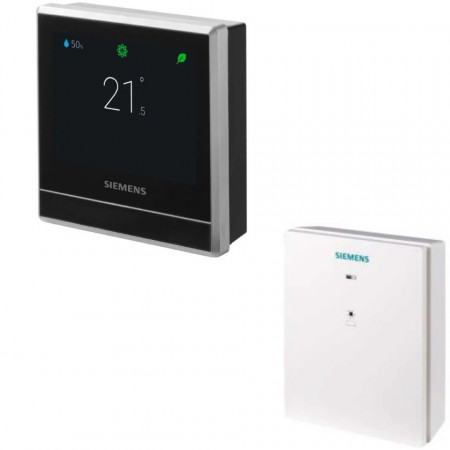

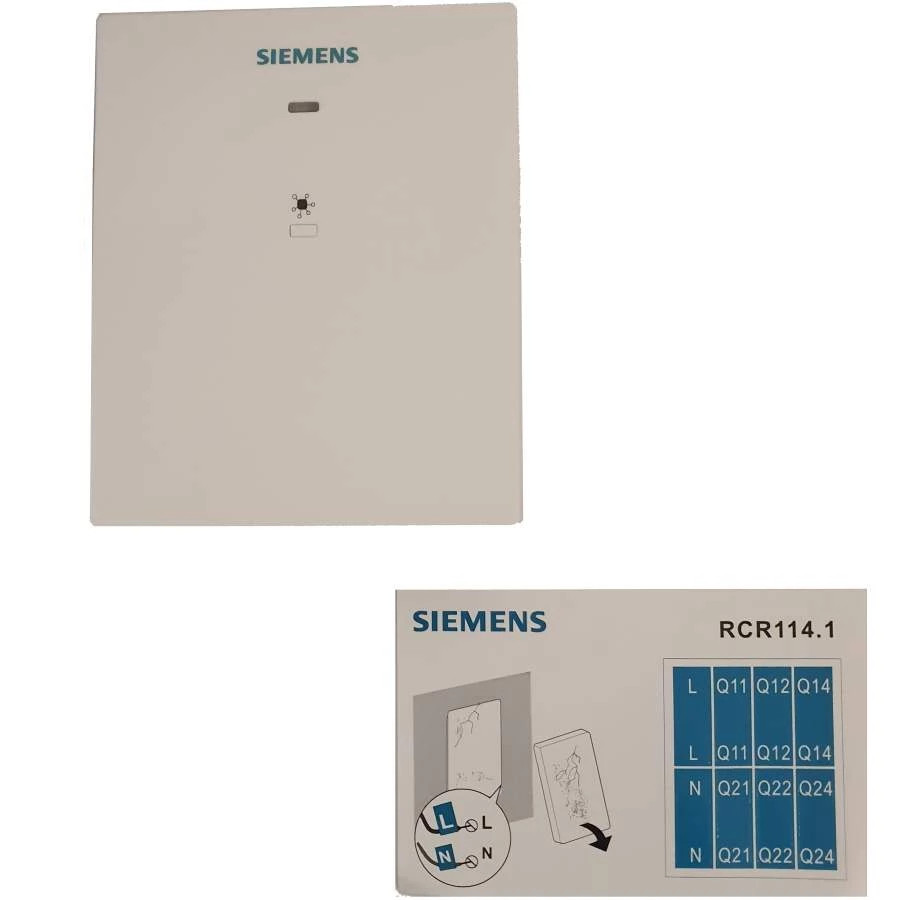

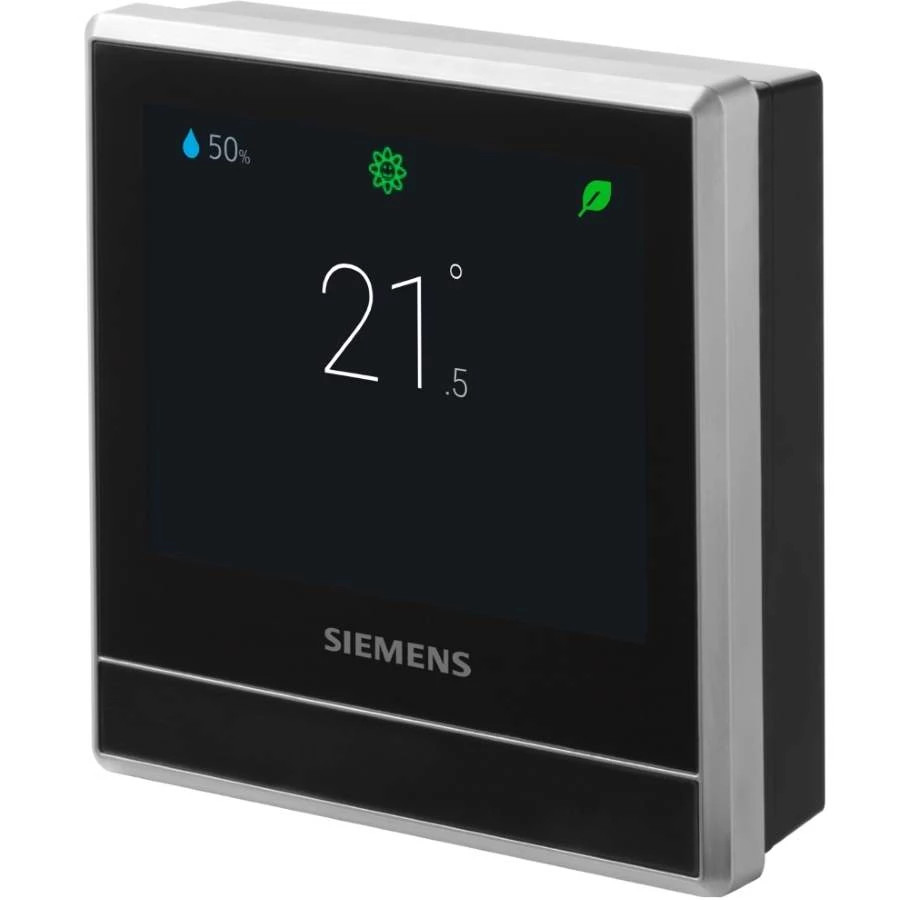

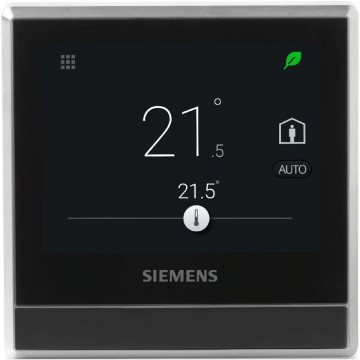

Smart room thermostat, Siemens RDS 110.R wireless + RCR114.1 receiver,

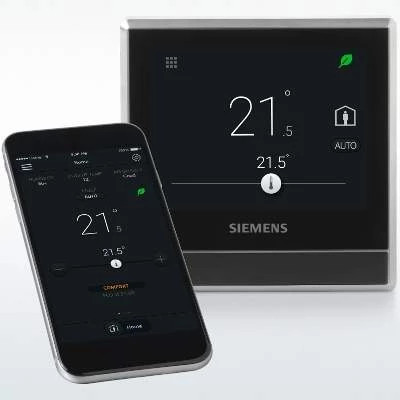

which can be controlled from your mobile phone or tablet. The Siemens RDS 110.R thermostat can be used either directly, via the touchscreen interface or on the phone (using the GooglePlay / AppStore application).

Illuminated 90 mm color LCD touch screen for intuitive use

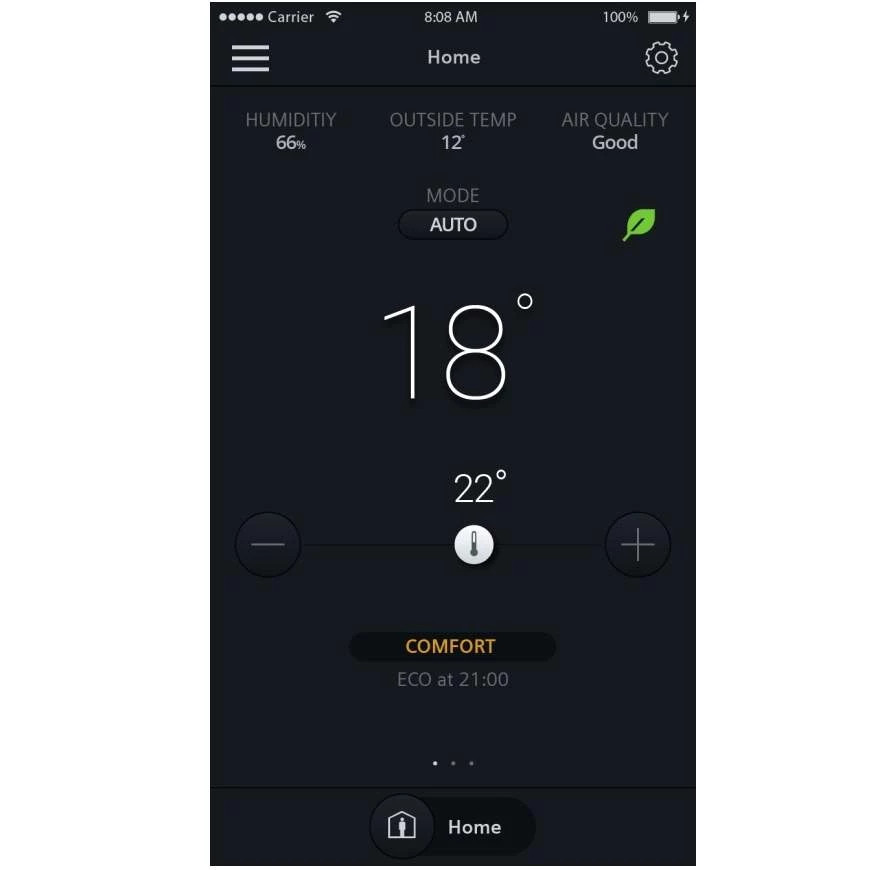

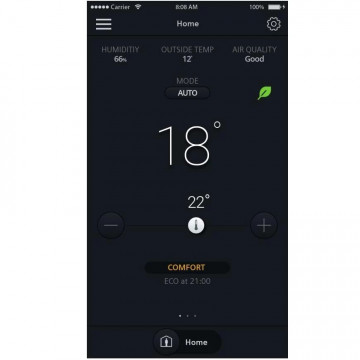

Mobile smartphone app
Algortim PID patented, self-learning
"Green leaf" button for energy-optimized operation
Integrated sensor for air quality indication
Automatic operation according to a time schedule
Multifunctional inputs for window contacts, remote management sensors, etc.
Outputs for 2 relays for heating, humidifier, dehumidifier or hot water boiler equipment.
Complies with Class IV of the Eco Design Directive.
The Siemens RDS110 smart thermostat has 6 high-precision sensors:

temperature sensor
humidity sensor
light sensor
proximity sensor
presence sensor
organic particle detection sensor.
All these sensors being incorporated in RDS 110, allow the thermostat to operate completely autonomously.

RDS110 thermostat features:

Direct selection of temperature and operating mode
RoomOptiControl function with Green leaf button for energy-optimized use
Air quality indicator: “Good”, “Okay”, “Poor” (Good / OK / Poor)
Temperature setting limitation, for use in public spaces
Standby screen protector to prevent unauthorized access
Manual touchscreen switching between "Home", "Away" and "OFF"
Room temperature control via integrated temperature sensor or remote mounted sensor
Patented self-learning algorithm with PID response, which guarantees optimal temperature control in any type of room / home
Optimized start-up function, which ensures the set temperature is reached in the shortest time
Limit the floor temperature via a remote sensor to an electric underfloor heating system
Room humidity control via integrated humidity sensor
Detects a person's presence via the integrated PIR sensor
2 Multifunctional, optional and configurable inputs for: - Window contact, eg - Remote temperature sensor - Floor sensor - Outdoor sensor - Remote humidity sensor
Output with 2 relays for: - Heating equipment - Extra outlet for a domestic hot water boiler, humidifier or dehumidifier
Periodically control the pump / valve as anti-lock protection
Menu navigation expert, for easy guidance through thermostat functions and settings
Ability to remotely upgrade the thermostat firmware.
The indication "Green leaf" informs the User that the system is operating in an energy optimized manner. When the leaf is red, it means that the thermostat setting has been changed. Pressing the red leaf returns to energy-optimized operation.

Siemens RDS 110.R.

Electrical voltage: AC 230 V. Power consumption: Max. 9 VA
Temperature setting range: 0… 50 ° C
Switching differential: 0.5… 6 K
Communication: Connectable to a compatible WLAN router (802.11b / g / n)
Nr. Analog inputs: 2
Relay outputs: 1. Heating: Central heating, Valve, Radiator, Pump, Fan, 2. Hot water, Humidifier, Dehumidifier.
Nr. Relay outputs: 2. Switching voltage, relay outputs: AC 24… 230 V or potential free.
Switching current, relay outputs: 5 (2) A
Mounting: on the wall, with screws
Degree of protection: IP30
Dimensions: 91 x 91 x 26 mm.
