WQ610RF Surface-mounted regulator

Salus
[1]
RON 671.86 (VAT Included)
Delivery costs are not included
Salus
Buy now, pay later from RON 16.03 / Month Details
Financing through Online Credit smart by BT Direct
Calculate the rate
SKU WQ610RF
Limited stock
Add to Wishlist
How can we help you?
Call us: +40751049108 (Mo-Fr 9-18)
Ask for details
Send us a message

Description

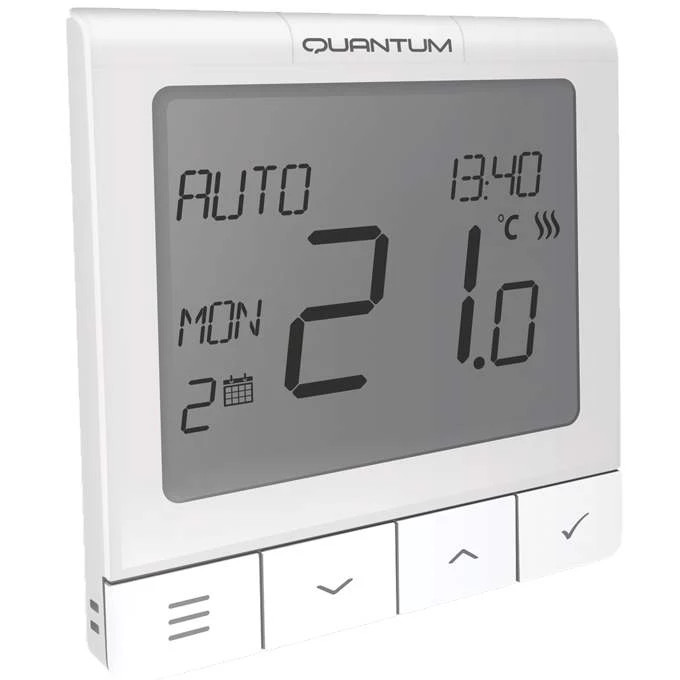

Salus WQ610RF Surface-mounted regulator

WQ610RF in maintaining comfortable conditions in the room according to pre-programmed schedule or a fixed temperature setpoint set by user.

Thermostat is factory paired with the receiver. The receiver is connected to the boiler or other heat source.

WQ610RF offers two connection variants:
• Activation of the heat source by built-in volt-free relay (ON/OFF)
• Boiler output modulation via OpenTherm communication protocol (OT+ 4.0)

What are the advantages of using OpenTherm?
• two-way communication between the boiler and thermostat
• boiler output modulation for maximum efficiency
• domestic hot water (DHW) temperature regulation
• displaying errors and alarm states of the boiler on thermostat screen

Product features:
• the set is factory paired and prepared for operation
• maximum boiler setpoint temperature can be limited by OT+ 4.0 protocol
• hysteresis or built-in ITLC algorithm control algorithms
• 3 operation modes (AUTO, MANUAL, OFF)
• PIN-protected service mode
• maximum/minimum setpoint temperature limits
• temporary override function (manually overrided setpoint temperature until next change forced by schedule)


Technical specifications


Transmitter power supply Built-in 3.7V Li-Ion battery
Power supply for the receiver 230V AC 50Hz
Max load on the receiver 16(5)A
Output signal OpenTherm output signal or COM/NO relay
Temperature control range 5 - 35°C
Accuracy of indication 0.1°C or 0.5°C
Control algorithm ITLC or Hysteresis ±0.25°C/±0.5°C
Communication Wireless, 2.4 GHz
Transmitter dimensions [mm] 86 x 86 x 11
Receiver dimensions [mm] 98 x 98 x 23




List of boilers with OPENTHERM:

Brand: Model:
Alpha Heating E-Tec S
E-tec Plus
E-tec
Evoke
Intec GS
Atag iC
iC Economiser
iS
Baxi 100 Combi
200 Combi
400 Combi
600 Combi
Daikin D2CND 24Kw
D2CND 28kw
D2CND 35kw
Ferroli i25 Condensing Combination Boiler
i29 Condensing Combination Boiler
Ideal Independent + Combi
Independent Combi
Independent System
Logic Combi+ Combi C
Logic Combi C24, C30, C35 (through opional extension)
Logic Code Combi (through opional extension)
I-mini C24, c30 (through opional extension)
Vogue Combi C26,C32, C40
Logic + System
Logic + Heat
Intergas Intergas Rapid
Intergas Rapid Plus
Combi Compact, Compact Range
ECO RF
Xtreme
Xclusive
Main Eco Compact Combi 25-30
Navien Navien NCB
Ravenheat Avanta, Quinta Ace
Quinta Pro
Gas 110 Eco
Vokera Evolve C
Evolve S
Linea One (via OpenTherm Kit Part_1221179)
Vision Combi (requires a control interface 294501430)
Compact A (requires a control interface 29450143)
Verve (heating mode only)
Mynute i (heating mode only)
Vision System (heating mode only)
Unica i
Vibe
Vision C
Linea HE
Mynute A
Mynute HE
Unica HE
Viessmann Vitodens 100W Typ WB1A (Connection: X3.3 and X3.4)
Vitodens 100W Typ WB1B (Connection: X21.1 and X21.2)
Vitodens 100W Typ WB1C (Connection: X21.1 and X21.2)
Vitodens 200-W WB2B 26+ 35 kW (via Expansion Module OT and OT-A8 + _Terminal -10 and +10 are on the extension of the A8 boiler)
Vitodens 200-W WB2C, B2HA,B2JA, B2LA (via icm Expander OpenTherm)
Vaillant (via Vaillant VR33 module) Ecotec Pro
Ecotec Plus
Ecotec Exclusive
Ecofit Pure
Worcester Bosch (via Nefit EMS-OT OpenTherm converter) EMS capable boilers
Greenstar i
Greenstar i Junior (Manufactured after July .2013)
Greenstar Si Compact
Greenstar CDi Compact
Greenstar CDi Classic (Manufactured after 16.01.2007 with software version CF12.10 and higher)
Greenstar Highflow CDi
Greenstar 12i System - 24i System (Provided the optional integrated switching valve manufactured after February 2011 is installed)
Greenstar 27i System - 30i System (Provided the optional integrated diverter valve is installed Greenstar CDi Classic system (provided the optional integrated diverter valve manufactured after 16.02.2007 with software version CF12.10 and later is installed))
