✅ Qube Mag TurboMag 360 OT | Professional Sludge Remover - Termix.ro
Description

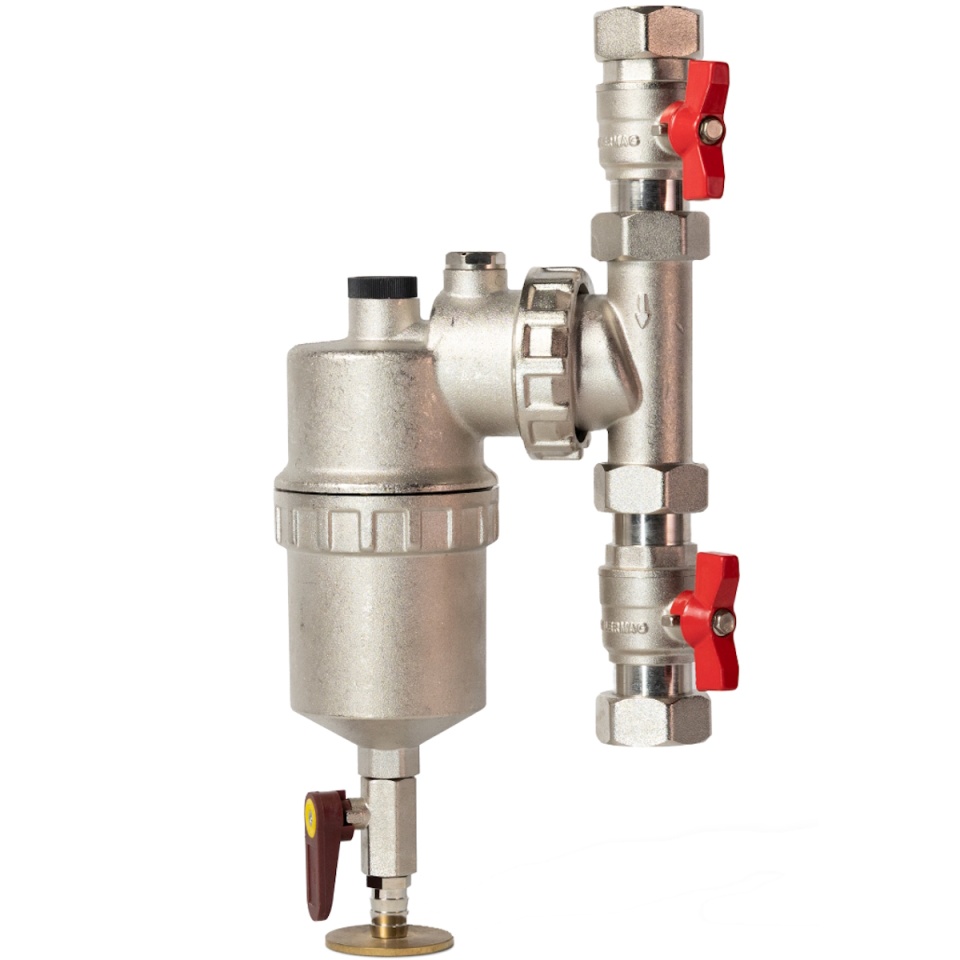

Qube Mag TurboMag 360 OT Magnetic Filter – 3/4" Special Connection for Copper Pipes
📊 Technical Specifications
| Parameter | Technical Detail |
| Max. Inlet Pressure | 10 bar |
| Working Temperature | 0°C - 100°C |
| Filtration Rating | 800 µm |
| Flow Rate | 5.4 m³/h |
| Filter Body Material | Brass CB7535 |
| Connectors & Plugs Material | Brass CW617N |
✨ Why the TurboMag 360 OT is the Professional's Choice
-
Dedicated Copper Connectivity: This specific model is engineered with a 3/4" copper pipe connector, allowing for a direct, seamless fit into copper systems. It eliminates the need for bulky adapters and reduces the risk of leaks at the connection points. 🛠️
-
360° Installation Flexibility: The "OT" designation stands for its versatile rotating connection. Whether your pipes run vertically, horizontally, or at an angle, the TurboMag body can be adjusted to fit perfectly even in the most cramped spaces under the boiler.
-
Heavy-Duty Brass Construction: Unlike plastic alternatives, the TurboMag 360 OT features a body made of CB7535 Brass and connectors of CW617N Brass. This ensures maximum durability against high pressures (up to 10 bar) and thermal stress. ⚙️
-
Superior Magnetite Capture: Utilizing a high-intensity neodymium magnet, this filter traps 100% of the black iron oxide (sludge) circulating in your system, preventing pump failure and heat exchanger blockage. 🛡️
-
High-Flow Performance: With a flow rate of 5.4 m³/h, this filter provides excellent protection without causing significant pressure drops, ensuring your radiators stay hot and your system remains quiet.
-
Extreme Temperature Resistance: Designed to operate between 0°C and 100°C, it is suitable for traditional gas boilers as well as high-temperature biomass systems or solar thermal loops. ☀️
🛠️ Maintenance & Pro Tips
-
No-Mess Cleaning: You don’t need to dismantle the filter to clean it. Simply remove the magnetic sleeve and open the drain valve to flush the captured sludge in seconds.
-
Visual Monitoring: The design allows for quick inspection. We recommend a visual check every 6 months to ensure the system is running clean.
-
System Health: For the best protection, always install on the heating return line. This ensures that the water is cleaned before it re-enters the boiler's sensitive components.
