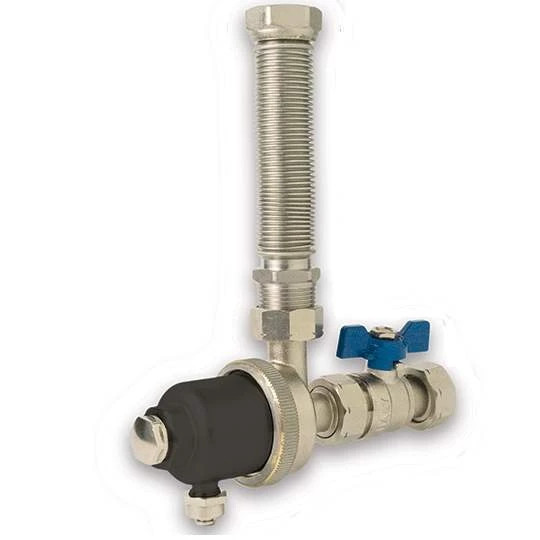

Compact anti magnetite filter Cleanex Mag Compact 3/4" (22 mm)
Description
Compact anti magnetite filter Cleanex Mag Compact 3/4" (22 mm)
The CLEANEX MAG COMPACT 3/4 "(22mm) anti-magnetic filter is an excellent protection solution against the harmful effects of magnetite and other impurities in thermal systems equipped with steel or cast iron heaters.
Due to its small size it can be installed on the return of any type of apartment heating boiler (up to 35kW), thus being extremely versatile and compact.
It has an easy installation on the return of the heating system through the included connection set: 3/4" brass valve and stainless steel flexible connection.
CLEANEX MAG COMPACT 3/4" performs both a magnetic filtration through the permanent magnet of 6000 Gauss, as well as a mechanical filtration of the non-magnetic particles through the 800 micron stainless steel sieve.
Benefits:
✓ Easy installation through included fitting set (3/4 "brass valve, stainless steel flexible connection);
✓ Magnetic filtration through the permanent magnet of 6000 Gauss;
✓ Non-magnetic particle filtering using 800-micron stainless steel sieve;
✓ Compact glass from composite material;
✓ Brass coupling cap;
✓ EPDM seals.
Technical characteristics:
Magnet: 6000 Gauss
Level of filtration: 800 microni
3/4 "ATI Brass Head
Filter from AISI 316 mesh
Ball valve: Brass 3/4 "M / F
O-EPDM ring
