Description

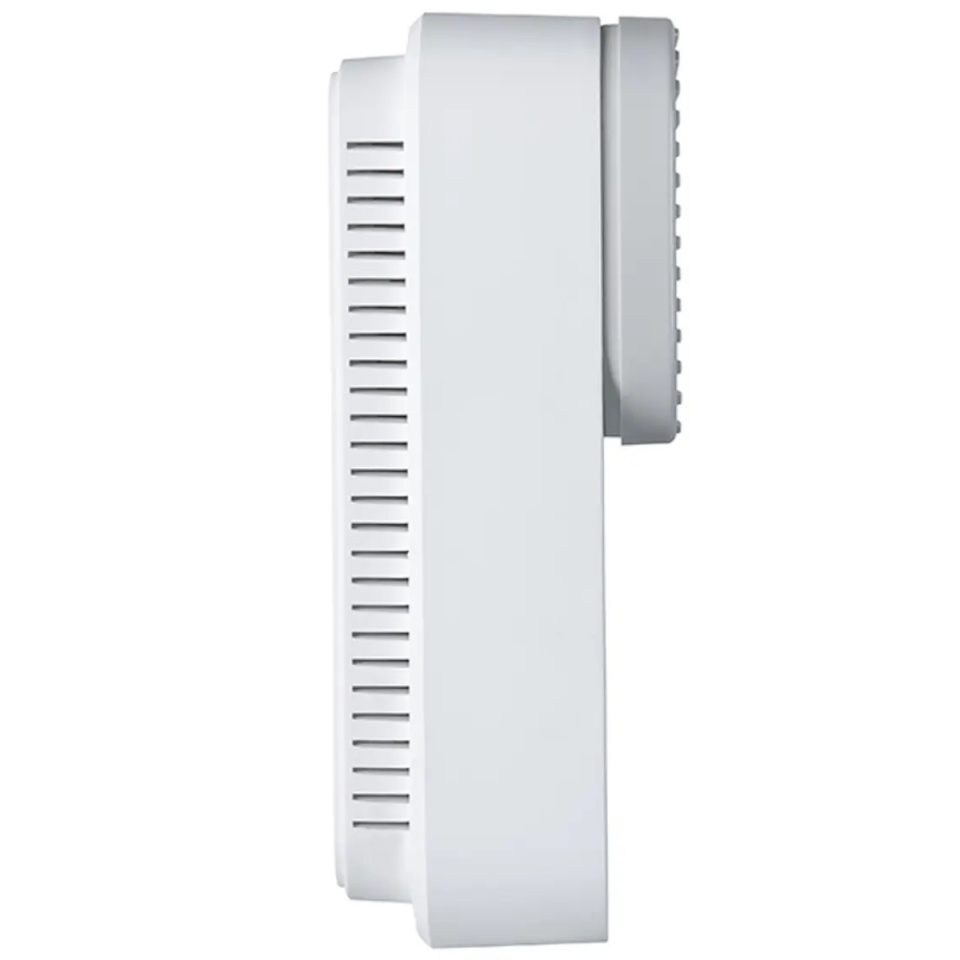

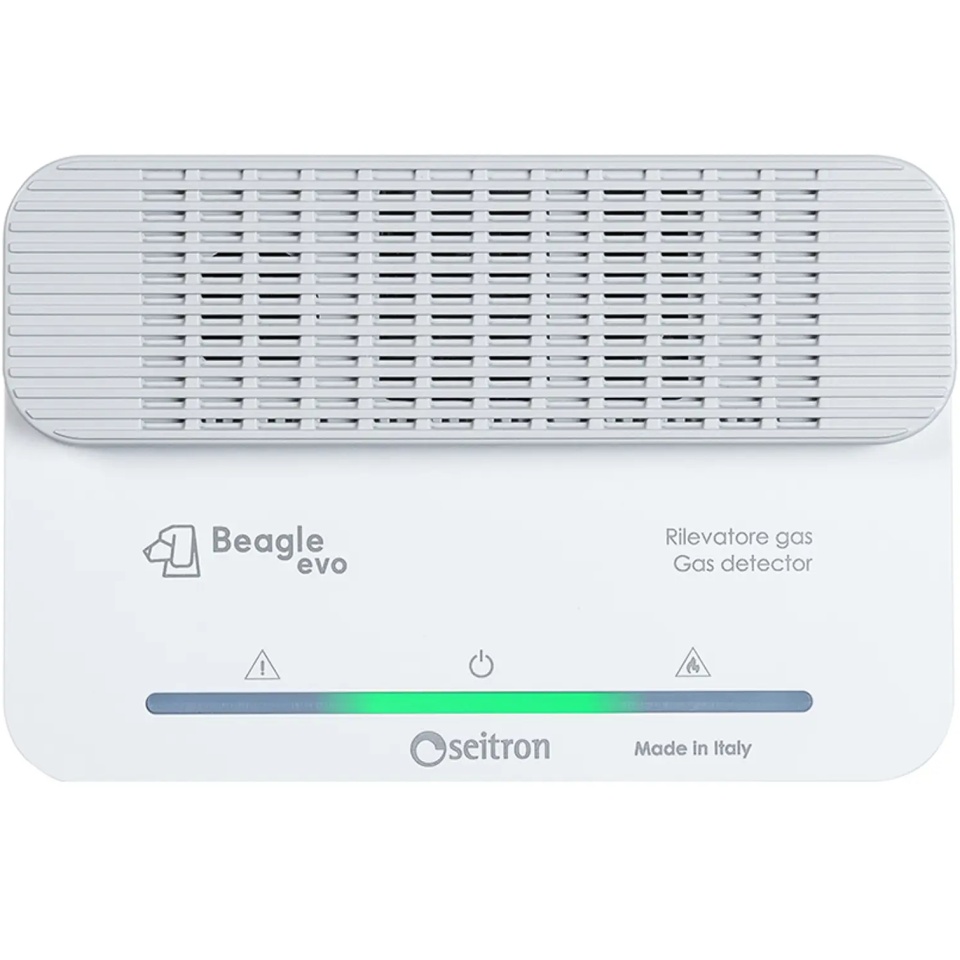

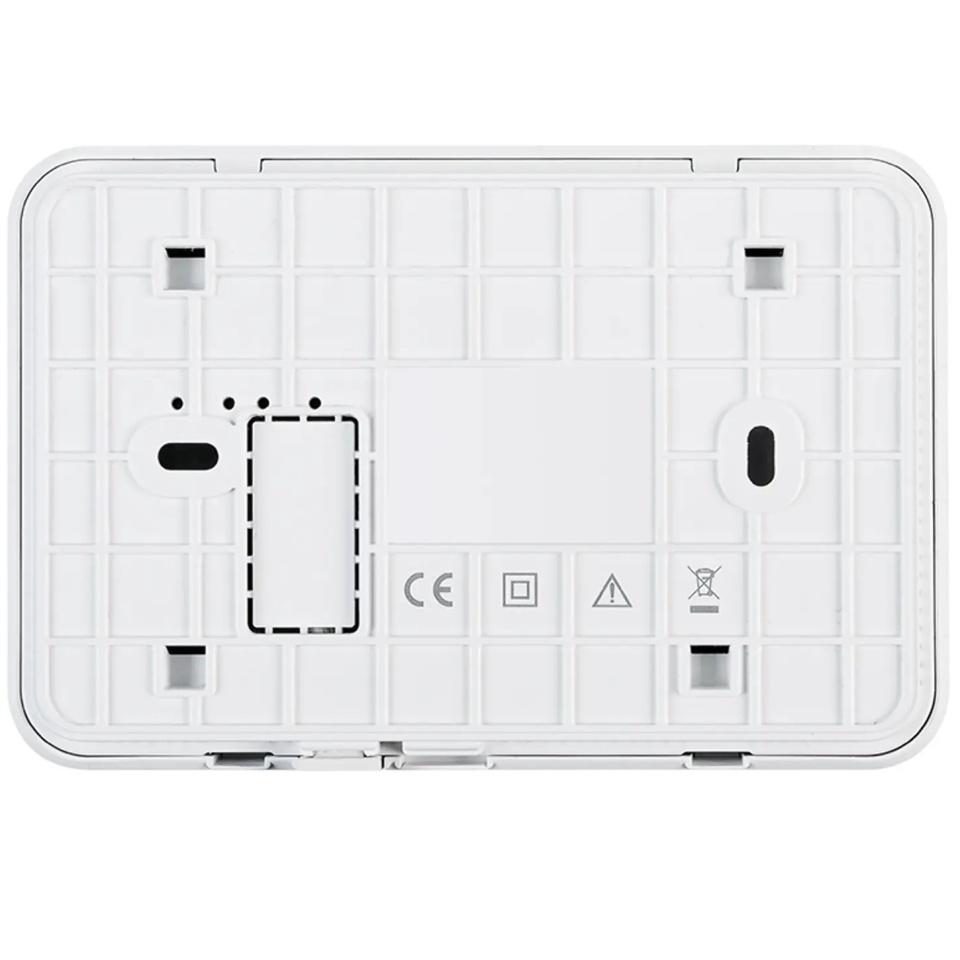

🛑 Seitron Beagle Evo Methane Gas Detector – Professional Italian Gas Leak Safety

Looking for a premium, highly reliable gas leak detection system for your property? 🏠 The Seitron Beagle Evo is a new-generation methane gas detector engineered by Seitron—Italy’s leading brand in thermal safety equipment. It is designed specifically to continuously monitor indoor air quality and detect hazardous natural methane gas (CH4) concentrations in residential and commercial spaces.

Featuring a sleek, compact housing and high-precision electronics, the Beagle Evo acts instantly at the first sign of a gas leak. Upon detection, it triggers a loud acoustic siren and bright LED visual warnings while activating its internal output relay to automatically shut off your main gas solenoid valve or start an emergency exhaust ventilation fan. ⚙️ Smart, professional-grade safety with zero false alarms!

🚀 Key Features & Benefits

• 🇮🇹 Italian Engineering & Quality: Developed and manufactured in Italy by Seitron, renowned across Europe for ultra-reliable, long-lasting safety sensors with rapid response times.

• 🎯 Replaceable High-Precision Sensor: Equipped with an advanced semiconductor sensor module calibrated to detect dangerous gas levels long before reaching the Lower Explosive Limit (LEL). When the sensor reaches the end of its lifespan, it can be easily replaced without replacing the entire unit.

• 🔌 Integrated Command Relay Output: Features a voltage-free relay contact (NO/NC) compatible with standard gas solenoid valves (1/2", 3/4", 1", etc.) or external alarm and ventilation systems.

• 🚨 Clear Audible & Visual Status Indicators: Built-in loud piezo buzzer (rated above 85 dB) accompanied by multi-color status LEDs: Normal Operation (Green), Sensor Fault/Malfunction (Yellow), and Gas Alarm (Red).

• 🛠️ Smart Self-Diagnostics: Continuously monitors the internal circuitry and sensor health, alerting you if recalibration or sensor head replacement is needed over time.

📊 Detailed Technical Specifications

💬 Frequently Asked Questions (FAQ)

❓ Where is the ideal mounting location for the Seitron Beagle Evo methane detector?

📢 Because natural methane gas (CH4) is lighter than air, it naturally rises toward the ceiling. The Beagle Evo should be wall-mounted vertically 30 to 50 cm below the ceiling line, and located 1 to 4 meters horizontally away from gas appliances (such as heating boilers or gas stoves).

❓ What does "replaceable sensor module" mean for long-term maintenance?

📢 Unlike budget single-use gas detectors that must be completely discarded when the sensor ages out after 3–5 years, the Seitron Beagle Evo features a modular sensor head. You can simply swap out the depleted internal sensor module for a pre-calibrated factory replacement, drastically lowering long-term maintenance costs.

❓ Can this detector trigger my existing 1/2" or 3/4" gas solenoid valve?

📢 Yes! The internal relay of the Seitron Beagle Evo works as an automated switch and is universally compatible with virtually all standard gas solenoid valves on the market (whether 230V mains or low-voltage pulse driven), regardless of pipe size (1/2", 3/4", or 1").
