Air conditioner Avanti YW18T3 with Installing Kit

Description

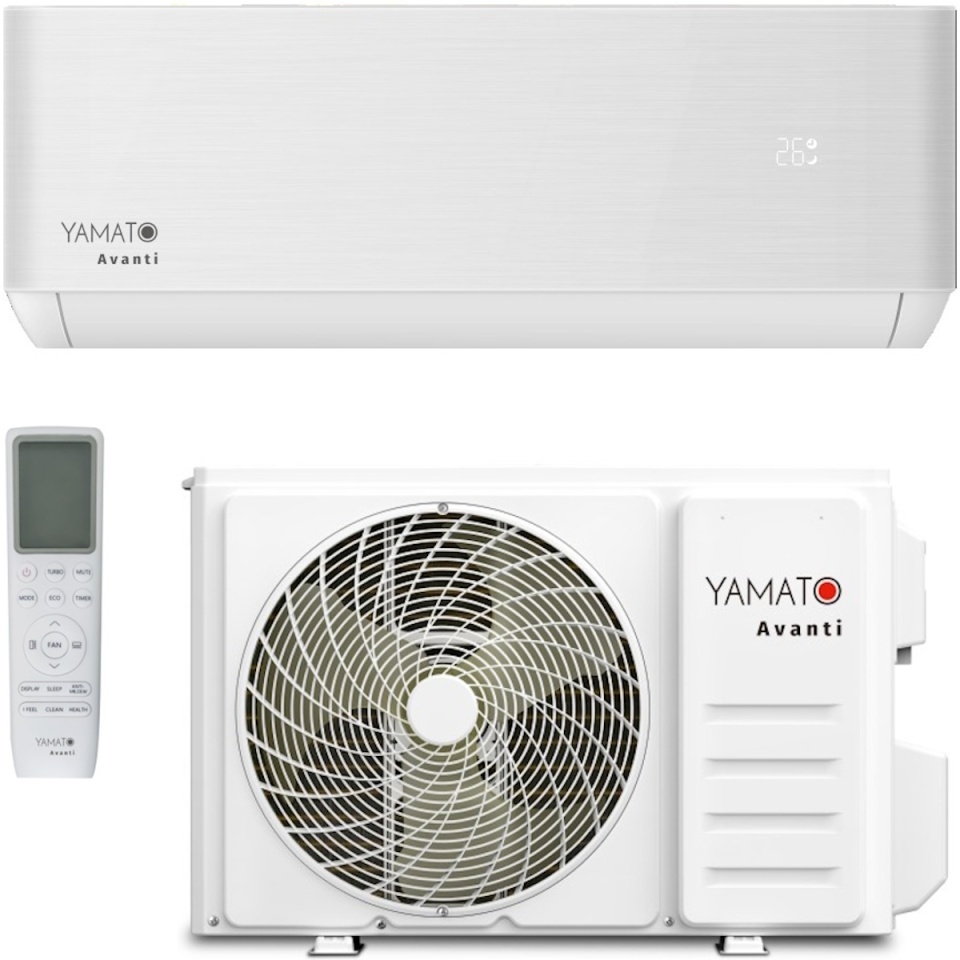

Air conditioner Yamato Avanti YW18T3 18000 BTU/h with Installing Kit

The Avanti range benefits from the latest technologies in the field of air conditioning: UV-C sterilization, BIG ion generator and rapid cooling.

BIG ion generator (Bipolar Ionic Generator)
The integrated BIG generator ionizes the air and generates a large amount of plasma, atoms and strongly oxidizing substances, which destroy bacteria and viruses. Together with the additional air filter, it contributes significantly to improving air quality.

UV-C lamp
The UV-C lamp, located on the evaporator of the indoor unit, emits, safely for the user, UV radiation (240nm-280nm) that affects and destroys the DNA of bacteria, ensuring the sterilization of the evaporator and the air passing through it.

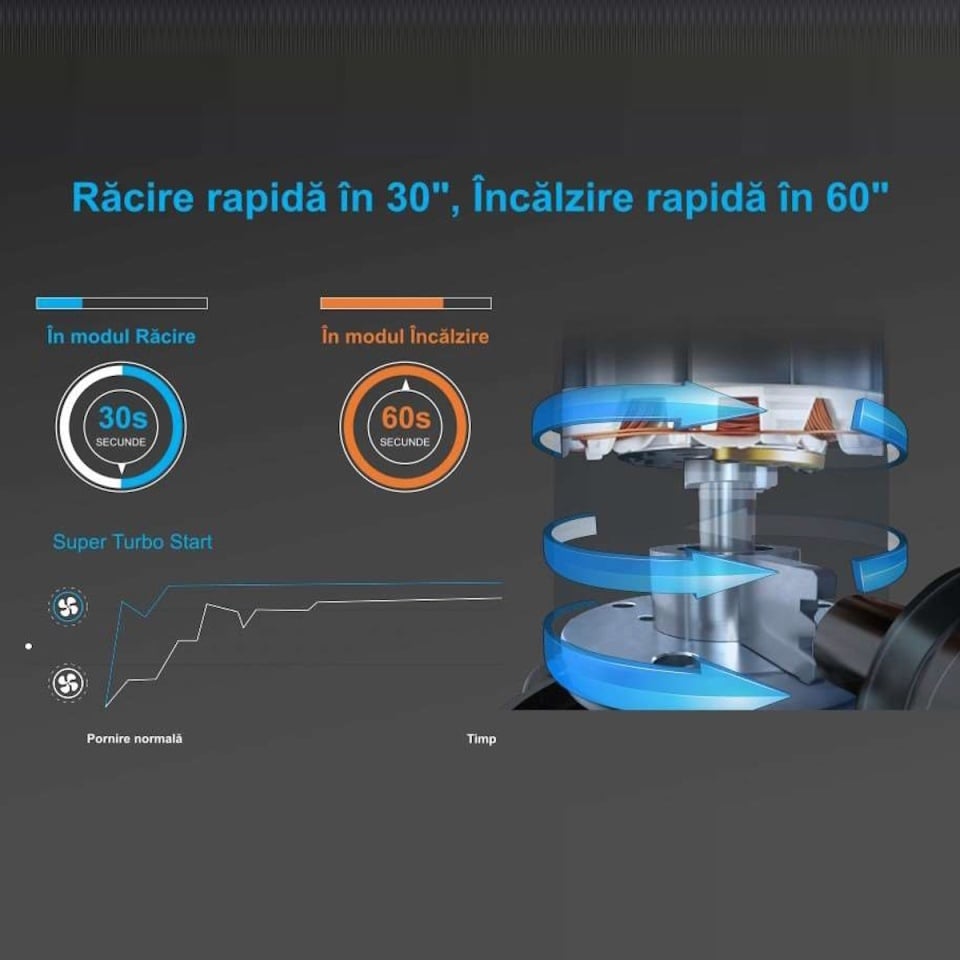

Rapid Cooling/Heating
The advanced technology allows the air conditioner to start at a high frequency of 100 Hz, so that the exhaust air temperature reaches 17oC in 30s, in cooling mode, and 40oC in 60s, in heating mode.

Wi-Fi control
With the Wi-Fi function, after connecting the device to the Internet, you can control it remotely using the SmartLife-SmartHome app and a smart mobile device. The Wi-Fi module does not require installation, being already integrated in the indoor unit.

Double filtering
Primary filtration is provided by the washable high-density air filter, easy to sanitize due to easy access and removal. The additional filter contributes to the improvement of air quality, both through the secondary filtration of fine particles, as well as due to its anti-bacterial properties.

Starting over a wide range of voltages
The air conditioner can work in the range of 165 - 265V, under unstable or too low voltage conditions. For increased safety in use and improved aesthetics of the serviced space, the power supply is made through the outdoor unit.

Corrosion resistant housing
The metal housing and condenser of the outdoor unit retain their appearance and functionality for a long time, thanks to the applied anti-corrosion protection layers.

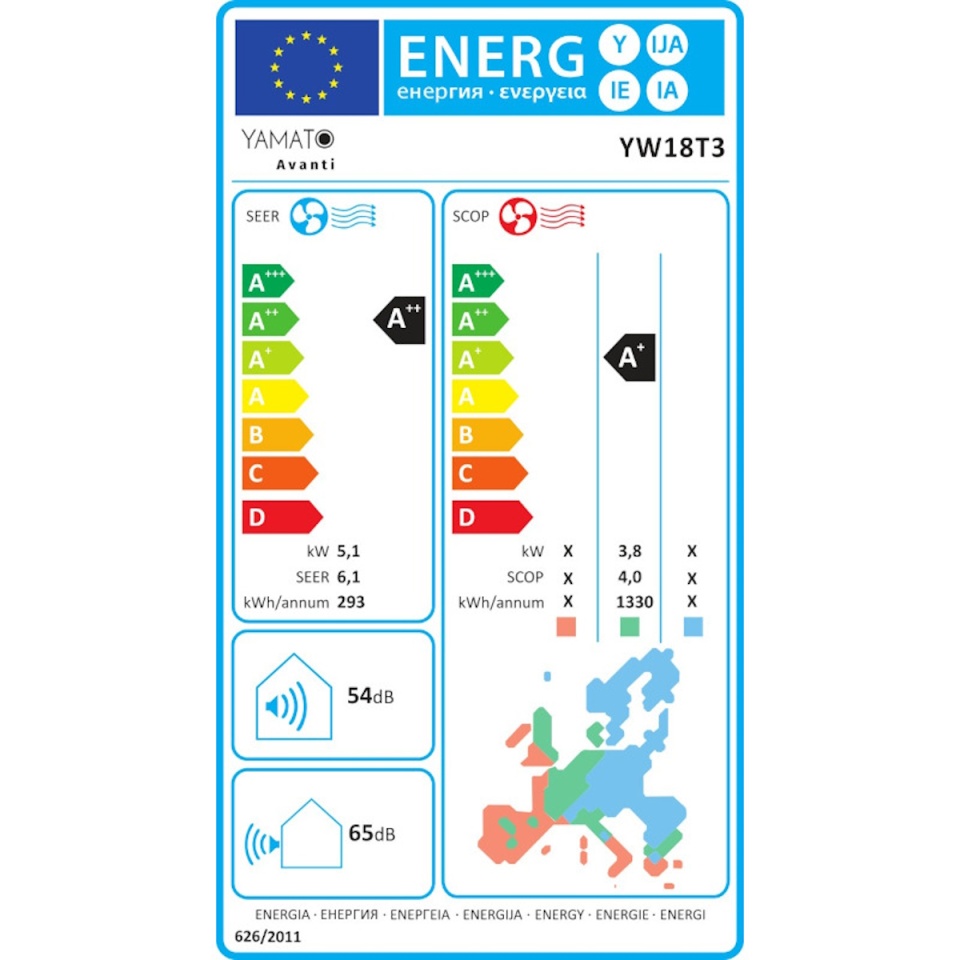

DC Inverter, SEER A++/ SCOP A+
DC Inverter technology allows for voltage and current control, for efficient, low-energy, and quieter operation by reducing vibration. The speed of the compressor varies, ensuring both maintaining, with high precision, the set temperature and saving energy.

Installation kit included
For all capacities, the appliances include the installation kit containing 3m of pipe, 4.3m of cable, condensate drain tube (2x2m), matting tape, insulation and wall hole sealant.

Sleep
The function provides optimization during sleep by automatically adjusting the temperature curve to increase user comfort while saving energy.

Clean & Mildew
By activating the Clean function, you can start the self-cleaning cycle in 4 steps: quick freezing, defrosting, drying and high temperature sterilization of the evaporator. To prevent mold, use the Mildew function, which dries the internal parts of the indoor unit by continuing to run the fan for 15 minutes after the unit is turned off.

Eco
In Eco mode, the device reaches the set temperature in the shortest time, then operates at a reduced frequency, maintaining the set temperature, and at the same time reducing energy consumption.

I Feel

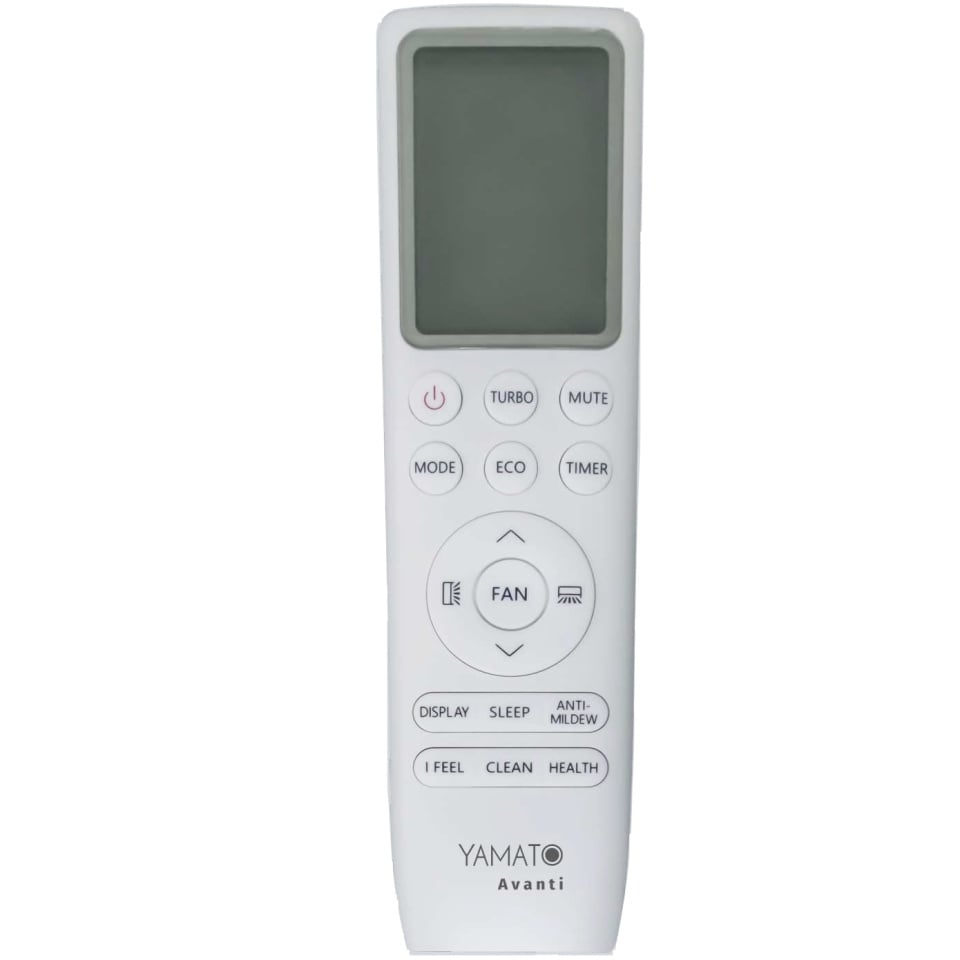

The I Feel function automatically optimizes the operation of the air conditioner, by detecting the ambient temperature, with the help of the sensor in the remote control, and adjusting the temperature of the air released into the room.

Golden Fin protection coating
The condenser and evaporator benefit from the Golden Fin coating, which, in addition to superior anti-corrosive properties, thanks to the hydrophilic layer, prevents condensation and the accumulation of dust, dirt and bacteria.

56oC - Self-cleaning with high temperature sterilization
You can periodically activate an automatic cleaning cycle, which consists of quick freezing, then defrosting the evaporator, drying it, followed by a sterilization step at a temperature of 56oC. Thanks to this function, perfected by adding the sterilization step, the bacteria removal rate on the evaporator is over 93.18%.

7-speed fan
When setting the fan speed of the indoor unit, in the chosen operating mode, you can choose between the 5 available speeds, to which are added the Turbo operating modes (operation at the maximum speed of the fan, to reach the desired temperature in the shortest time) and Mute (operation at the lowest noise level, in the minimum fan speed step, for optimal comfort in silence).

Yamato Avanti T3 air conditioner technical data

Capacitate racire 4265/17401/20131 BTU/h (min/nom/max)
Capacitate incalzire 4265/17504/20745 BTU/h (min/nom/max)
Alimentare 1 Ph-220V-240V-50Hz
Coeficient randament sezonier la racire SEER 6.10
Coeficient randament sezonier la incalzire SCOP 4.00
Eficienta energetica racire A++
Eficienta energetica incalzire A+
Putere consumata racire 330/1574/2350 W (min/nom/max)
Putere consumata incalzire 340/1382/2550 W (min/nom/max)
Domeniu temperatura exterioara de functionare pe racire -15°C ~ 53°C
Domeniu temperatura exterioara de functionare pe incalzire -20°C ~ 30°C
Curent nominal racire 8.2 A
Curent nominal incalzire 7.2 A

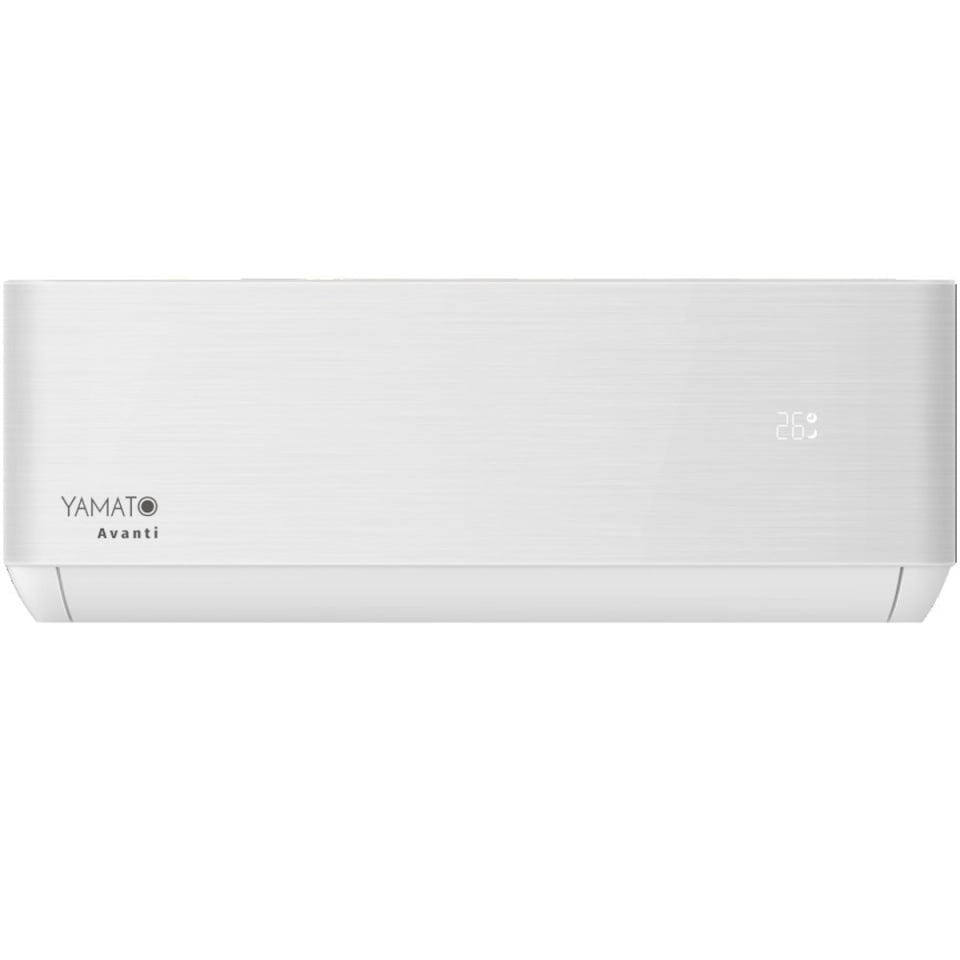

Unitate interioara

Debit de aer unitate interna 820 m³/h
Nivel de presiune acustica 43 / 41 / 38 / 35 / 27 dB(A) ( T / H / M / L / S)
Nivel de putere acustica 54 / 50 / 47 / 43 / 36 dB(A) ( T / H / M / L / S)
Dimensiune neta unitate interioara 920x195x306 mm
Greutate neta/bruta unitate interioara 11.0 / 13.0 kg

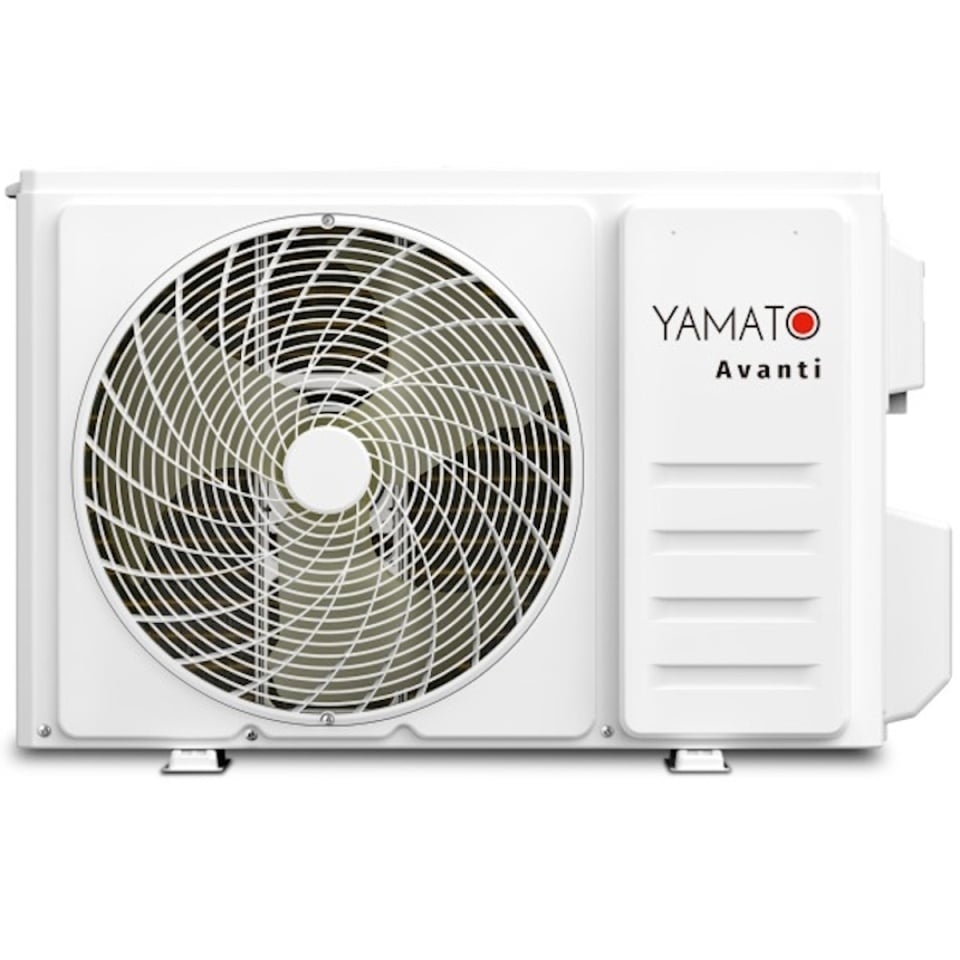

Unitate exterioara

Nivel de presiune acustica 55 dB(A)
Nivel de putere acustica 65 dB(A)
Dimensiune neta unitate exterioara 853x349x602 mm
Greutate neta/bruta unitate exterioara 31.0 / 36.0 kg
Traseu frigorific

Diametru 6.00 / 9.52 mm (lichid/gaz)
Lungime maxima 25 m
Diferenta maxima de nivel 10 m
