Air conditioner Eco ASEG18KLCA 18000

Description

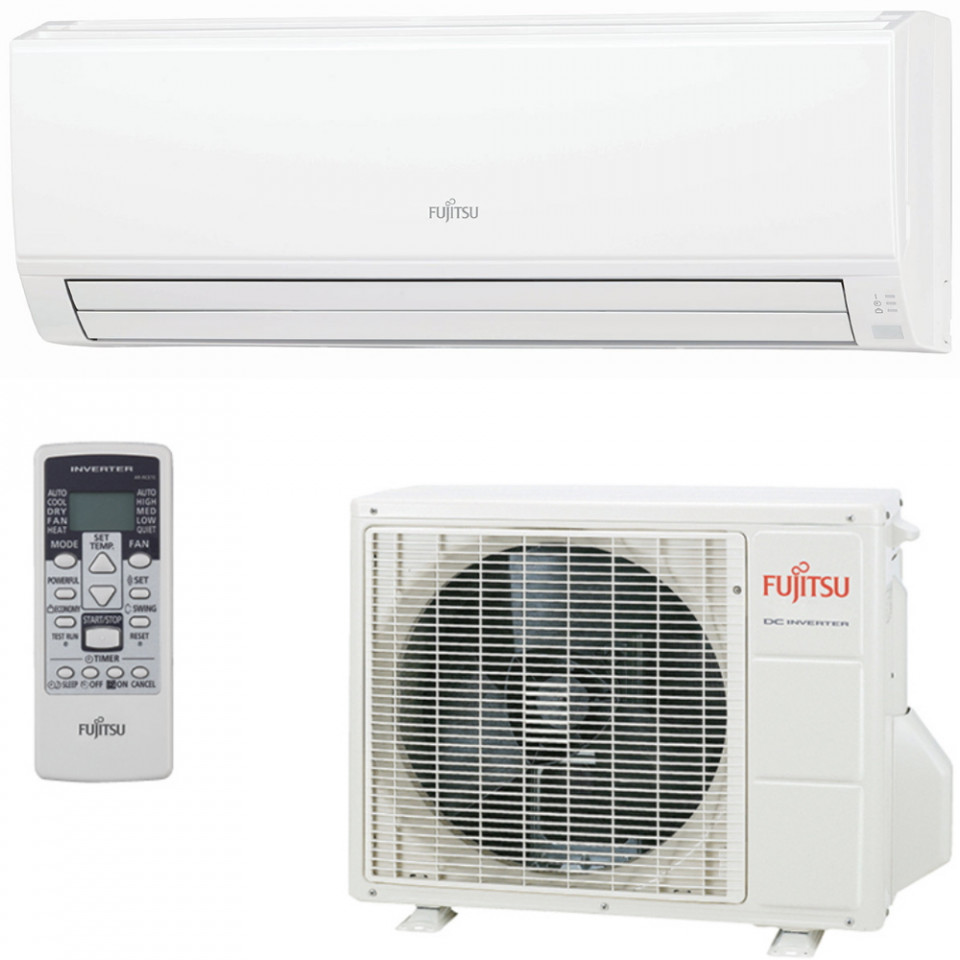

Wall mounted split Air conditioner Fujitsu Eco

ASEG18KLCA-AOEG18KLCA 18000 BTU/h

• Narrow width & Compact Design
• ON-OFF Programmable timer
• Powerful operation
• Economy operation
• Low ambient operation.

Power supply 230 V AC

General capacity 18000 BTU / h

Cooling capacity 17743 BTU / h

Heating capacity 21496 BTU / h

Electric cooling power 1,685 kW

Electric heating power 1.80 kW

SEER 7.20 W / W

SCOP 4.30 W / W

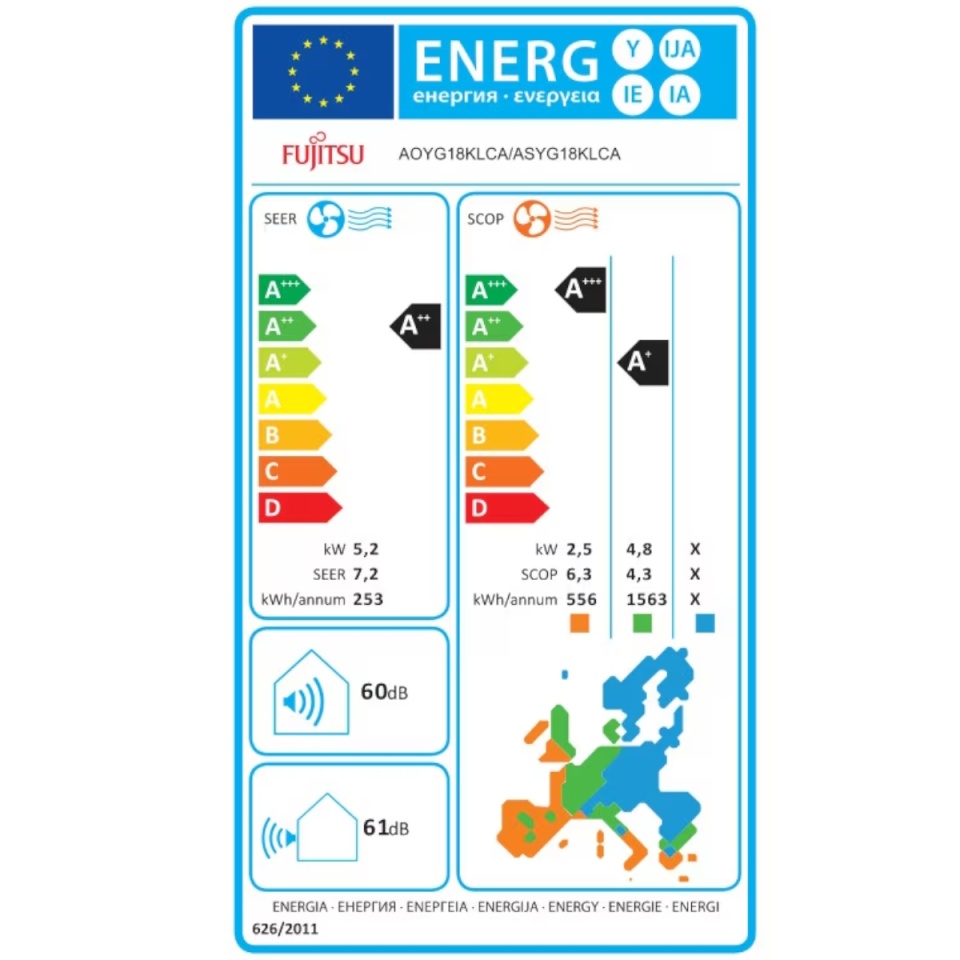

Energy efficient cooling class A ++

Energy efficient heating class A +

Nominal cooling consumption 9.5 A

Nominal heating consumption 13.5 A

Dehumidification capacity 1.9 L / h

Sound pressure level indoor unit cooling 47/44/40/35 dB (A)

Sound pressure level indoor unit heating 50/45/41/37 dB (A)

Acoustic power level indoor unit cooling 60 dB (A)

Acoustic power level indoor unit heating 65 dB (A)

Indoor unit airflow 865 m3 / h

Outdoor unit airflow 1830 m3 / h

Net size indoor unit 790x293x249 mm LxWxH

Net size outdoor unit 542 x799x290 mm LxWxH

Net weight indoor unit 9.5 Kg

Net weight of the outdoor unit 33 Kg

Liquid refrigeration path diameter 6.35 mm

Gas refrigeration path diameter 9.52 mm

Maximum length of the refrigeration path 25 m

Maximum difference in refrigeration route level 20 m

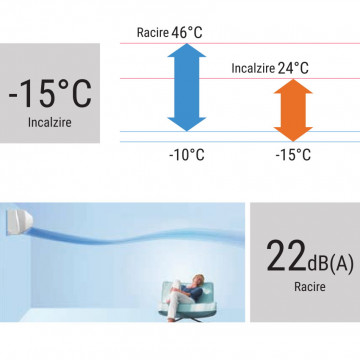

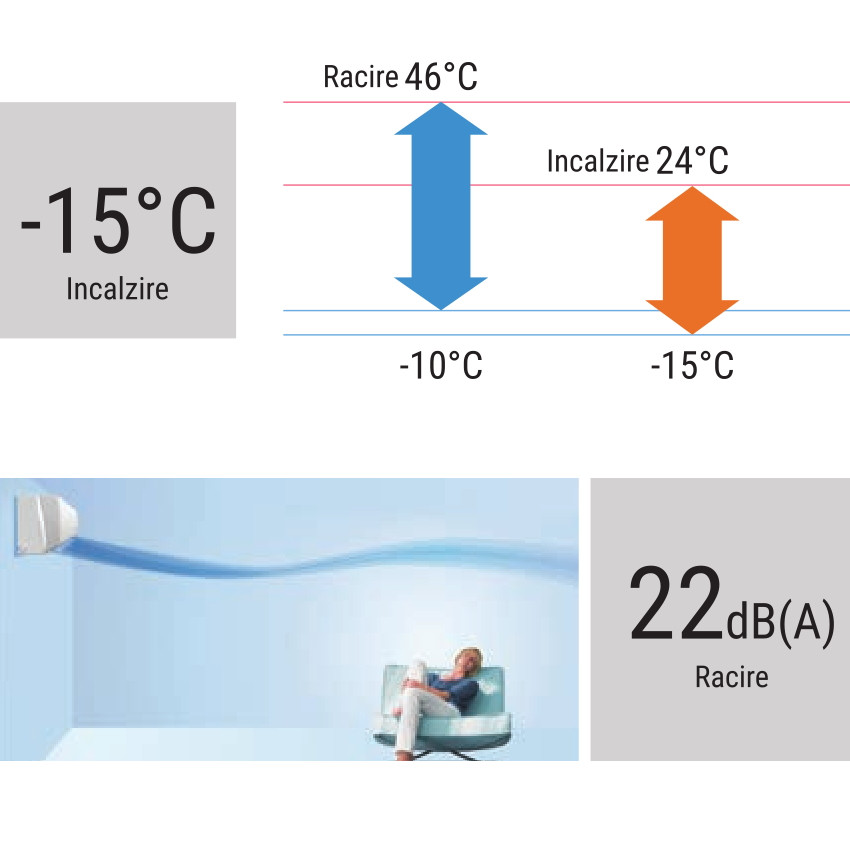

Outdoor operating temperature range (min-max) cooling -10 / 46 CDB

Outdoor operating temperature range (min-max) heating -15 / 24 CDB

refrigerate R32
