Air conditioner Eco ASEG24KLCA 24000

Description

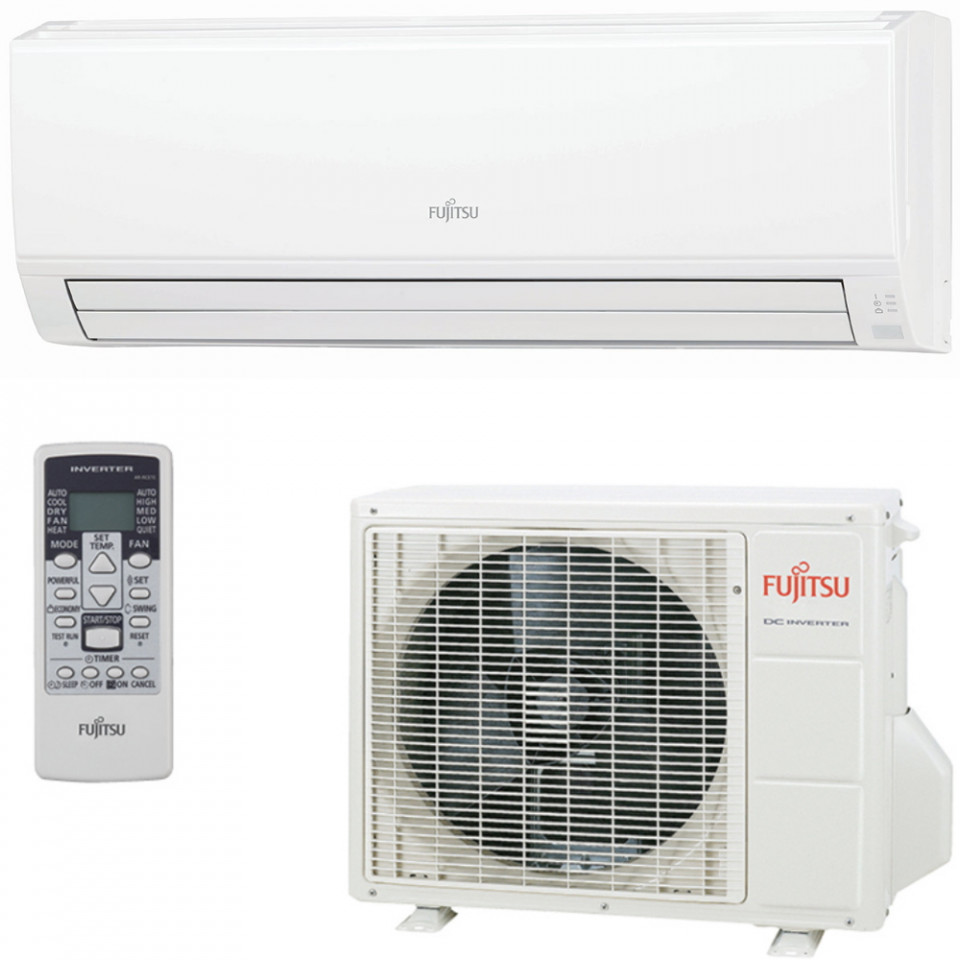

Wall mounted split Air conditioner Fujitsu Eco

ASEG24KLCA-AOEG24KLCA 24000 BTU/h

• Narrow width & Compact Design
• ON-OFF Programmable timer
• Powerful operation
• Economy operation
• Low ambient operation.

Power supply 230 V AC

General capacity 24000 BTU / h

Cooling capacity 24226 BTU / h

Heating capacity 27297 BTU / h

Electric cooling power 2.42 kW

Electric heating power 2,225 kW

SEER 7.10 W / W

SCOP 4.00 W / W

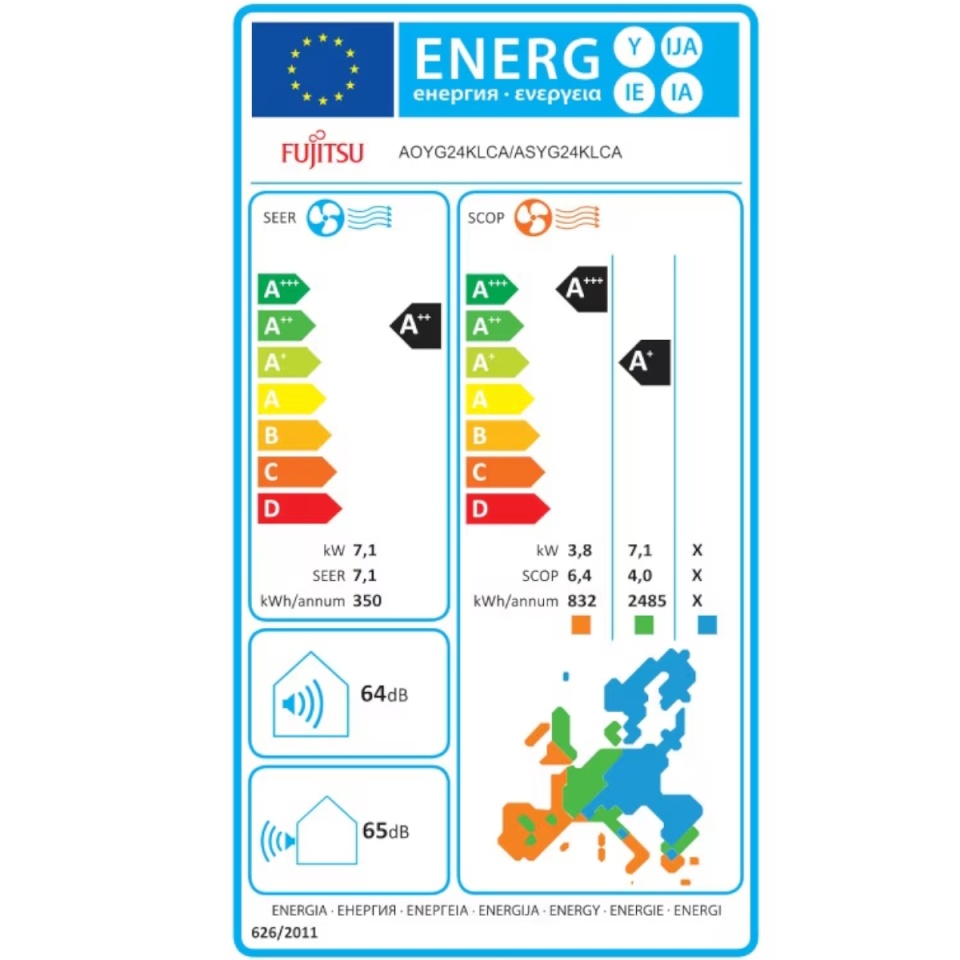

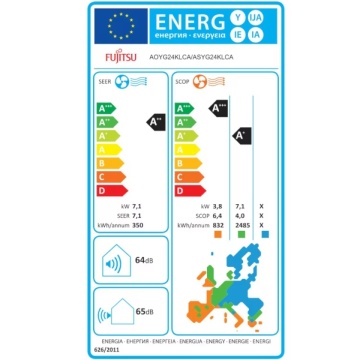

Energy efficient cooling class A ++

Energy efficient heating class A +

Nominal cooling consumption 13.5 A

Nominal heating consumption 17.5 A

Dehumidification capacity 3.1 L / h

Sound pressure level indoor unit cooling 51/45/38/33 dB (A)

Sound pressure level indoor unit heating 52/45/41/37 dB (A)

Acoustic power level indoor unit cooling 64 dB (A)

Acoustic power level indoor unit heating 65 dB (A)

Indoor unit airflow 1040 m3 / h

Outdoor unit airflow 2885 dB (A)

Net size indoor unit 790x293x249 mm LxWxH

Net size outdoor unit 632x799x290 mm LxWxH

Net weight indoor unit 10 Kg

Net weight of the outdoor unit 38 Kg

Liquid refrigeration path diameter 6.35 mm

Gas refrigeration path diameter 12.70 mm

Maximum length of the refrigeration path 30 m

Maximum difference in refrigeration route level 25 m

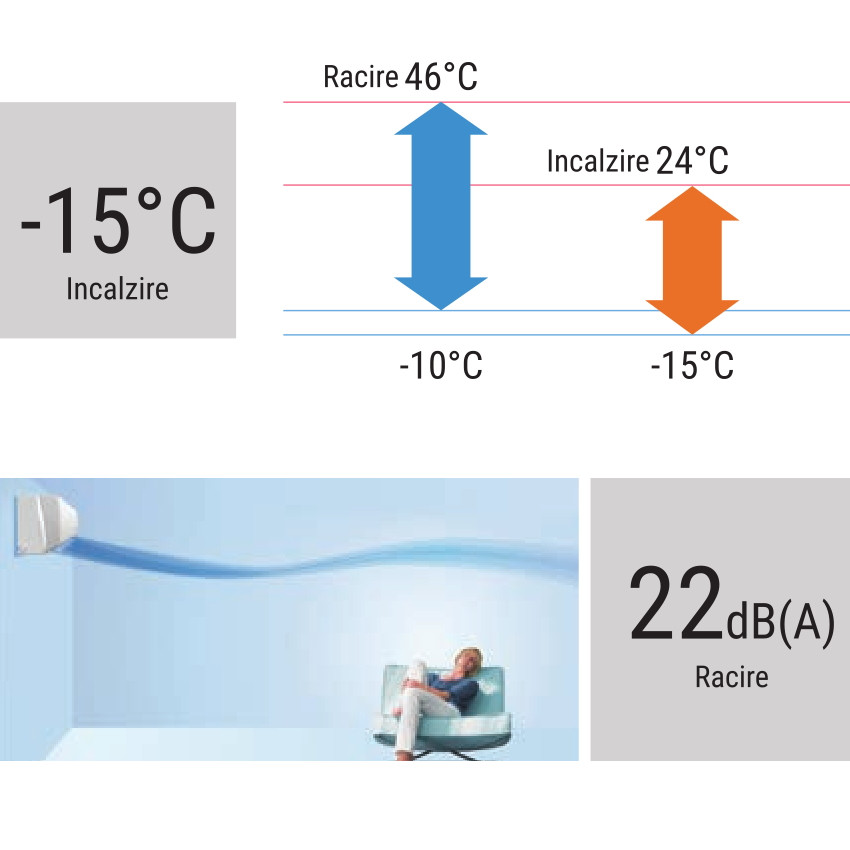

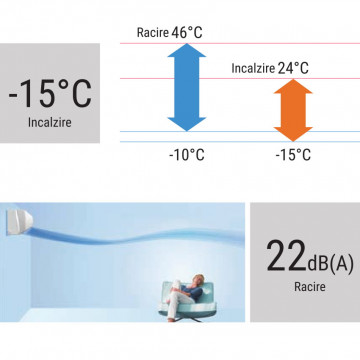

Outdoor operating temperature range (min-max) cooling -10 / 46 CDB

Outdoor operating temperature range (min-max) heating -15 / 24 CDB

refrigerate R32
