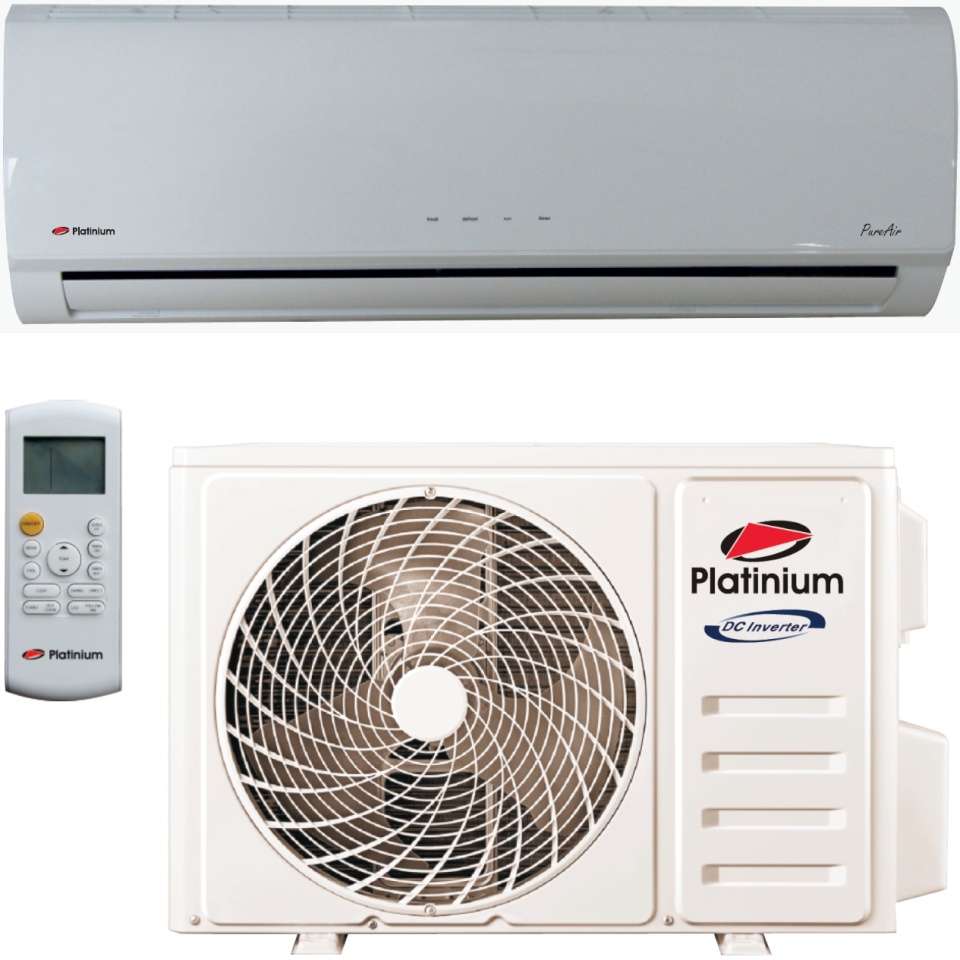

Air conditioner PureAir PX-12R32 12000 BTU/h including Mounting Kit

Description

Air conditioner Platinium PureAir PX-12R32 12000 BTU/h Ionizer including Mounting Kit

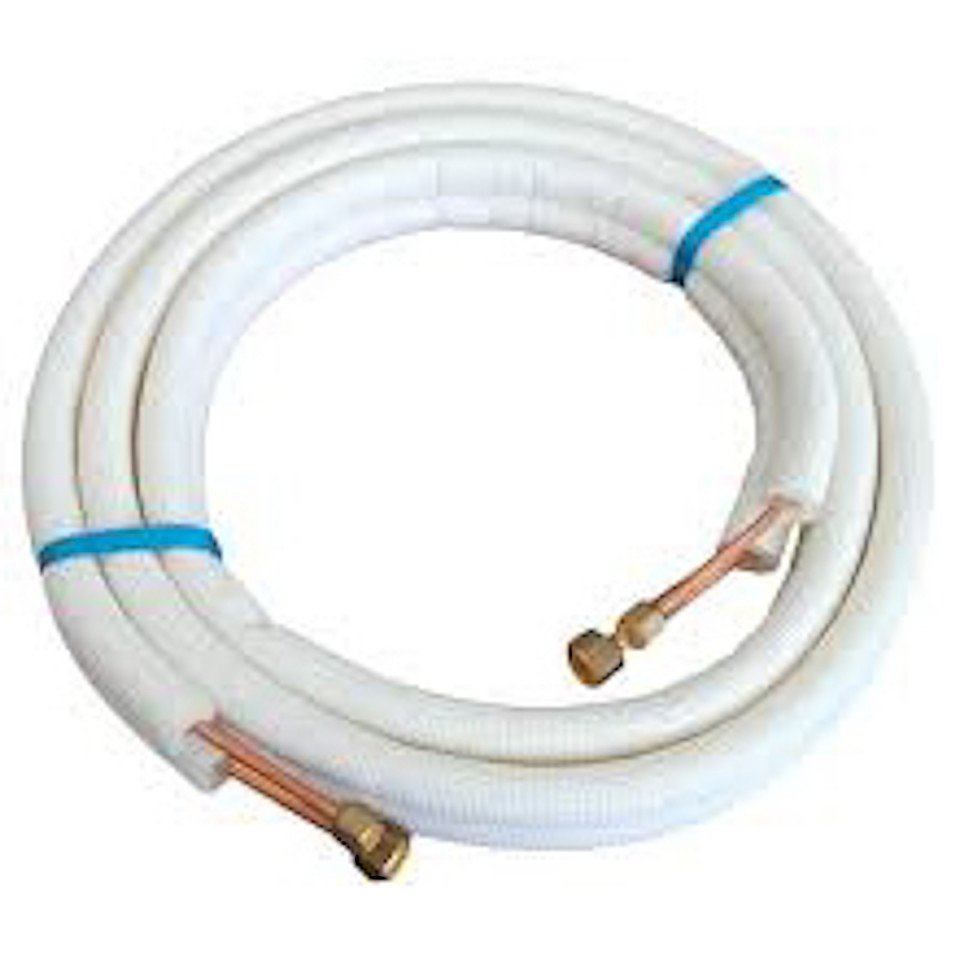

Air conditioner with WiFi including installation kit

REFRIGERANT LEAKAGE DETECTION
The unit detects refrigerant losses, an EC message will appear on the display of the internal unit and the equipment will stop.This function also protects the compressor from failure.

LOW AMBIENT COOLING
A special system controls the fan of the outdoor unit, making it possible for heat exchange in cooling mode to take place in optimal conditions even at temperatures of up to -15 degrees C.

LOUVER POSITION MEMORY
The air conditioning equipment remembers the recent settings of the blade and returns to the same position every time it is turned on.

HIGH DENSITY FILTERS 1.2x1.2 mm
High density filters are much more efficient compared to standard filters. They can filter up to 80% of pollutants such as: dust, pollen or allergens, leaving the air clean and fresh.

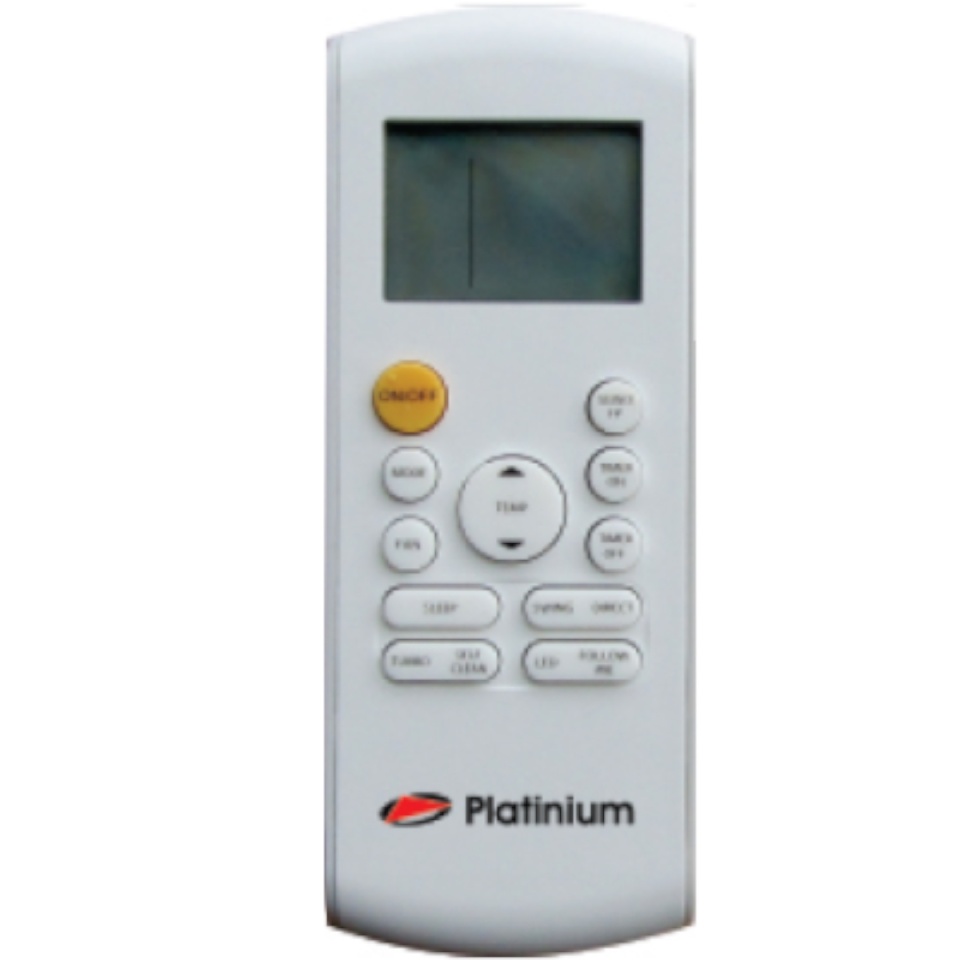

Follow me sensitive cooling
Keep the remote control close to you and it will measure the temperature nearby, adjusting the operation of the air conditioner to ensure the desired comfort in cooling mode.

Catalyst Filter
A special catalytic filter removes formaldehyde and other organic compounds from the air.

Display
The device benefits from a modern display with hidden LED on which you can see both the temperature and the errors that appear.
This can be disabled

1 W standby
In Standby mode, by disconnecting from unused electronic components, the electricity consumption is limited to only 1 W. Compared to conventional devices that consume up to 5 W in standby, you benefit from a consumption reduction of up to 80%.

Auto Restart
In case of an accidental power cut, the device records the recent settings and restores them automatically when the electricity returns.

Manual Switch
You can easily turn the air conditioner on or off without using the remote control or any other tool, by pressing the built-in on/off button.

3D Airflow
By using the automatic vertical sweeping function as well as by manually guiding the fins horizontally,
the best possible distribution is obtained throughout the room for your comfort.

Turbo Mode
By activating this function, the fan starts automatically at maximum speed to cool or heat the room as quickly as possible

Anti-cold Air Function
Starting the device and the fan speed in heating mode depends on the temperature of the vaporizer from the unit
interior. This can prevent cold air venting, leading to the avoidance of cold air discomfort.

5 Outdoor Unit Fan Speeds
Applying an INVERTER motor to the fan of the outdoor unit increases the number of speeds available from 2 to 5, which has a strong impact in reducing noise and energy consumption.

Technical data Air conditioner Zephir ZE-R32 Inz
Power supply 220-240 V, 1 Ph, 50 Hz
Cooling Capacity 12000 (3800~14200) BTU/h
Power consumed in cooling mode 1213 (130~1580) W
Current in cooling mode 5.27( 0.5~6.9) A
Heating capacity 13000 (3700~14400) BTU/h
Power consumed in heating mode 1088 (100~1680) W
Current in heating mode 4.73 (0.4~6.9) A

Pdesignc 3.5 kW
SEER 6.5 W/W
Energy efficiency class A++

Pdesignh 2.8 kW
PURPOSE 4.1 W/W
Energy efficiency class A+

Minimum operating temperature -15oC
Dehumidification 2.00 liters/h
Maximum power consumption 2150 W
Maximum current 10 A
Compressor Brand GMCC Toshiba

Indoor unit
Internal air flow (Hi/Mi/Lo) 540/430/314 m3/h
Indoor unit sound level (sound pressure) (Hi/Mi/Lo) 40.5/34.5/25 dB(A)
Indoor unit sound level (sound power) 55.0 dB(A)
Net dimensions (L*W*H) 805x194x285 mm
Gross dimensions (L*W*H) 870x270x365 mm
Net/Gross Weight 7.3/9.5 kg

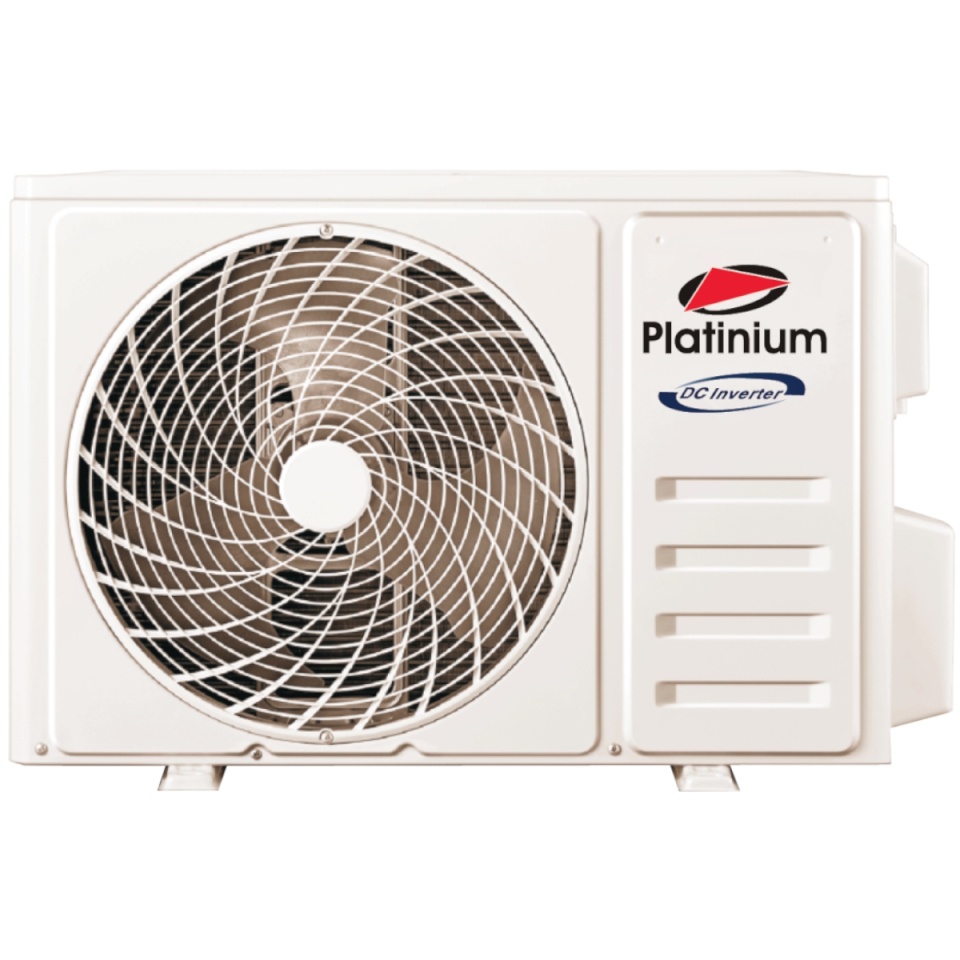

Outdoor unit
Outdoor unit air flow 1750 m3/h
External unit sound level (sound pressure) 55 dB(A)
External unit sound level (sound power) 64.0 dB(A)
Net dimensions (L*W*H) 720x270x495 mm
Gross dimensions (L*W*H) 835x300x540 mm
Net/Gross Weight 21/22.8 kg

Refrigerant Type R32
GWP 675
Loaded quantity 0.52 kg
Design pressure 4.3/1.7 MPa
Refrigerant Pipes Liquid/Gas mm (inch) 6.35mm(1/4")/9.52mm(3/8")
Maximum length 25 m
Maximum level difference 10 m
Cable between units (not included) 1.5x5 mm2
Power supply (not included) 3*1.5 mm2
Indoor working temperatures (cooling/heating) 17~32/0~30oC
Outside (cooling/heating) C -15~50/-15~30oC
Covered area (In cooling mode) 16~23 m2.
