Air to Water Heat Pump Nimbus Compact 150 M-T Net R32 180l

Description

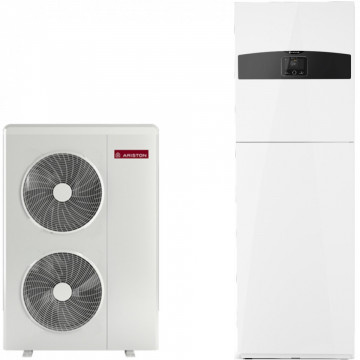

Air to Water Heat Pump Ariston Nimbus Compact 150 M-T Net R32 180 liters

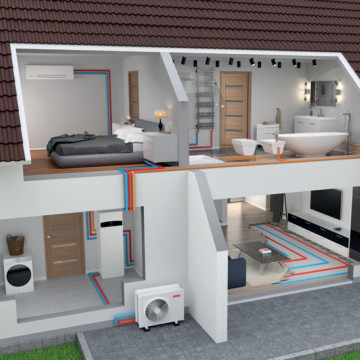

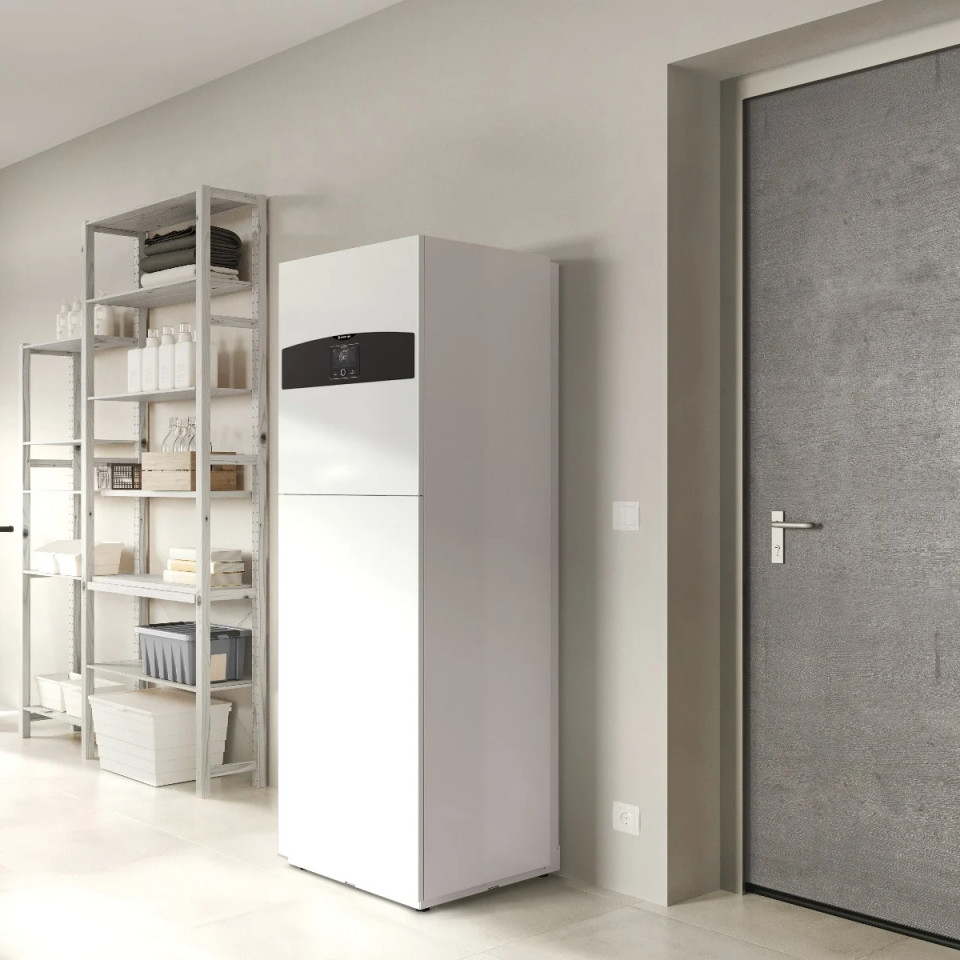

The air to water heat pump NIMBUS COMPACT M-T NET R32 is the cutting edge Ariston solution for heating, cooling and DHW: the perfect fit for a single-family house or apartment with limited space, thanks to the compact internal unit with all key components inside.

The refrigerant gas is R32, which flows in the pipes between outdoor and indoor unit of the heat pump and ensures a low Global Warming Potential.

Thanks to the A+++ efficiency class, the heat pump is able to heat and cool the environment and heat up domestic hot water with maximum efficiency, even in cold weather situations.

Connectivity is embedded to grant remote control and even remote assistance from technical service center (optional).

Specifications

• Monobloc version
• Refrigerant gas R32
• High efficiency in cold climates
• Low noise

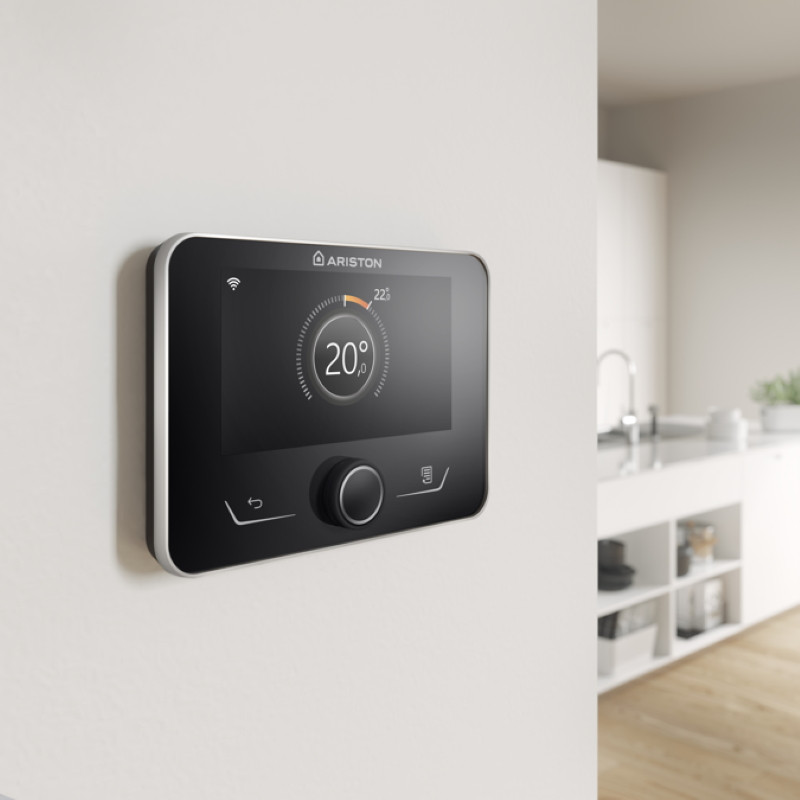

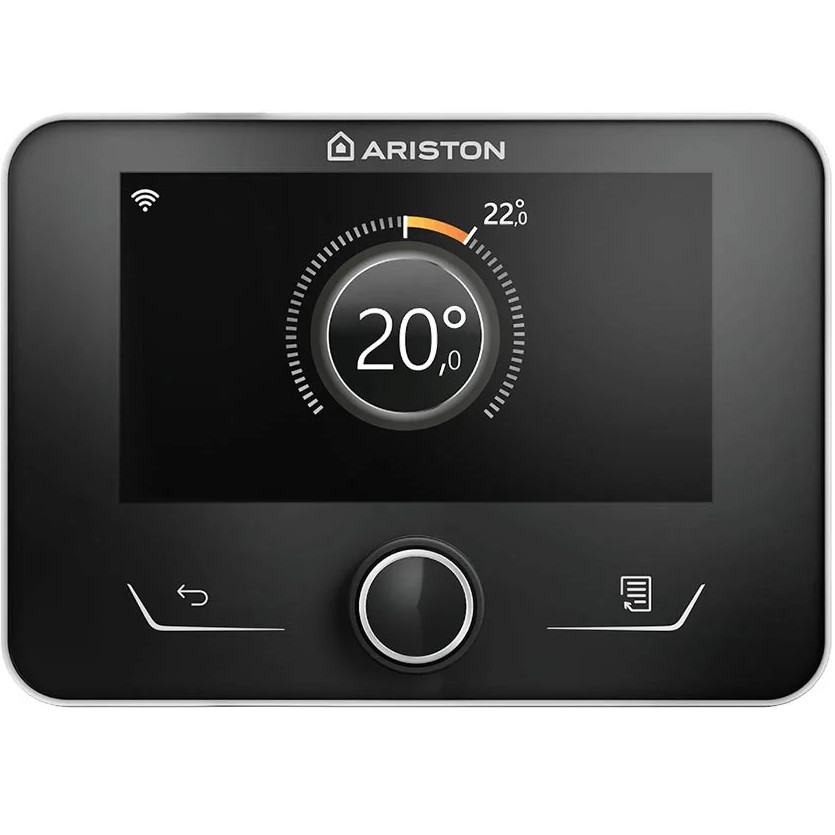

• Sensys HD included and embeddable in frontal panel

• Easy accessibility to all internal components
• Easy installation and set-up with a wide range of accessories
• Magnetic filter embedded
• Expansion vessel 12 lt embedded
• PV function
• Connectivity embedded
• Remote control thanks to Ariston NET app

Specifications

Nominal power Heating at +7/35°C: 15 kW
COP at +7/35°C: 4.7
Nominal power Heating at -7/35°C: 11 kW
COP at -7/35°C: 3.1
Maximum heating capacity at -7/55°C: kW
Operating temperature range Heating - Air min/max -20/35°C
Cooling operation temperature range - Water min/max 20/60°C

Nominal power Cooling at 35/18°C: 12.5 kW
EER at 35/18°C: 4.7
Nominal power Cooling at 35/7°C: 11 kW
EER at 35/7°C: 2.9
Cooling operating temperature range - Air min/max 10/43°C
Cooling operation temperature range - Water min/max 5/23°C

Technical data Domestic hot water:

Loading profile: L. Boiler volume 180 liters. Boiler heating time: 50 min. COP in sanitary regime: 3.10

Maximum usable volume of DHW: 233 liters

ErP technical data, Medium climate:

Seasonal energy efficiency at 55°/35°C: 151%
Class ErP Heating at 55°/35°C: A+++ / A+++
Sound power level, outside 58 dB(A). Indoor sound power: 37 dB(A)

Dimensions Outdoor unit 1016x1506x380 mm. Weight 131 kg.

Dimensions Indoor unit 600x1820x612. Weight 134 kg

Refrigerant R32
Min/mx length of cooling circuit: 5 / 30 m. Maximum difference in level: 10 m.
Additional refrigerant charge: 40 g/m. Liquid/gas refrigeration line connection 3/8" 5/8"

Installation of heating and domestic hot water circuits:

Minimum/nominal water flow: 1050 / 1400 liters/h

Heating and ACM connections: 1"

Electrical resistance: 6 (2+2+2) kW

Power supply Outdoor unit 3~400 V, 50 Hz
Electric fuse 10 A C-13
Power cable H07RN-F > 5x 2.5 mm². Connecting cable EU-UI HR05RN-F2 0.75 mm²

Power supply Indoor unit 3~400 V, 50 Hz
Electric fuse 10 A / Type C-16
Power cable HR07RN-F3 5x 2.5 mm².

Recommended accessories:
3024383 Condensate drain tray (ext. unit)
3319087 Anti-freeze resistance outdoor unit
3318771 Exogel kit
3078152 Flexible pipe kit 3 M-M
3060713 Buffer CKZ 50 H
3078102 VIBRATION DAMPERS (outdoor unit) 4 pcs.
