Air-to-Water Heat Pump Nimbus Pocket 120 M Net R32

Description

Air-to-Water Heat Pump Ariston Nimbus Pocket 120 M Net R32

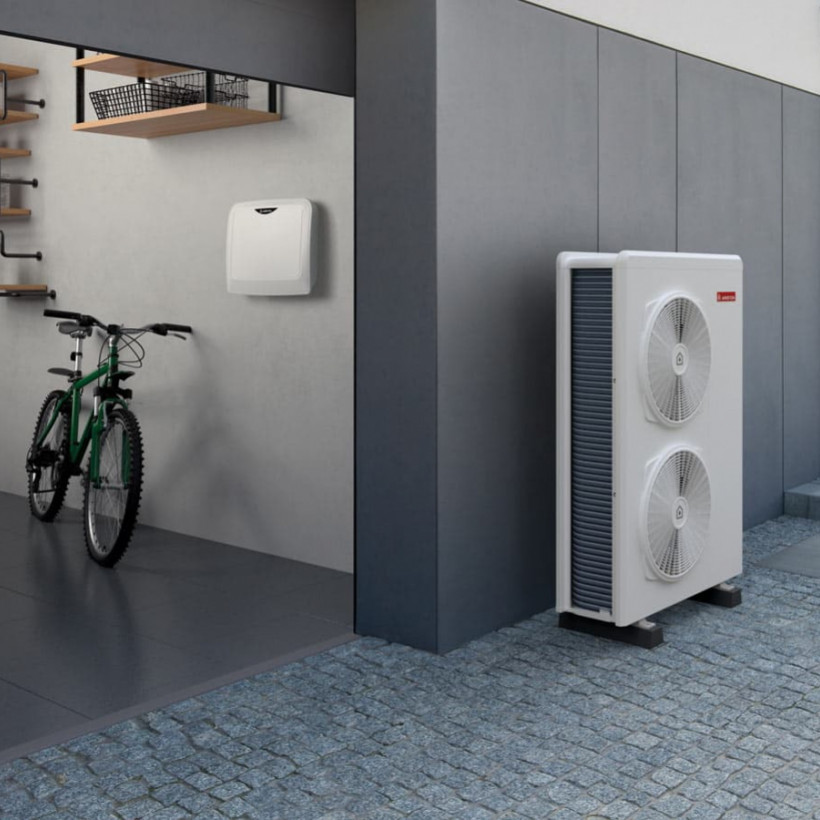

The air to water heat pump NIMBUS POCKET M NET R32 is the cutting edge Ariston solution for heating and cooling: it can be fully installed outdoor with the possibility to operate in conjunction with other heating and water heating products (e.g. heat pump water heater for DHW).

The refrigerant gas R32 is present just in the external unit of the heat pump and ensures a low Global Warming Potential. The system water flows from the external unit directly to the system.

Thanks to the A+++ efficiency class, the heat pump is able to heat and cool the environmen with the maximum efficiency, even in cold weather situations.

Connectivity is embedded to grant remote control and even remote assistance from technical service center (optional).

• Refrigerant gas R32
• High efficiency in cold climates
• Low noise

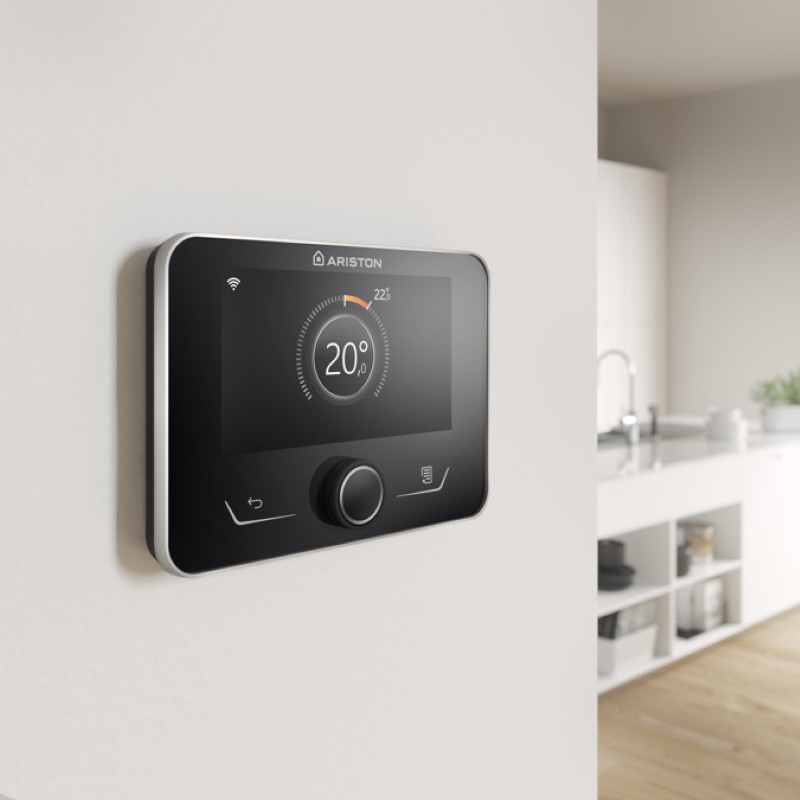

• Sensys HD included and embeddable in frontal panel

• Easy accessibility to all internal components
• Easy installation and set-up with a wide range of accessories
• Magnetic filter embedded
• Expansion vessel 12 lt embedded
• PV function
• Connectivity embedded
• Remote control thanks to Ariston NET app

Technical data

Nominal heating power at +7/35°C: 12 kW
COP at +7/35°C: 4.9
Nominal power Heating at -7/35°C: 10.2 kW
COP at -7/35°C: 3.5
Maximum heating capacity at -7/55°C: 10.4 kW
Operating temperature range Heating - Air min/max -20/35°C
Cooling operation temperature range - Water min/max 20/60°C

Nominal power Cooling at 35/18°C: 10.7 kW
EER at 35/18°C: 5.1
Nominal power Cooling at 35/7°C: 9.1 kW
EER at 35/7°C: 3.2
Cooling operating temperature range - Air min/max 10/43°C
Cooling operation temperature range - Water min/max 5/23°C

ErP technical data, Medium climate:

Reference heating capacity at 55°/35°C: 9.4 / 10.8 kW
Seasonal energy efficiency at 55°/35°C: 143 / 204%
ErP class Heating at 55°/35°C: A++ / A+++
Sound power level, outside 58 dB(A). Indoor sound power: 35 dB(A)

DIMENSIONS 1016x1506x380 mm. Weight 124 kg.
Light Box size (interior unit) 376x275x61. Weight 2.5 kg

Refrigerant R32 2.12 kg
Minimum/nominal flow rate: 1580 / 2100 liters/h
Heating connection: 1"

Electrical resistance: 6 (2+2+2) kW

Power supply Outdoor unit 1~230 V, 50 Hz
Electric fuse 32 A
Power cable HR07RN-F3 > 6 mm². Connecting cable EU-UI HR05RN-F2 0.75 mm²

Power supply Indoor unit 230 V, 50 Hz
Electric fuse 16 A
Power cable HR07RN-F3 1.5 mm².

Recommended accessories:
3024383 Condensate drain tray (ext. unit)
3319087 Anti-freeze resistance outdoor unit
3318771 Exogel kit
3078152 Flexible pipe kit 3 M-M
3060712 Buffer CKZ 50 H
3078102 VIBRATION DAMPERS (outdoor unit) 4 pcs.
