Air-to-Water Heat Pump Yutaki Combi S60 16kW 3ph

Description

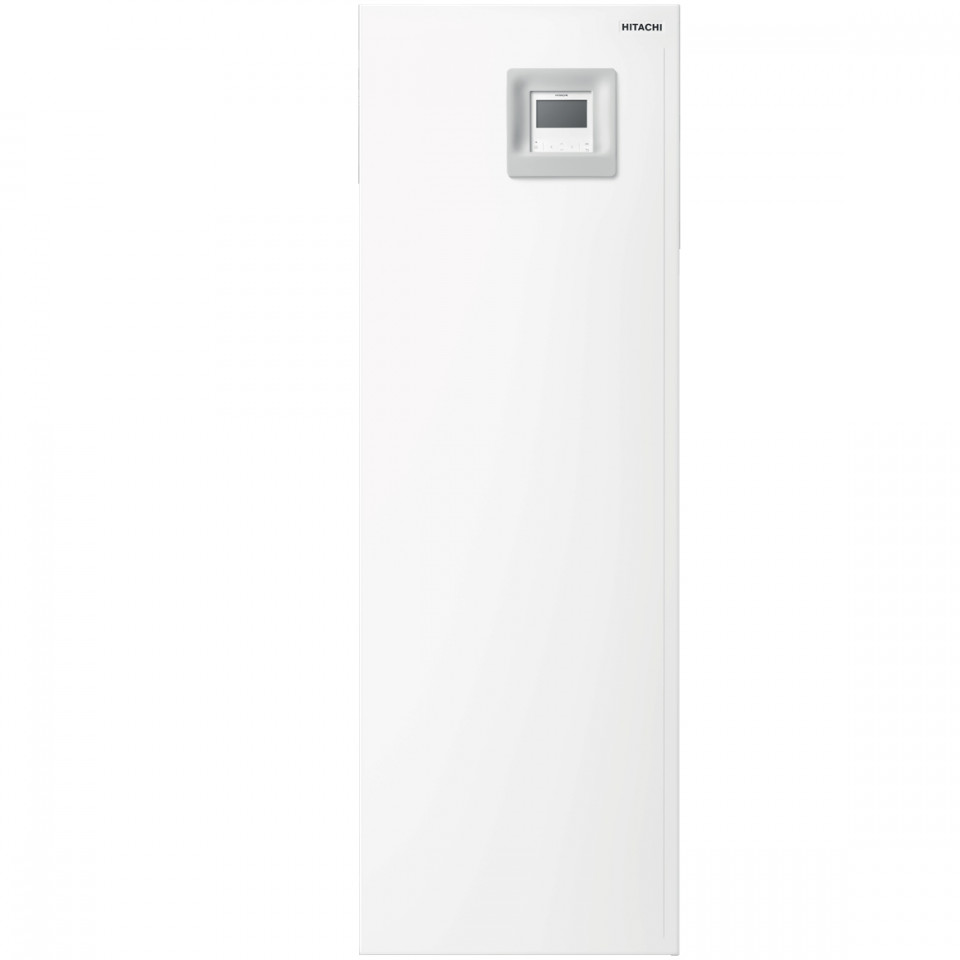

Air-to-Water Heat Pump Hitachi Yutaki Combi S60 16 kW 3 phase

Complete and integrated system: enjoy twice the benefit with our two in one system with space heating and hot water supplied from one unit to ensure complete ease of installation and peace of mind.

High-performance heat pump technology keeps your home at a comfortable temperature even on the coldest days: down to -25c. At the same time, it reduces both domestic power use and CO2 emissions, and is compatible with solar panels.

Intuitive control from anywhere:
The built-in controller has an LCD display and is easy to programme, giving you total control over the system from your utility cupboard; it’s also compatible with wireless thermostats.

The Hi-Kumo app turns your smartphone into a programmable remote control where you can adjust and monitor your heating system from anywhere in the world.

The Yutaki S Combi can be installed in kitchens due to its small size and low noise level.
Integrating the DHW storage tank into the indoor unit frees up as much as 70% more room compared to a separate tank.

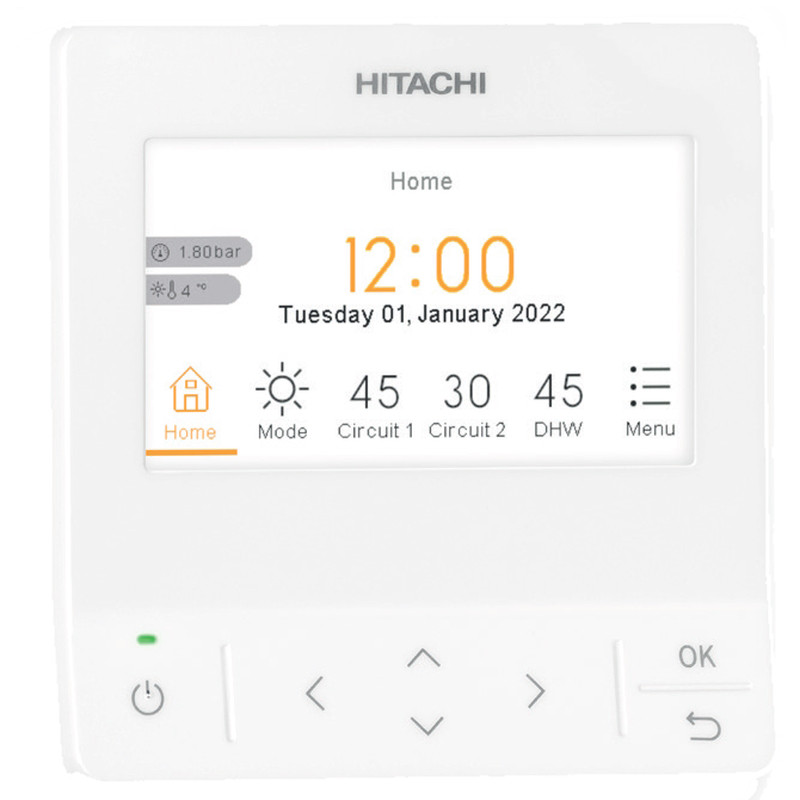

New Remote control included as standard
An intuitive interface that can handle two zones, and features an ambiance sensor to be used as a separate modular thermostat.

Easy to install and maintain
Compared to a system with separate tank, the Yutaki S Combi can be installed in less time and at a lower cost because:
- All water and refrigerant connections are aligned at the top.

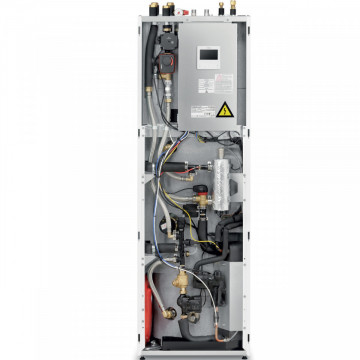

- Most components are accessible from the front.
- Easy access to information from the LCD remote control without having to open the indoor unit.

Stainless steel tank with built-in element
The Yutaki S Combi range comes with an additional electrical heating element. In an emergency, you can activate the DHW BOOST function at the push of a button.

Specifications

Heating performance
Heating capacity min./nom./max. (A7/W35) 5.5 / 16 / 17.8 kW
Heating capacity min./nom./max. (A-7/W35) 12 / 13 kW
Heating capacity min./nom./max. (A-7/W45) 11.5 / 12.5 kW
Heating capacity min./nom./max. (A-7/W55) 10.5 / 12 kW
nominal power input (A7/W35) 3.5 kW
COP (A7/W35) according to EN14511 4.57
Average SCOP 35°C/55°C according to EN14825 3.9 / 3.23
Seasonal energy efficiency for heating ηs (35°C) 1~/3 ~ 153 / 152%
Seasonal energy efficiency for heating ηs (35°C) 1~/3 ~ 125 / 125%
Energy class 35°C / 55°C A++ / A++
Outlet water temperature range (heating mode) 20 / 60°C
Max. temperature of water at outlet only in thermodynamic mode °C between 60°C and -5°C outside between 60°C and -10°C outside

ACM performances
COP ACM (220 l) according to EN16147 3.1
Seasonal energy efficiency ηwh (Cycle L) 127%
Energy class A+
Warm-up time 1:05 h:min
Input power in stand-by mode (Pes) 34 W
Max volume of usable hot water (Vmax) 288 liters
Outlet water temperature range (DHW mode) 30 / 55°C

Cooling performance (optional)
Cooling capacity nom./max. (A35/W7) 10.5 / 13.7 kW
nominal power input (A35/W7) 3.72 kW
EER 3.31

INDOOR UNITS RWD-6.0NW1E- 220S
Electric heating battery / 3 stages 6 (2+2+2) kW
Tank heater 2.7 kW
Net weight 126 kg
Dimensions (H x W x D) 1788 x 595 x 598 mm
Acoustic power 39 dB(A)
The volume / material of the ACM tank 220 liters / Duplex

Hydraulic characteristics
Expansion vessel 6 liters
Water flow (min./nom./max.) 1.1 / 2.75 / 2.8 m3/h
Stopcocks (male/male cocks provided) 1 1/4"
Connections for ACM 3/4"
Volume min. of water at installation 55 liters

Electrical characteristics
Power supply 230V / 1Ph / 50Hz or 400V / 3Ph / 50Hz
1~ 230V
current max. with electric heating coil + tank heater 44.8 A
Cable diameter / max. length (1) 3 x 10 mm² / 30 m
3~400V
current max. with electric heating coil + tank heater 24.7 A
Cable diameter / max. length (1) 5 x 6 mm² / 20

OUTDOOR UNITS RAS-6WH(V)NPE
Sound pressure level at 1 m / sound power level in Heating mode 50 / 65 dB(A)
Air flow 6000 m3/h
Dimensions (H x W x D) 1380 x 950 x 370 mm
Net weight 103 kg
Operating ranges in Cooling / Heating / DHW mode +10~+46 // -25~+25 // -25~+35°C

Characteristics of the refrigeration circuit
Pipe diameter (liquid - gas) 3/8" 5/8"
Min./max. length of the pipeline / Height difference 5 - 75 / 20 m
Refrigerant top-up / Additional amount of refrigerant required kg / g / m: 3.4 for 15 m / 60
Refrigerant R410A
Compressor SCROLL

Electrical characteristics
Power supply 230V / 1Ph / 50Hz or 400V / 3Ph / 50Hz
1~ 230V
Maximum current 30.5 A
Cable diameter / max. length (1) 3 x 4 mm² / 21 m
3~400V
Maximum current 16 A
Cable diameter / max. length (1) 5 x 2.5 mm² / 16 m
Electrical cables (shielded)  2 x 0.75 mm²

(1) Data provided for reference only. In accordance with applicable electrical equipment standards. (V) = mono. * R32 2/2.5/3HP models have different diameters for gas cooling pipes, chiller connection assemblies and indoor units. For this reason, use the adapters supplied with the outdoor unit.
