Air-to-water Heat Pump Aquarea T-CAP Mono-bloc WH-MXC16J9E8 16kW 3phase

Description

Air-to-water Heat Pump Aquarea T-CAP Mono-bloc WH-MXC16J9E8 16 kW 3 phase

Aquarea warms your home effectively and efficiently, even with extreme outdoor temperatures. Aquarea can also cool space in summer and bring hot water all year round.

Aquarea T-CAP is the range for retrofit and new builds, keeping Total Capacity even at extremely cold ambient.

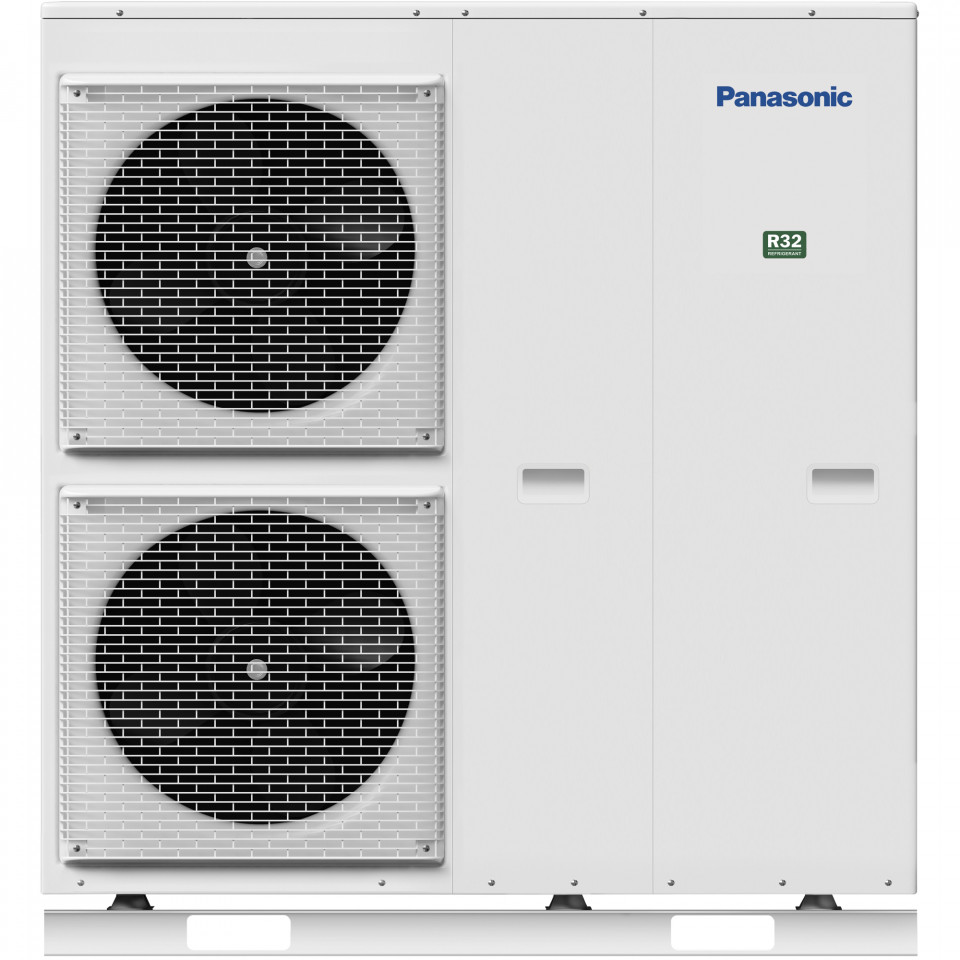

The Mono‑Bloc system: It is only an outdoor unit. The installation doesn’t require refrigerant connections, as the unit is directly connected to the heating and/or hot water circuits.

Energy efficiency: A+++ in heating at 35°C / “A” water pump with variable speed / Built-in flow meter.
Flexibility: Built-in magnetic water filter.
Comfort: Constant capacity and operation range down to -20°C / 65°C water outlet temperature.

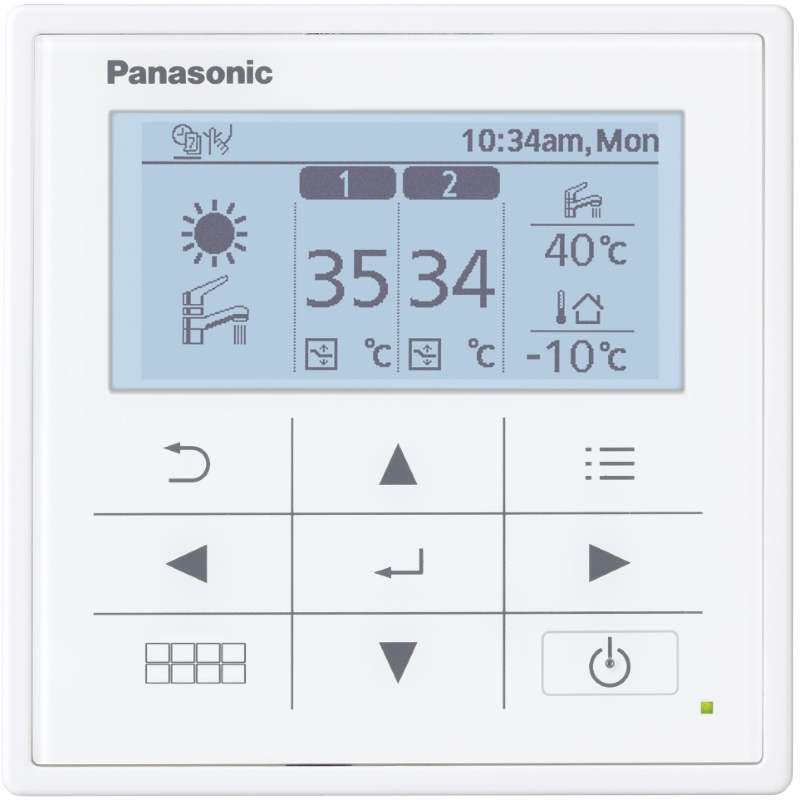

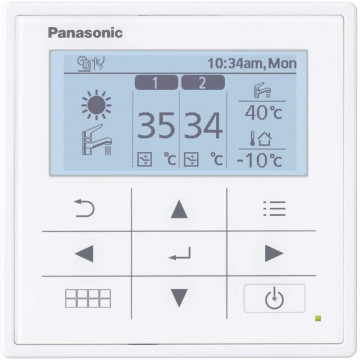

Control: Additional functions with optional PCB (2 zone control, bivalent control, Smart Grid contact and more).
Connectivity: Optional Aquarea Smart and Service Cloud and integration into BMS projects.

Specifications

Heating capacity / COP (A +7 °C, W 35 °C) 16,00 / 4,52 kW / COP
Heating capacity / COP (A +7 °C, W 55 °C) 16,00 / 2,86 kW / COP
Heating capacity / COP (A +2 °C, W 35 °C) 16,00 / 3,10 kW / COP
Heating capacity / COP (A +2 °C, W 55 °C) 16,00 / 2,07 kW / COP
Heating capacity / COP (A -7 °C, W 35 °C) 16,00 / 2,39 kW / COP
Heating capacity / COP (A -7 °C, W 55 °C) 16,00 / 1,71 kW / COP
Cooling capacity / EER (A 35 °C, W 7 °C) 14,50 / 2,84 kW / EER
Cooling capacity / EER (A 35 °C, W 18 °C) 16,00 / 3,75 kW / EER
Heating average climate (W 35 °C / W 55 °C)
Seasonal energy efficiency
ηs 176 / 129%
SCOP 4,46 / 3,31
Energy class A+++ to D: A+++ / A++
Heating warm climate (W 35 °C / W 55 °C)
Seasonal energy efficiency
ηs 232 / 160%
SCOP 5,88 / 4,09
Energy class A+++ to D: A+++ / A+++
Heating cold climate (W 35 °C / W 55 °C)
Seasonal energy efficiency
ηs 150 / 125%
SCOP 3,83 / 3,20
Energy class A+++ to D: A++ / A++
Sound power Heat 66 dB(A)
Dimension H x W x D 410 x 1283 x 320 mm
Net weight 150 kg
Refrigerant (R32) / CO2 Eq. 1,80 / 1,215 kg / T
Water pipe connector R 1¼"
Pump: Number of speeds Variable Speed, Input power (Min / Max) 38 / 173 W
Heating water flow (ΔT=5 K. 35 °C) 45,9 l/min.
Capacity of integrated electric heater 9,00 kW
Input power: Heat 3,54 kW / Cool 5,11 kW
Running and starting current
Heat 5,3 A
Cool 7,6 A
Current 1 16,4 A
Current 2 13,0 A
Recommended fuse, supply 1 / 2 20 / 20 A
Recommended cable size, supply 1 / 2 5 x 2,5 / 5 x 1,5 mm²
Operating range - outdoor ambient
Heat -20 ~ +35°C
Cool 10 ~ +43°C
Water outlet Heat 20 ~ 65°C
Cool 5 ~ 20°C
