Air-to-Water Heat Pump Zubadan ERSC-VM2D-PUHZ-SHW140YHA 14kW

Description

Air-to-Water Heat Pump Mitsubishi Electric Zubadan ERSC-VM2D / PUHZ-SHW140YHA 14 kW 3-phase

ECODAN Mitsubishi Electric is a high-efficiency heating system that is based on the principle of the aerothermal heat pump.

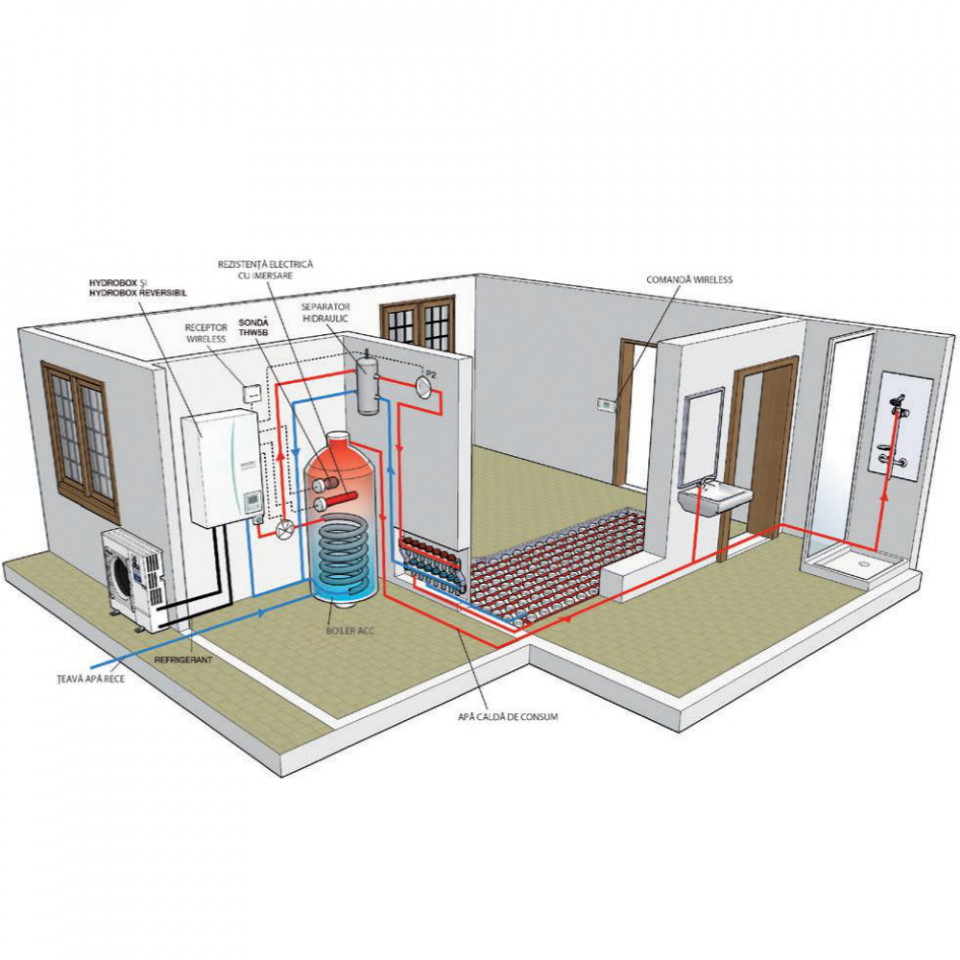

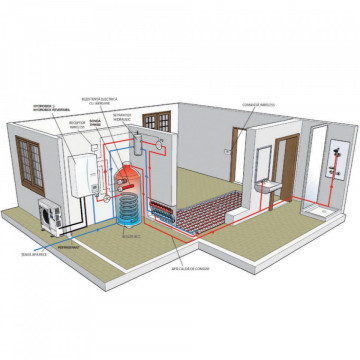

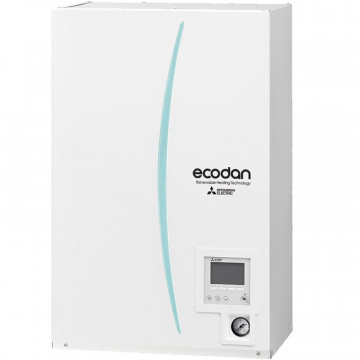

Split type air/water heat pump for heating, cooling (depending on device variant) and heated drinking water in a flexible system.

Optimally matched outdoor and indoor units with EHPA seal of approval as well as the heat pump KEYMARK, SG Ready certification and the best ErP efficiency rating A++

Advanced, easy-to-use control

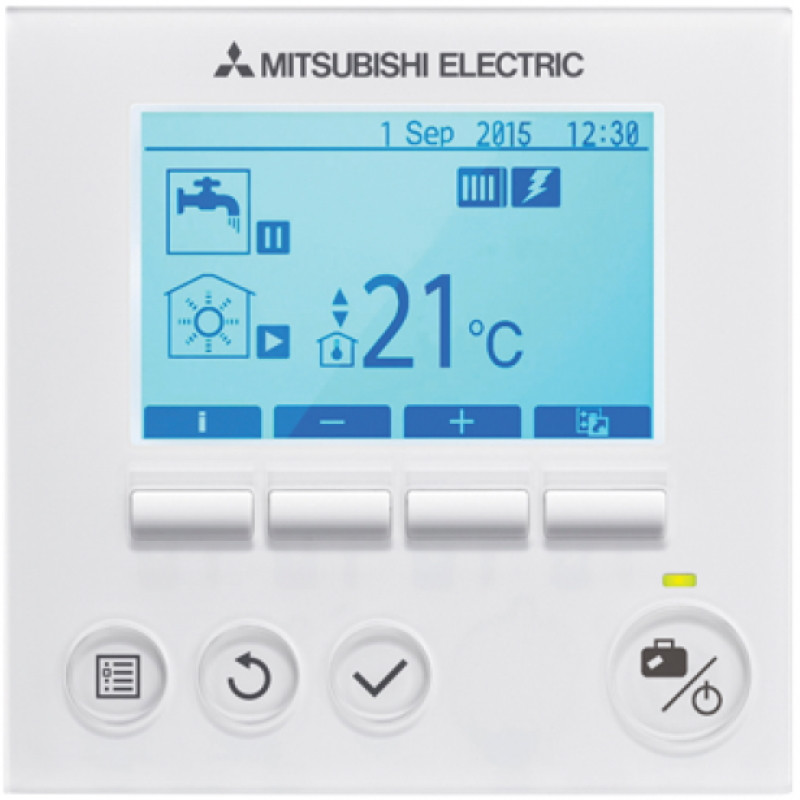

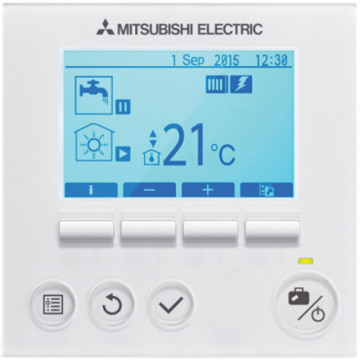

Fifth generation control electronics (FTC) manage the system to ensure maximum comfort with the lowest consumption and offers a number of useful functions for both the installer and the end user.

ECODAN heating systems allow the production of heating, sanitary hot water and cooling thanks to aerothermal heat pump technology. With ECODAN the energy you need to heat your home comes from two sources: 25% of the power supply, and the remaining 75% of the outdoor air for free, allowing for rapid depreciation of the equipment.

Zubadan range

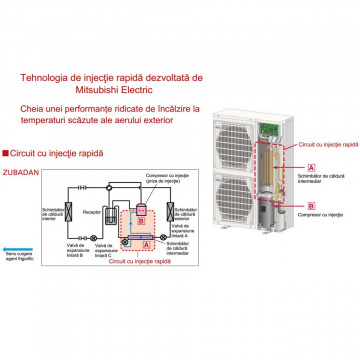

To work in the most extreme conditions. They can offer heating with temperatures up to -28oC. The special design of its compressor with flash-injection technology allows to maintain the working regime, managing to give 100% of the capacity up to -15oC. Another aspect in which Zubadan excels is in the ultra-fast defrosts, being able to melt all the ice of the outdoor unit in less than 3 minutes, being ideal also for areas with high relative humidity.

• Heating at extreme temperatures High reliability up to -28oC

• DO NOT FLOJEA at low temperatures 100% capacity up to -15oC

• Ultra-fast defrosts In less than 3 minutes

Technical Data

Outdoor unit PUHZ-SHW140YHA
Series Ecodan Zubadan
Heating capacity (7°C, 35°C DHW) 14.00 kW
Cooling capacity (35°C, 7°C DHW) 12.50 kW
Refrigerant R-410A
Dimensions - Outdoor Unit (W x D x H) 950 x 330 x 1350 mm
Net weight 134
Liquid pipe diameter 3/8
Gas pipe diameter 5/8
Operating range -28ºC / +46ºC
Supply Three-phase
Max. Output Water Temperature (Heating) 60ºC
Min. Output Water Temperature (Cooling) 5ºC
