Backup-Box-B0

Description

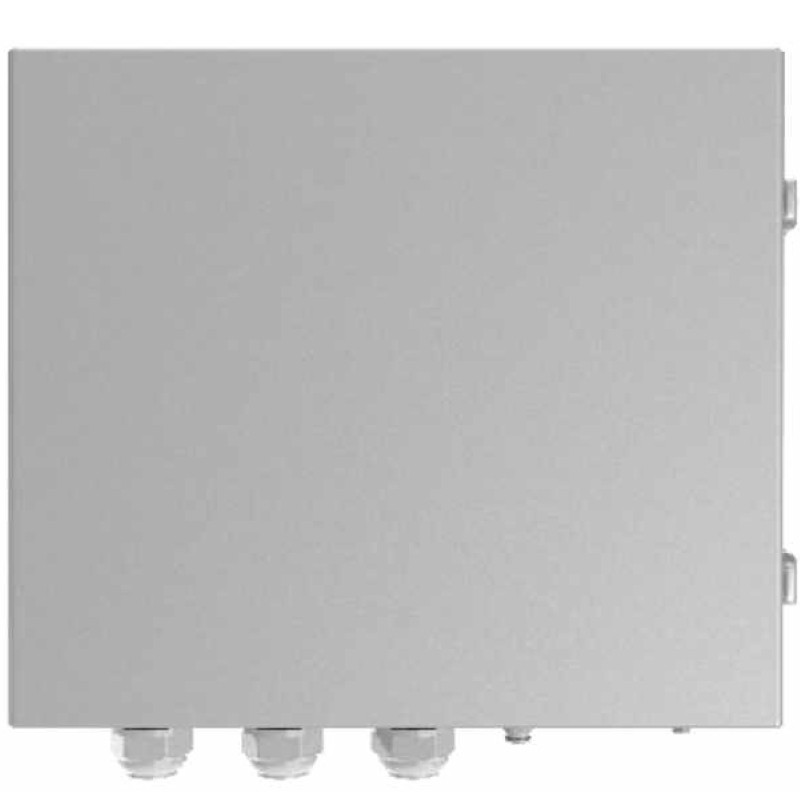

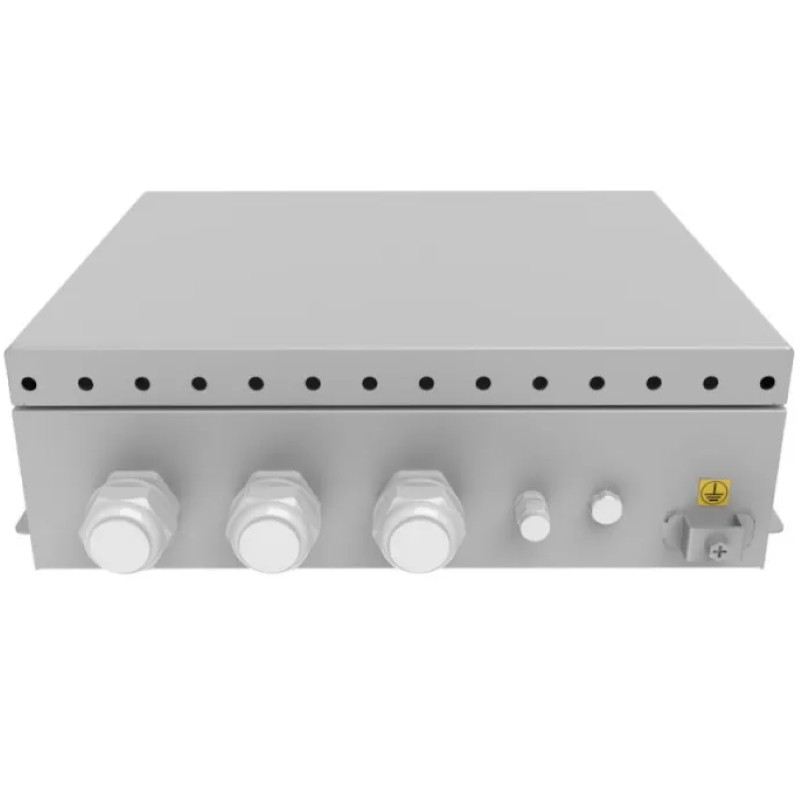

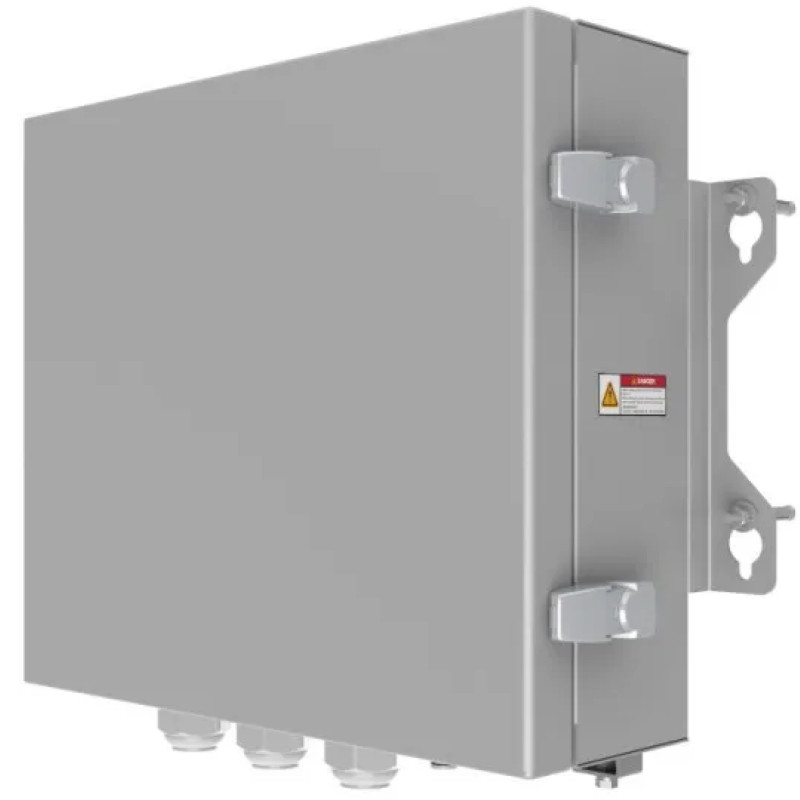

Huawei Backup-Box-B0

• Automatic detection & switchover
• Provide Reliable backup power

Technical Specification Backup Box-B0

AC Output (On grid)

Grid connection SinglePhase
Ratedvoltage 220 V / 230 V
AC frequency 50Hz / 60Hz
AC output voltage range 198 V ~ 253 V

AC Output (Backup)

Load connection SinglePhase
Rated voltage 220 V / 230 V
AC frequency 50Hz / 60Hz
Maximum apparent power 5,000VA
Maximum output current 22.7A

Switchover time ＜3 s

AC Input (Inverter)

Rated voltage 220 V / 230 V
AC frequency 50Hz / 60Hz
Compatible inverter SUN2000-2/3/3.68/4/4.6/5/6KTL-L1

General Specification

Operating temperature range -20 ℃to +45 ℃(-4 ℉to 113 ℉)
Relative humidity range 0 %RH～100 %RH
Dimensions (W * H * D) 400 x 350 x 130 mm (15.8 x 13.8 x 5.1 inch)
Weight 11 kg
Degree of protection P65
