Backup-Box-B1

Description

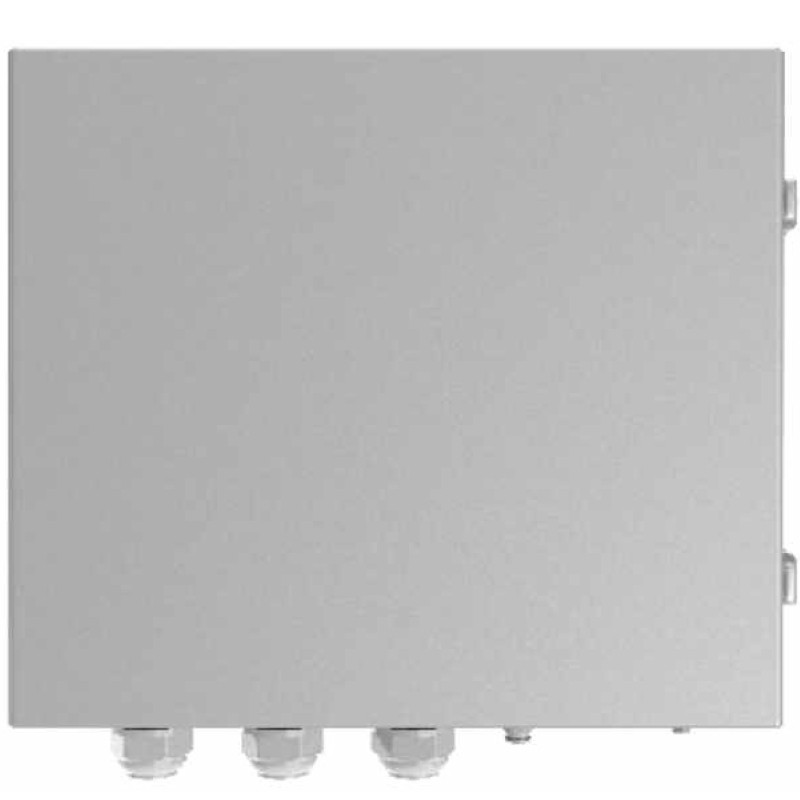

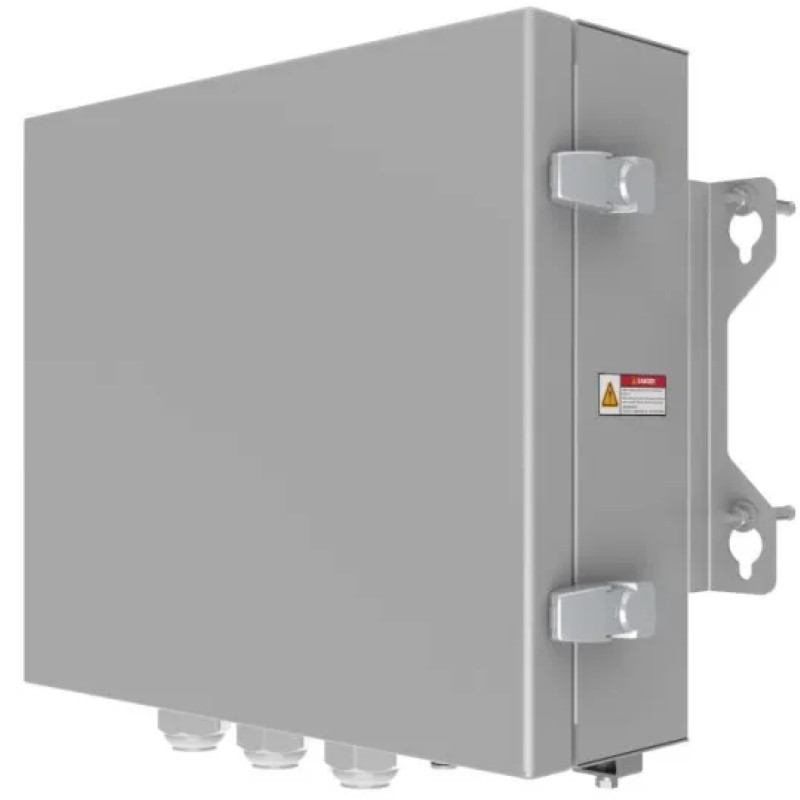

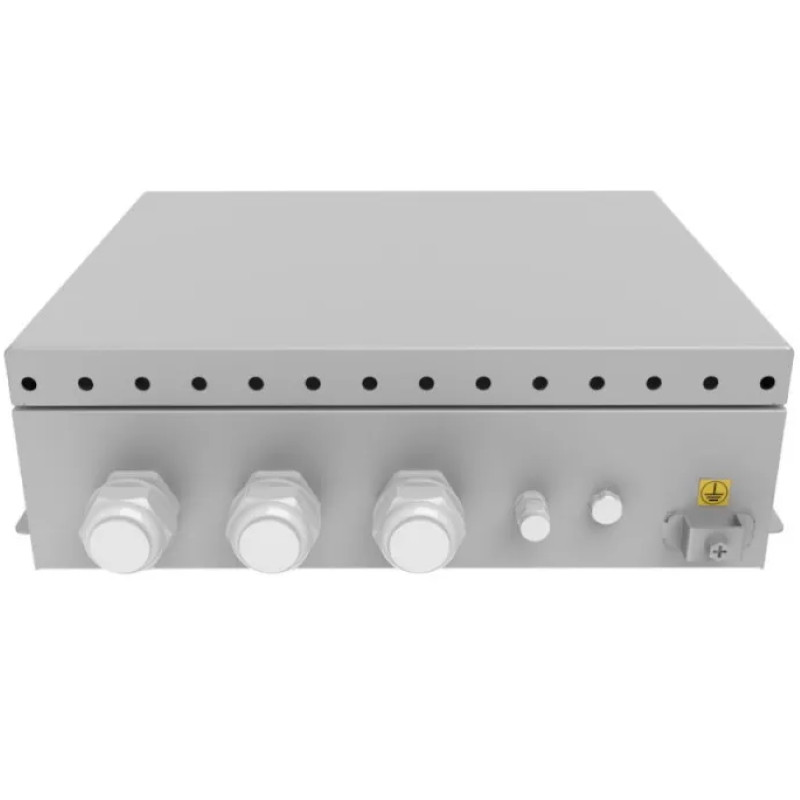

Huawei Backup-Box-B1

• Automatic detection & switchover
• Provide Reliable backup power

Technical Specification Backup Box-B1

AC Output (On grid)

Grid connection Three Phase
Ratedvoltage 380 V /400 V
AC frequency 50Hz / 60Hz
AC output voltage range 342 V ~ 440 V

AC Output (Backup)

Load connection SinglePhase
Rated voltage 220 V / 230 V
AC frequency 50Hz / 60Hz
Maximum apparent power 3,300 VA
Maximum output current 15.2 A

Switchover time ＜3 s

AC Input (Inverter)

Rated voltage 380 V / 400 V
AC frequency 50Hz / 60Hz
Compatible inverter SUN2000-3/4/5/6/8/10KTL-M1

General Specification

Operating temperature range -20 ℃to +45 ℃(-4 ℉to 113 ℉)
Relative humidity range 0 %RH～100 %RH
Dimensions (W * H * D) 400 x 350 x 130 mm (15.8 x 13.8 x 5.1 inch)
Weight 11 kg
Degree of protection P65
