Boiler Vitodens 200-W 32 DHW Tank solar 300

Description

Gas condensing Boiler Viessmann Vitodens 200-W 32 display 7" and DHW Tank Vitocell 100-W CVBB 300 liters with 2 coils

The top model among the wall mounted gas condensing boilers is the Vitodens 200-W. The MatriX-Plus gas burner and Inox-Radial heat exchanger made of stainless steel are a combination that guarantees high efficiency and a high level of heating convenience over the long term.

All sizes of the Vitodens 200-W are equipped with the automatic Lambda Pro Plus combustion controller. Modulation range down to 1:13 (32 kW).

The integral, variable speed high efficiency circulation pump reduces power consumption by up to 70 %.

Recommended applications

■ Modernisation of heating systems on single floors or in detached houses with high demands for central heating and DHW convenience
■ Systems with little space available for the heat generator or tight (flexible) installation locations (e.g. attic or inside furniture)
■ Replacement of existing floorstanding boilers in various systems, also with several heating circuits and underfloor heating

Benefits at a glance

■ Seasonal central heating energy efficiency ηS up to 94 % (label A).
■ Low cycling frequency, even with low heat demand, through optimised pauses and wide modulation range down to 1:13 (32 kW)
■ Durable and efficient thanks to Inox-Radial stainless steel heat exchanger
■ MatriX-Plus gas burner with Lambda Pro Plus combustion controller for permanently high efficiency and clean combustion.
■ Power saving, high efficiency circulation pump

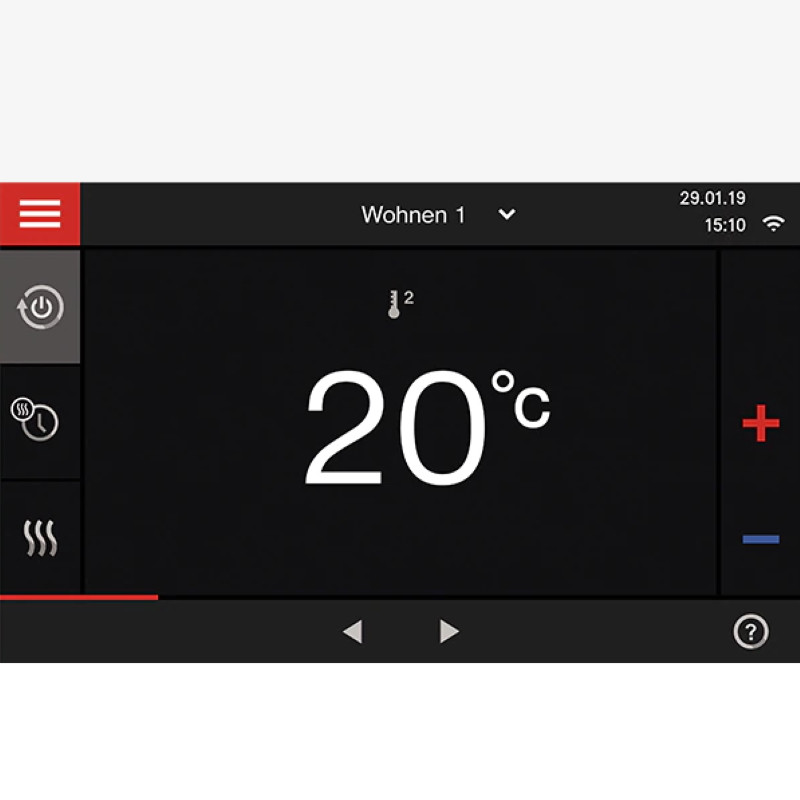

■ 7 inch greyscale touchscreen or 3.5 inch black/white screen with plain text and graphic display, commissioning assistant, energy consumption indicators and the option of operation from a mobile
device
■ Web-enabled through integral WiFi interface for operation and service via Viessmann app
■ Individual room control via ViCare app for up to 20 rooms in combination with ViCare Smart Climate accessory

Delivered condition

Wall mounted gas condensing boiler with Inox-Radial heat exchanger, modulating MatriX-Plus gas burner for natural gas and LPG to DVGW Code of Practice G260 [Germany], hydraulics and
variable speed high efficiency circulation pump.

Weather-compensated or constant temperature control unit with integral WiFi interface.
Fully plumbed and wired. Colour of the epoxy-coated casing: Vitopearlwhite.
Integral diaphragm expansion vessel (10 l capacity).
Preset for operation with natural gas. A conversion within the gas groups E/LL is not necessary (operation with natural gas with a hydrogen blend of up to 20 % by volume is still possible). The conversion to LPG is made at the control unit (a conversion kit is not required).

Heating thermal power = 1.9-32 kW (return / return 50 / 30oC); Thermal power = 1.7-29.3 kW (round trip 80 / 60oC)
Maximum permissible flow temperature = 80oC
Permissible working overpressure = 3 bar; electrical power consumed = 126 W
Standard efficiency: up to 109% (return / return 40 / 30oC)
Condensate flow = max. 4.9 liters / h
Flue gas temperature = 70oC
Flue gas connection (double, coaxial) = 60/100 mm
Dimensions: BxAxH = 450x360x700 mm
Flow / return connections = 3/4 "; Gas connection = 3/4"
Weight = 33 kW

Vitocell 100-W CVBB Cylinder features:

Capacity: V = 300 liters
Standby power losses = 1.65 kWh / day
Dimensions: DxH = 667x1734 mm; Weight = 160 kg
Lower coil thermal power: Q = 53 kW; Lower coil thermal power: Q = 31 kW;
Maximum hot water flow (at 60oC) = 1,169 liters / h.
