Gas condensing Boiler Viessmann Vitodens 222-W 32 display 3,5" with DHW Tank

Description

Gas condensing Boiler Viessmann Vitodens 222-W 32 display 3,5" with DHW Tank

Gas-fired condensing technology and innovative DHW solution in compact design.

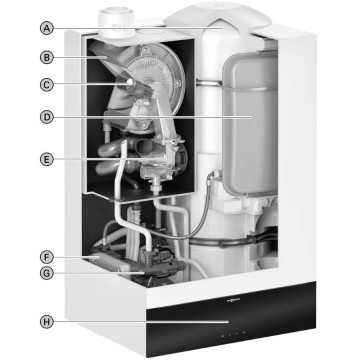

Vitodens 222-W 32 B2LF wall-mounted boiler operating on the principle of condensation, with cylindrical MatriX Plus modulating burner and Inox-Radial heat exchange surface and integrated stainless steel battery

The boiler has a blower and works with forced draft; the battery integrated in the boiler has 46 liters and together with the plate changer it prepares hot water like a boiler with a 150 liter coil!
MatriX Cylindrical Burner, Modular, Blower, Long Lifespan Due to Stainless Steel Matrix Fabric - Insensitive to High Heat Load and Lambda Pro Control
Modulation range up to 1:17
Long-lasting and efficient thanks to the stainless steel radial heat exchanger.
Filling device
High efficiency circulating pump with adjustable speed and 3-way valve
Expansion vessel for thermal agent (10 liters). Expansion vessel for a.c.m. (2 liters)
Safety valve
Pipes and cables ready for connection

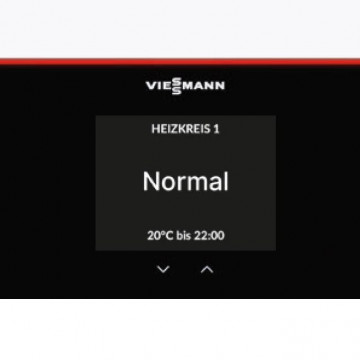

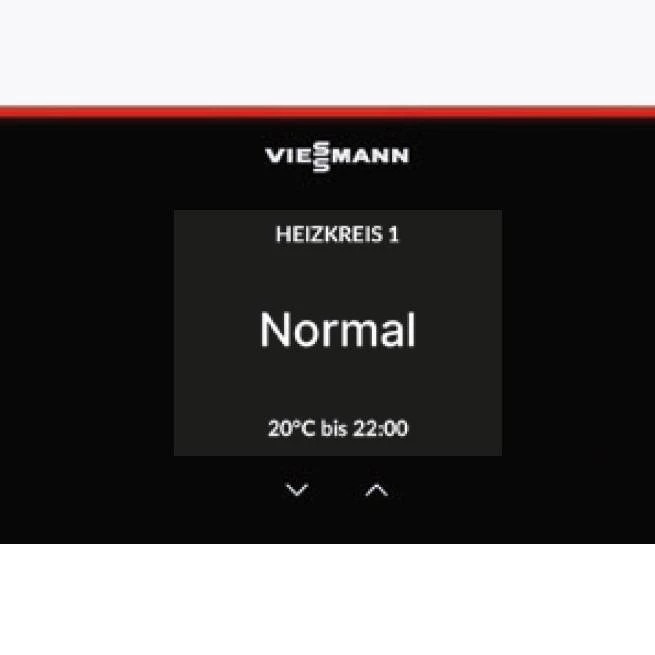

Increased operating comfort through its 3.5 ”screen as well as the ViCare mobile application.
Integrated mobile WLAN interface
Adapted for the integration of a solar installation.
Energy efficiency class: A
The Vitodens 222 package does not include a flue gas exhaust kit!

Heating thermal power = 1.9-32 kW (return / return 50 / 30oC); Heating thermal power = 1.7-29.3 kW (return / return 80 / 60oC)
Thermal power of hot water = 33.5 kW. Continuous flow of hot water = 813.6 liters / h (at 45oC)
Maximum permissible flow temperature = 82oC. Permissible working overpressure = 3 bar
Electric power consumed = 110 W; degree of protection: IP X4D
Standard efficiency: up to 98% (return / return 40 / 30oC)
Maximum gas consumption = 3.69 m3 / h; Flue gas temperature = 77oC
Flue gas connection (double, coaxial) = 60/100 mm
Max flow condensate = 4.9 liters / h
Dimensions: BxLxH = 600x480x950 mm
Flow / return connections = 3/4 "; Cold / hot water connection = 1/2"; Gas connection = 3/4 "
