Connected Home Hub GTW100ZB

Name: Connected Home Hub GTW100ZB
Brand: Siemens
SKU: S55772-T109
Price: 562.98 RON
Availability: InStock

RON 562^.98 (VAT Included) RON 896^.04

RON 465^.27 (VAT excluded)

Delivery costs are not included

Buy now, pay later from RON 13.69 / Month Details

How can we help you?

Call us: +40740015767 (Mo-Fr 9-18)

Ask for details

Send us a message

Description

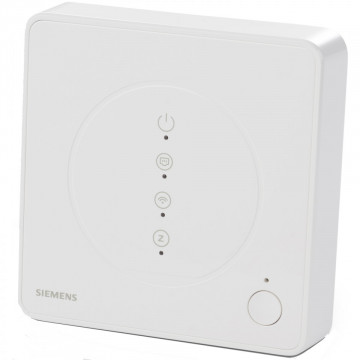

Connected Home Hub Siemens GTW100ZB

To create Zigbee system and control connected Zigbee devices

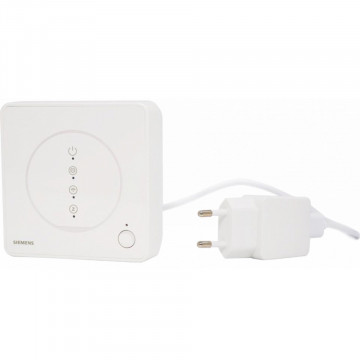

● Mains-powered hub AC 230 V (with external power adapter SA68-050100V)
● Wireless communication based on Zigbee 3.0
● Support of Ethernet and WLAN connection
● Bridge between Internet and Zigbee networks
● Easy binding with mobile application "Connected Home" (downloadable from
Google Play™ or Apple App Store®)
● LED indication of power and network connection state.

Use

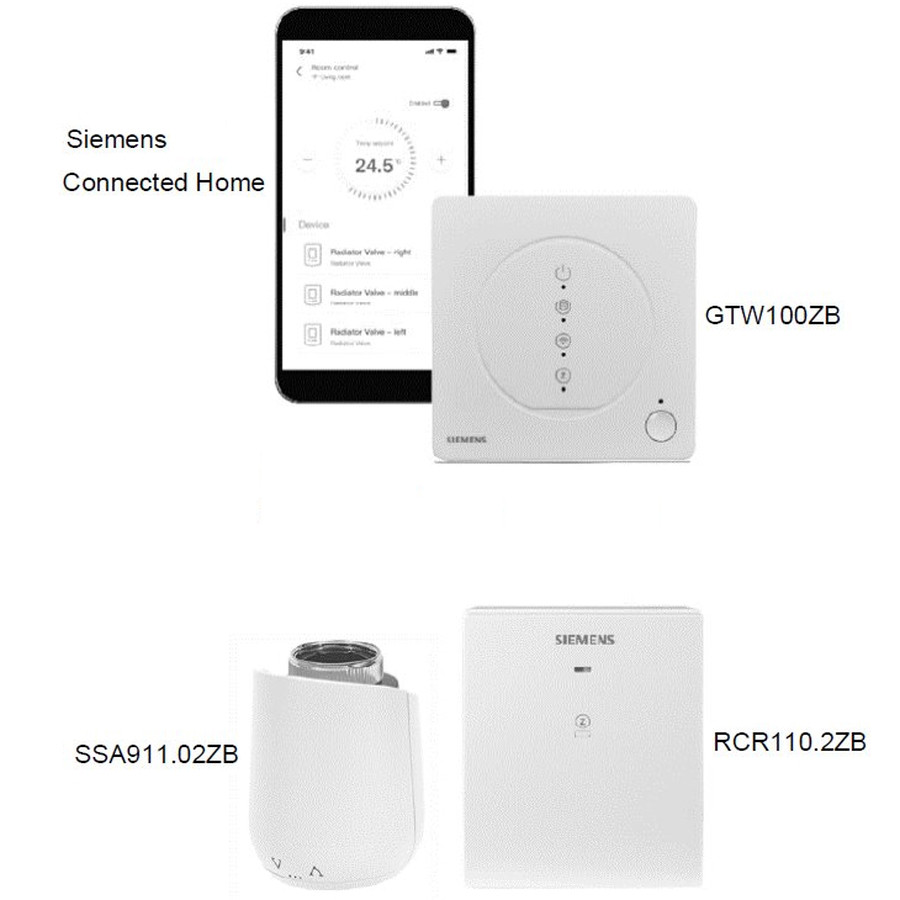

● Part of Siemens Connected Home ecosystem
● Used with the mobile application to add and control RCR110.2ZB, SSA911.01ZB and other devices in the system
● Typical application:
– Residential apartments
– Single family homes Functions

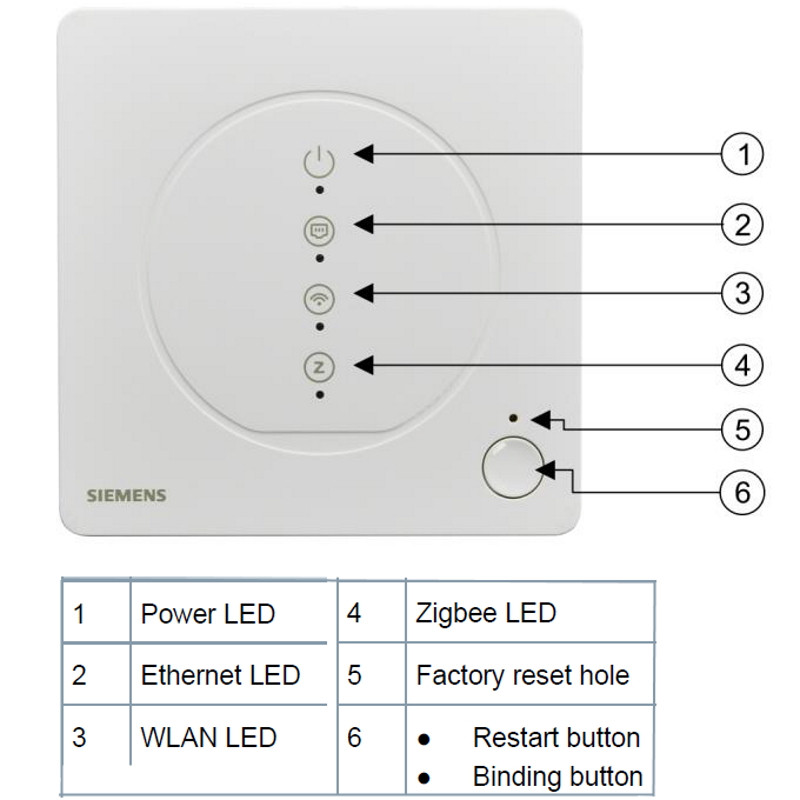

● Different LED behaviors to indicate:
– Status of power connection, Ethernet connection, WLAN connection and Zigbee connection
– Device restart
– Device reset via the mobile application
– Factory reset
● Remotely configurable using the mobile application
● Remotely controllable of devices on Zigbee network using the mobile application
● Restartable when the hub crashes or encounters unknown errors
● Factory resettable to erase all data including device configurations and device list.

Technical data - power adapter

Input characteristics
Rated input voltage AC 100...240 V
Operation range AC 90...264 V
Rated input frequency 47…63 Hz
Input current Max. 0.2 A at AC 100 V input & max. load
Standby power consumption ≤ 0.1 W at AC 230 V input & no load
Output characteristics
Rated output voltage: 5 V
Representative current: 1 A
Output voltage range: DC 4.9...5.4 V
Turn on delay time: Max. 3 seconds at AC 100 V & max. load
Cable length: Length of prefabricated connecting cable 1.5 m.

Technical data - GTW100ZB

Power supply
Operating voltage DC 5 V
Power consumption 5 W
Interfaces

Ethernet
Plug: 1 x RJ45
Cable: CAT 5 or CAT 5e, non-shielding
Interface type: 100BASE-TX, IEEE 802.3 compatible
Bit rates: 10/100 Mbps, auto-sensing
Zigbee
Standard: Zigbee 3.0, Zigbee channels: 11-26
Frequency: 2.4...2.485 GHz
Maximum radio-frequency power: 12 dBm
Range: typically 60 m inside buildings
WLAN
Interface type: Wireless access point
Supported standards: IEEE 802.11 b/g
Frequency band: 2.4…2.485 GHz
WLAN channels: 1…13
Maximum radio-frequency power: 18 dBm
Distance (unobstructed field): Min. 5 m (16 ft).

Dimensions GTW100ZB 92,3 x 92 x 37,2 mm. Weight of the Hub with box, user document and accessory: 285 g
