Danfoss Ally Starter Pack
Description

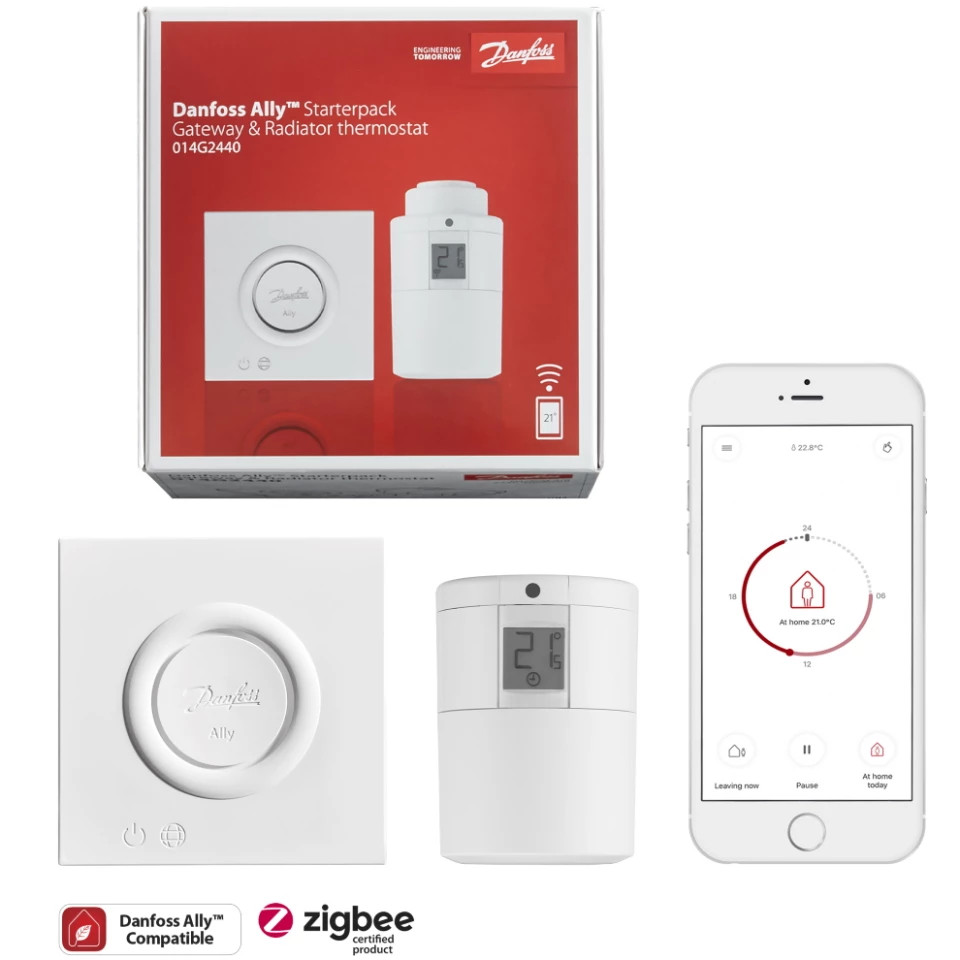

Danfoss Ally™ Starter Pack 014G2440.
Contains Gateway and radiator thermostat.
Danfoss Ally Gateway is a programmable wireless control system that connects all Danfoss Ally devices to the internet and intelligently controls your heating through a free app that can be downloaded from Google Play and the App Store.
Power supply and LAN cable for internet connection are included.
Controls the daily heating schedule for each room, allowing for quick and easy adjustments.
The preheat function is used to make sure you have the right temperature when you want it. When the preheat function is "On", it means it switches to the next At Home programmed mode.
Danfoss Ally ™ Gateway software is automatically updated from the internet.
The number of each unit type for a system must not exceed: Danfoss Ally Gateway 1 unit; Danfoss Ally radiator thermostat 32 units; Master Controller Danfoss Icon 3 units; Danfoss Zigbee repeater> 10 units.
Danfoss Ally Starter Pack data sheet
Danfoss Ally Gateway
Device function: Smart Home Gateway. Recommended use Residential interior (pollution degree 2) Application Radiators, water-based underfloor heating.
LED indicators (green) Power / Status, Network Connection.
Button Press the Reset button for 5 seconds to perform a factory reset.
Power supply 5 VDC Adapter 110 V ~ 240 VAC, 5V 1A DC Power consumption / Standby <5 W / <2 W Cable communication 10 / 100M Ethernet port (RJ45, LAN) Zigbee / IEEE 802.15 wireless communications. 4 Transmission frequency / power 2.4 GHz / <20 dBm (79 mW) Wide open transmission distance 300 m outside line of sight.
Firmware update Support for over-the-air updates.
Operating temperature from -10 ° C to 55 ° C Storage temperature from -20 ° C to 60 ° C Size 95 mm x 95 mm x 23 mm Class IP 20 Integrations Amazon Alexa, Google Assistant, Partner API.
Danfoss Ally radiator thermostat.
The Danfoss Ally radiator thermostat is battery-powered, compact and easy to use with a handwheel and a single button.
Danfoss Ally Radiator Thermostat ™ is a Zigbee certified product, compatible with Danfoss Ally Gateway and certified third party systems using Zigbee technology.
