Ally eTRV Radiator Thermostat

Description

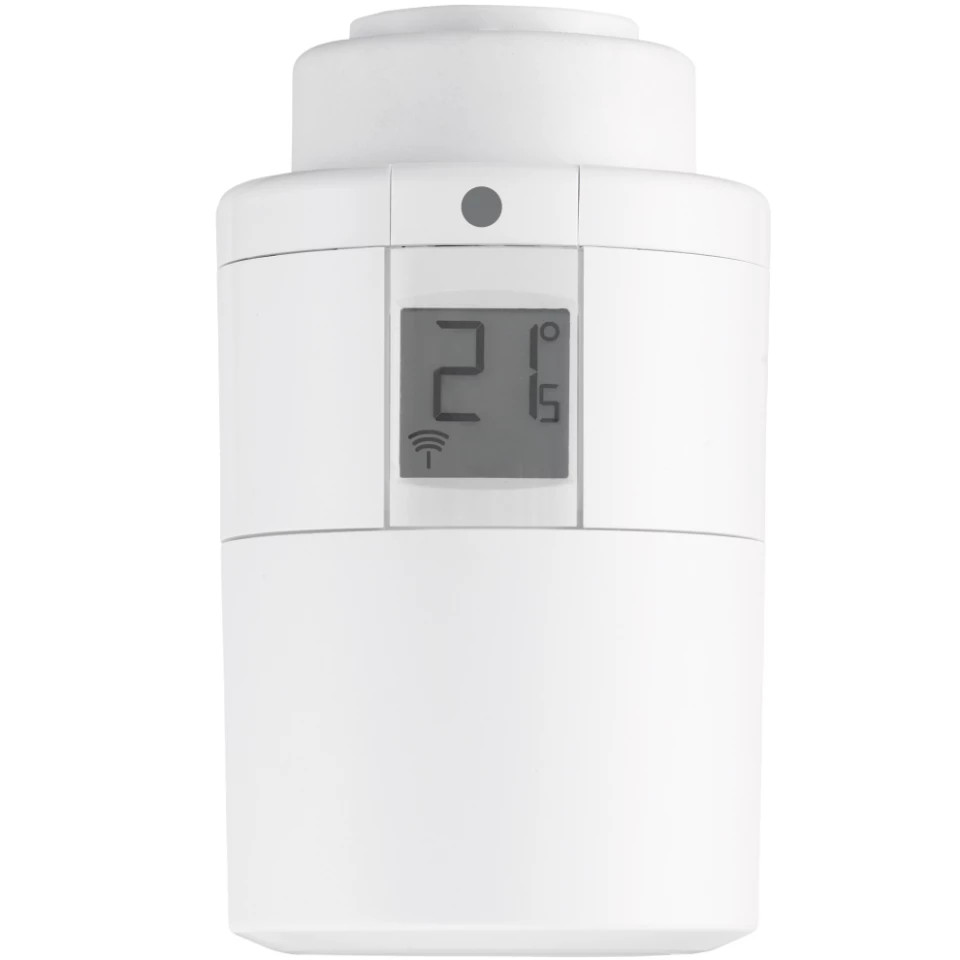

Ally eTRV 014G2461 radiator thermostat.

The Danfoss Ally radiator thermostat is battery-powered, compact and easy to use with a handwheel and a single button.

Danfoss Ally Radiator Thermostat is a Zigbee certified product, compatible with Danfoss Ally Gateway and certified third party systems using Zigbee technology.

The Danfoss Ally radiator thermostat is easy to install in just 30 seconds! Adapters are available for all thermostatic valves manufactured by Danfoss and most other radiator valve manufacturers.

Characteristics:
Programming and control via the ZigBee gateway
Energy saving • Easy to install • Easy to use
Manual mode
Open window function
PID Exact temperature control
Adaptive learning
Easy-to-read LCD display. Rotate display -180 degrees
Temp interval min./max.
Child lock. Frost protection
Tap function
Backlit display
Battery life up to 2 years. Visual warning of discharged battery
Software that can be updated.
Danfoss eTRV radiator thermostat data sheet

Thermostat type: Programmable electronic radiator valve controller. Recommended use: Residential (degree of pollution 2).
Operating mechanism: Electromechanical. White backlit LCD display.
Software classification A. PID control.

Power supply: 2 1.5 V AA alkaline batteries. Power consumption = 3 mW in standby, 1.2 W when active. Transmission frequency / power: 2.4 GHz / <40 mW. Battery life: Up to 2 years. Low battery signal: The battery icon will flash on the screen.

Ambient temperature range 0 to 40 ° C. Transport temperature range from -20 to 65 ° C. Maximum water temperature 90 ° C. Temperature setting range from 5 to 35 ° C.
Clock accuracy +/- 10 min / year. Linear axis movement: up to 4.5 mm, max. 2 mm on the valve (1 mm / s).
Noise level <30 dBA. Safety classification Type 1. Open window function: Activated when the temperature drops or by the ZigBee command.
Weight (including batteries) 198 g (with RA adapter). Class IP 20 (not to be used in hazardous installations or in places where it will be exposed to water).

API Partner Integrations: Google Assistant, Amazon Alexa.
