Description

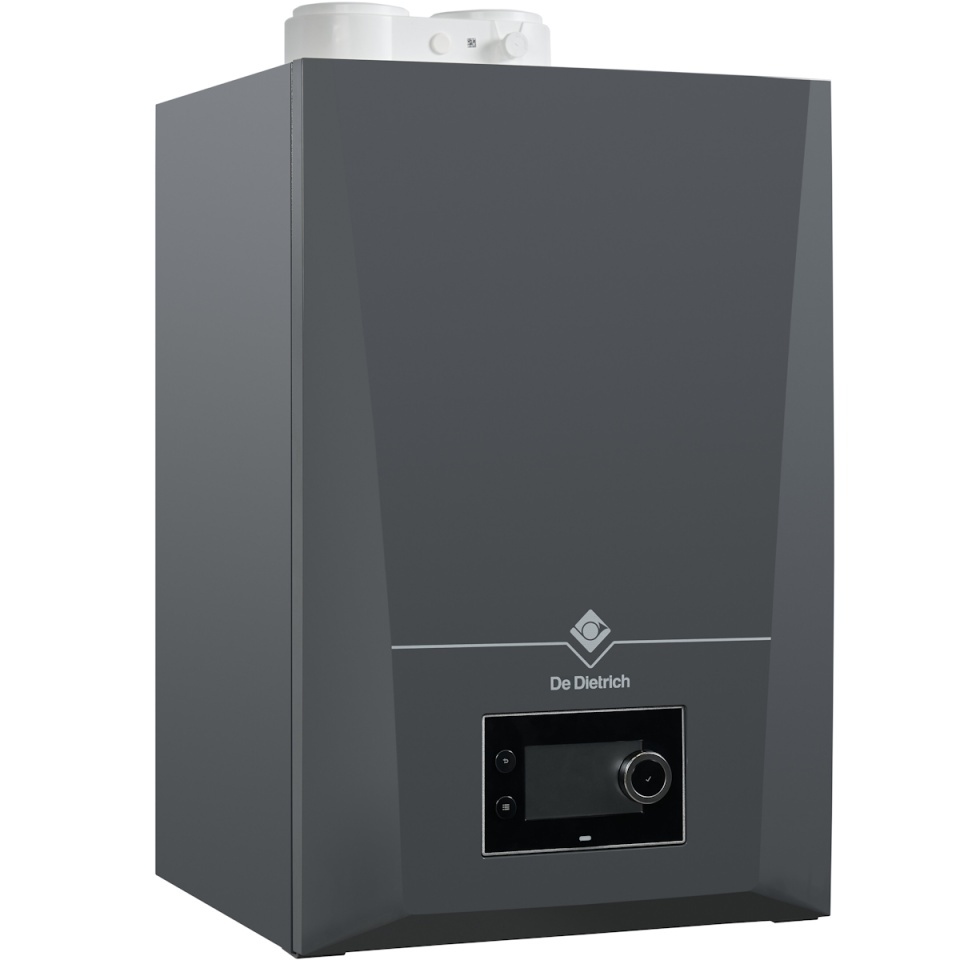

De Dietrich AMC Pro Evo 65 kW Condensing Gas Boiler

The De Dietrich AMC Pro Evo 65 kW is a high-performance wall-mounted condensing gas boiler engineered for medium-to-large residential buildings, commercial spaces, and multi-zone heating systems. Combining high seasonal efficiency with compact dimensions, this advanced boiler ensures lower gas consumption and ultra-low pollutant emissions.

Key Features & Advantages:

High Condensing Efficiency: Maximizes heat extraction from flue gases, significantly lowering heating bills and reducing environmental impact.
Advanced Combustion Control: Features an electronic gas-air mixing system that automatically adapts to varying gas qualities and pressures for optimal combustion.
Compact & Lightweight Design: Despite its high 65 kW output, the unit is space-saving and designed for easy installation and maintenance.

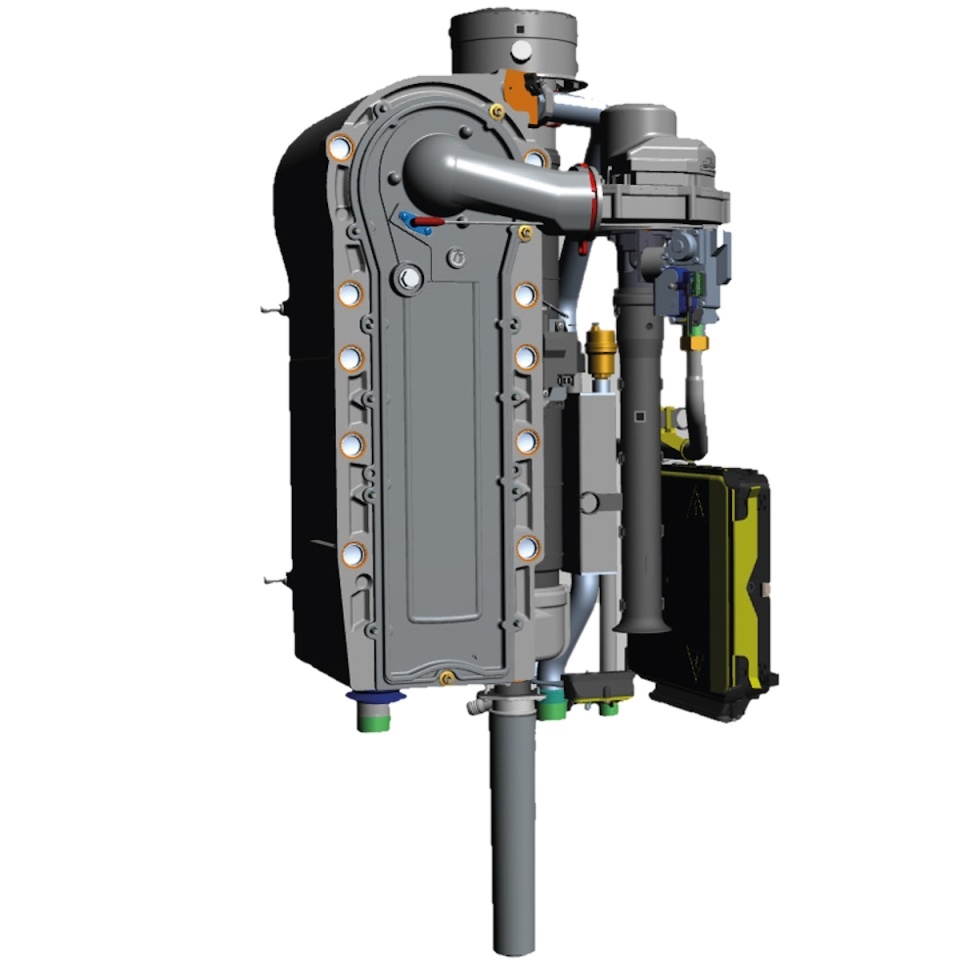

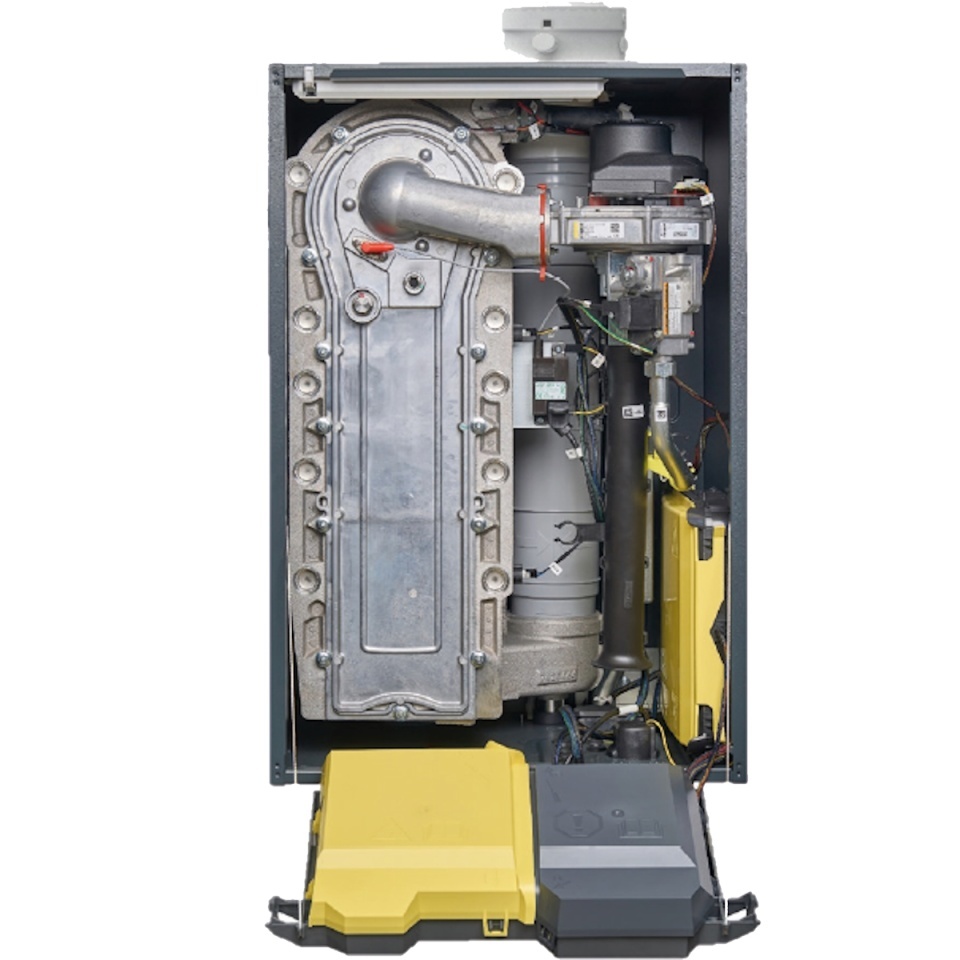

Robust Heat Exchanger: Built with top-tier materials engineered for durability, extended lifespan, and resistance to thermal stress.

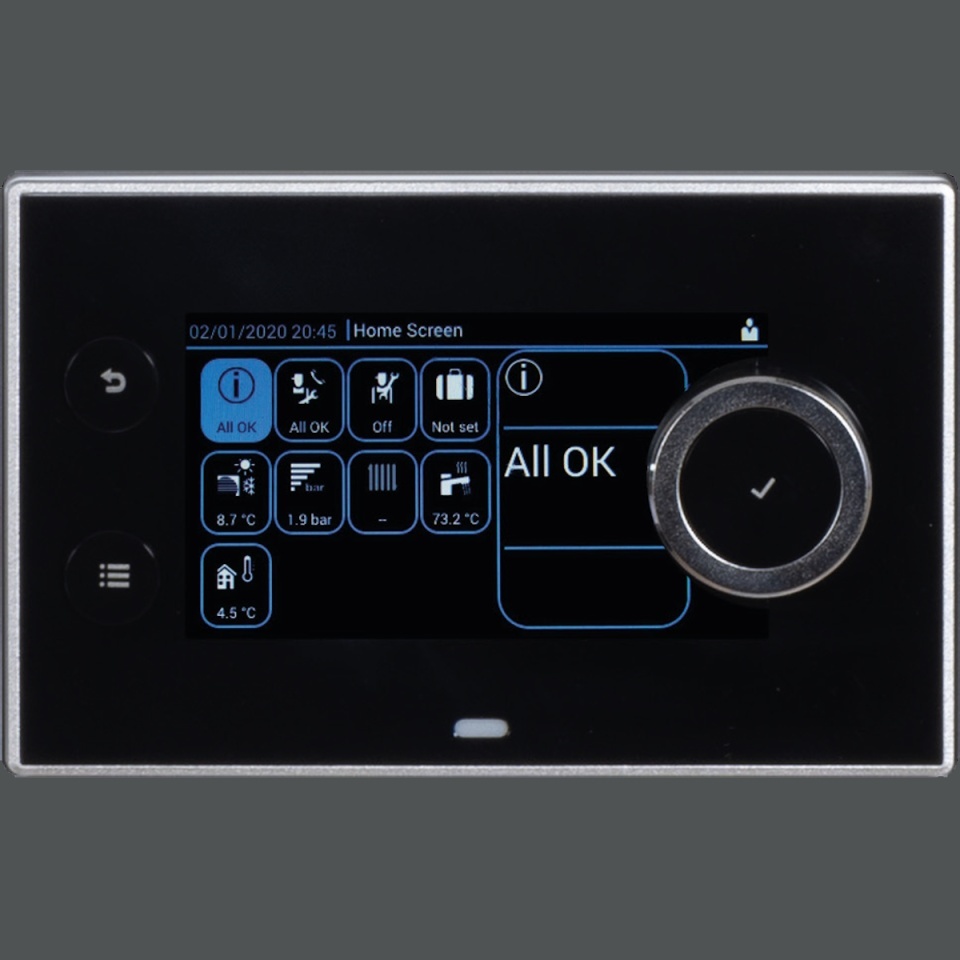

Smart Automation Compatible: Seamlessly integrates with modern heating controllers, room thermostats, and cascading systems for complex installations.

Technical Specifications:

Product Type: Wall-mounted condensing gas boiler
Heating Output: 65 kW
Fuel Type: Natural Gas / LPG (convertible)
Technology: Full condensing (ErP compliant)
Brand: De Dietrich

Technical Features – De Dietrich AMC PRO EVO 65

Technical Feature	Unit	AMC 65
Heating Performance
Useful heating output
– 100% Pn at average temp. 70°C	kW	61.0
– Intermediate at 30% Qnom (1)	kW	20.2
Nominal output (50/30°C)	kW	65.0
Efficiency (% LCV at load)
– 100% Pn at average temp. 70°C	%	98.3
– 30% Pn at return temp. 30°C	%	108.9
Seasonal space heating energy efficiency ( $\eta_s$ ) (without control system)	%	93.0
Standby heat losses ( $\Delta T = 30\text{ K}$ )	W	110
Auxiliary electrical power (excluding pump at Qnom)	W	83
Standby electrical power	W	4
Available flue gas pressure	Pa	100
Water content	L	6.4
Net weight (empty)	kg	67
