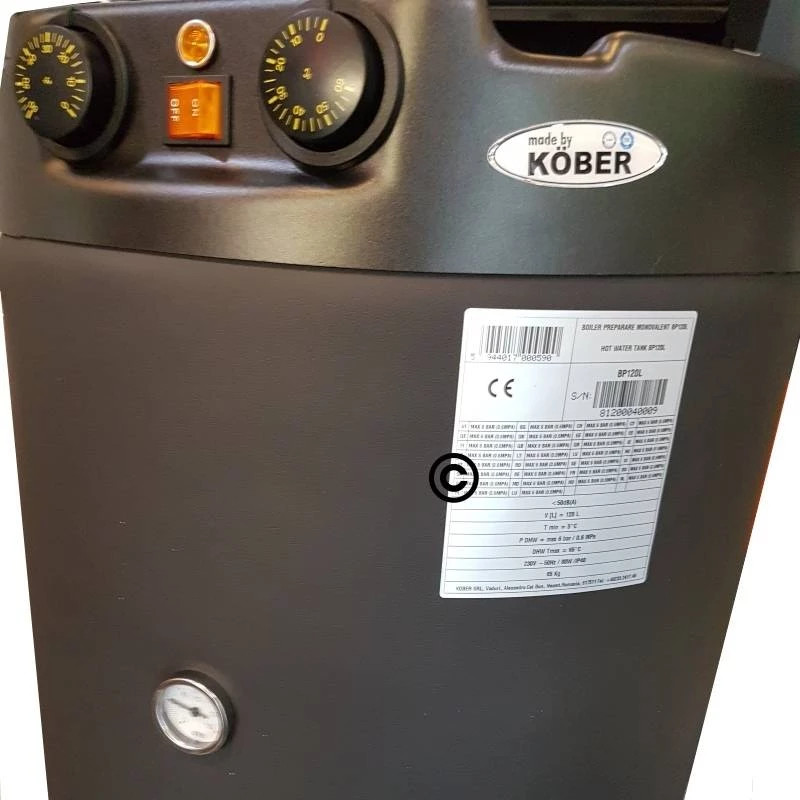

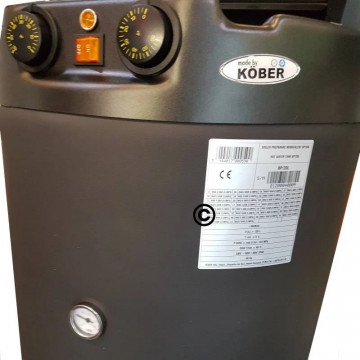

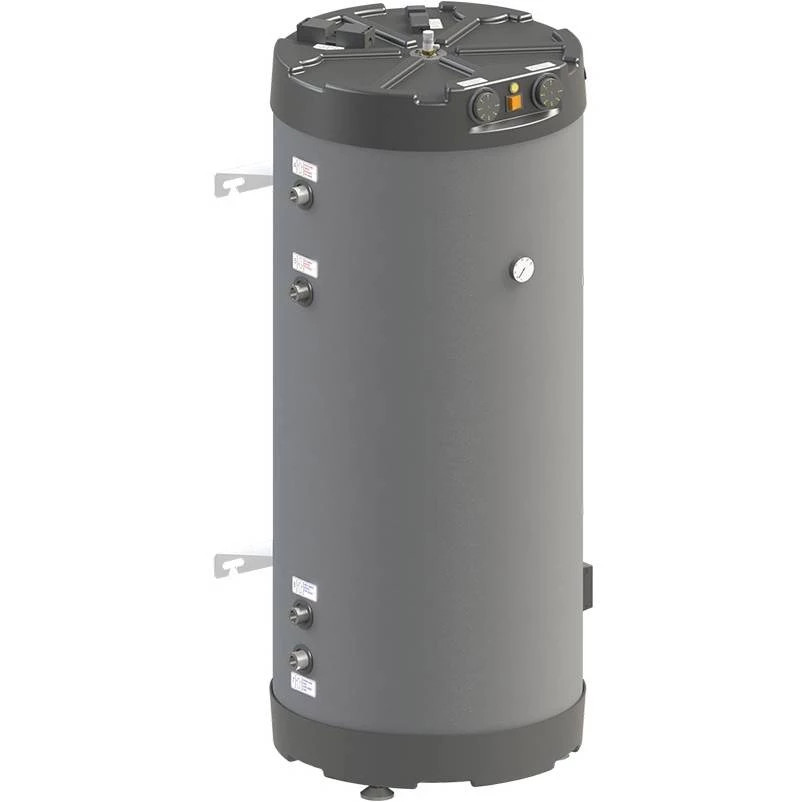

DHW storage cylinder BP120L-V1

Name: DHW storage cylinder BP120L-V1
Brand: Motan
SKU: BP120L-V1

RON 4,436^.29 (VAT Included)

Delivery costs are not included

Financing through Online Credit smart by BT Direct

Calculate the rate

How can we help you?

Ask for details

Send us a message

Description

Equipped with anti-scald mixing valve

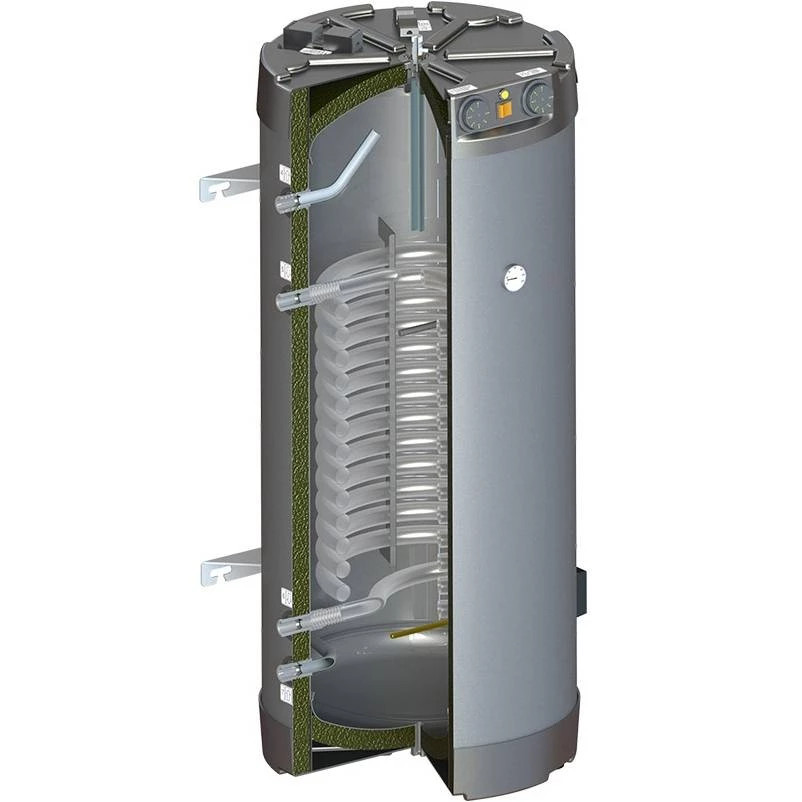

The water heater’s body and the serpentine type corrugated pipe are made of stainless steel (316L) and the welds are made by WIG welding. This combination offers long-term corrosion protection and also meets food hygiene standards
Another element that contributes decisively to corrosion resistance is the PASSIVATION process of the weld seams
The BP120L–V1 water heater was created for the hygienic, comfortable and economic preparation / storage of domestic hot water. It uses energy from solar collectors, from a gas boiler and/or from an electric heating coil.
This water heater was designed to operate only in an upright position;
Heat losses are considerably reduced due to the use of high quality polyurethane foam insulation;
It heats a large volume of water, due to the heat exchange surfaces that reach the bottom of the water heater;
It can be used for bivalent heating of water for domestic use, a combination of a gas boiler and an electric heating coil.

Maximum supply pressure - recommended value	5 bar
Net weight (without water)	50 kg
Dimensions (mm)	551 x 541 x 1177
Boiler volume	120 litri
Maximum domestic hot water temperature	60°C
Maximum temperature for the heating medium in the primary circuit	80°C
Thermal agent volume	3,5 litri
Heat exchange surface	1,92 m²
Coil, outgoing thermal flow connection	3/4 “
Coil, inbound heat connection	3/4 “
Cold water inlet, hot water outlet	3/4 “
Electrical resistance	1,1/4 “

SKU

BP120L-V1
