Description

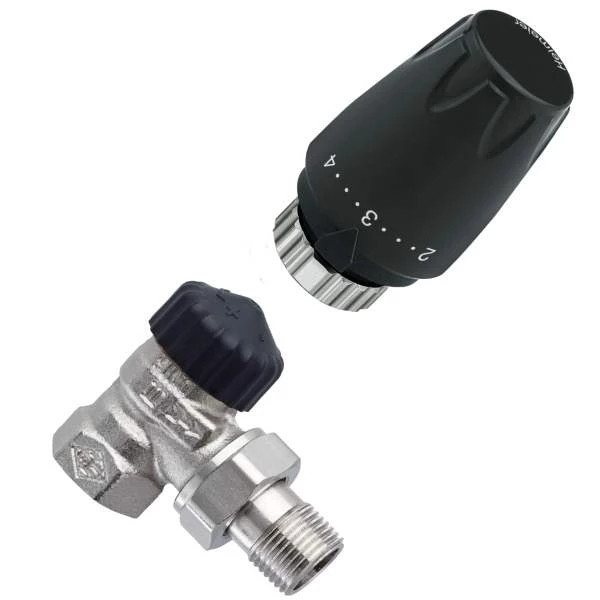

DX thermostatic head Graphite RAL7024 set with Valve

Liquid sensor.
Low actuation time, low hysteresis, high working pressure.
Stable control mode even at low proportionality range intervals (<1K).
Meets all German EnEV and DIN V 4701-10 requirements.
Small size - diameter and length.
Graphite cover, inscribed with scale.
Compatible with all IMI Heimeier thermostatic valves and radiators with built-in thermostatic valve with M30x1.5 thread.
The operating and installation instructions will also be consulted.
The thermostat head can be mounted together with the E-Pro timer.
Valve stroke limiter.
6 ° C frost protection.
Maximum sensor temperature 50 ° C.
Hysteresis 0.4 K.
Influence of water temperature 0.7 K.
Influence of 0.3 K differential pressure
Operating time 24 min.
Adjustment positions 1-5; Adjustment range: 6 ° C-28 ° C.
Connection size: 1/2 "; Valve material: brass.
