Electric Actuator AMV 435 24V

Description

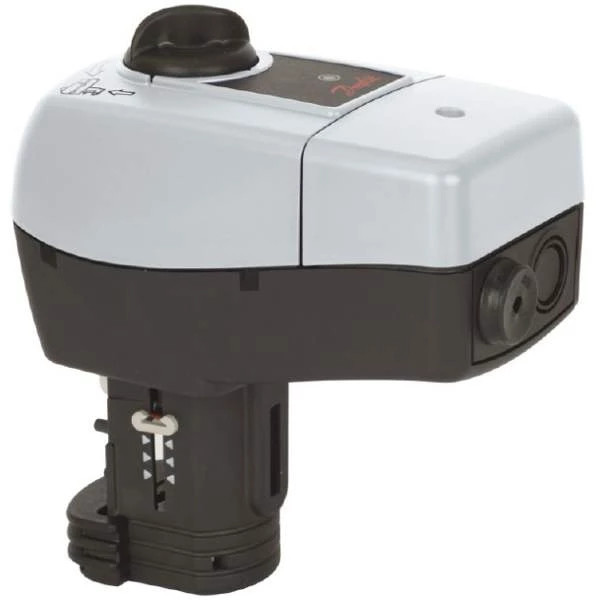

Electric Actuator Danfoss AMV 435 24 V

AMV 435 actuator is used with two and three-way valves type VRB, VRG, VF and VL up to DN 80 diameter and for AHQM DN 40-100. It is also used with pressure independent balancing and control valve type AB-QM from DN 40 to DN 100.

The advanced design incorporates load related ‘switch-off’ to ensure that actuators and valves are not exposed to overload.

Main data:
• Nominal voltage:
- 24 VAC/DC, 50 Hz/60 Hz
• Control input signal: 3 point
• Force: 400 N
• Stroke: 20 mm
• Speed (selectable):
- 7.5 s/mm
- 15 s/mm
• Max. medium temperature: 130 °C
• LED signalling
• End-position signals
• Manual operation

Product details

Gross weight 0.71 kg
Net weight 0.58 kg
Actuator speed [s/mm] 8 s/mm
15 s/mm
Actuator type Electrical
Ambient temperature [°C] [Max] 55°C
Ambient temperature [°C] [Min] 0°C
Application HVAC
Closing force [N] 400 N
Control signal type 3-point
Description AMV 435 24V 7,5-15s/mm 20mm 400N
Grade of enclosure IP54
Manual operation Yes
Position feedback no - potentiometer needed
Power consumption [W] 2 W
Product group Electrical actuators
Protection class II
REACH Candidate List substances >0.1% Lead
Safety function No
Speed type Standard
Spring down (return) No
Spring up No
Storage temperature [°C] [Max] 70°C
Storage temperature [°C] [Min] -40°C
Stroke [mm] 20 mm
Supply voltage [V] AC 24 V
Supply voltage [V] DC 24 V
Type AMV 435
