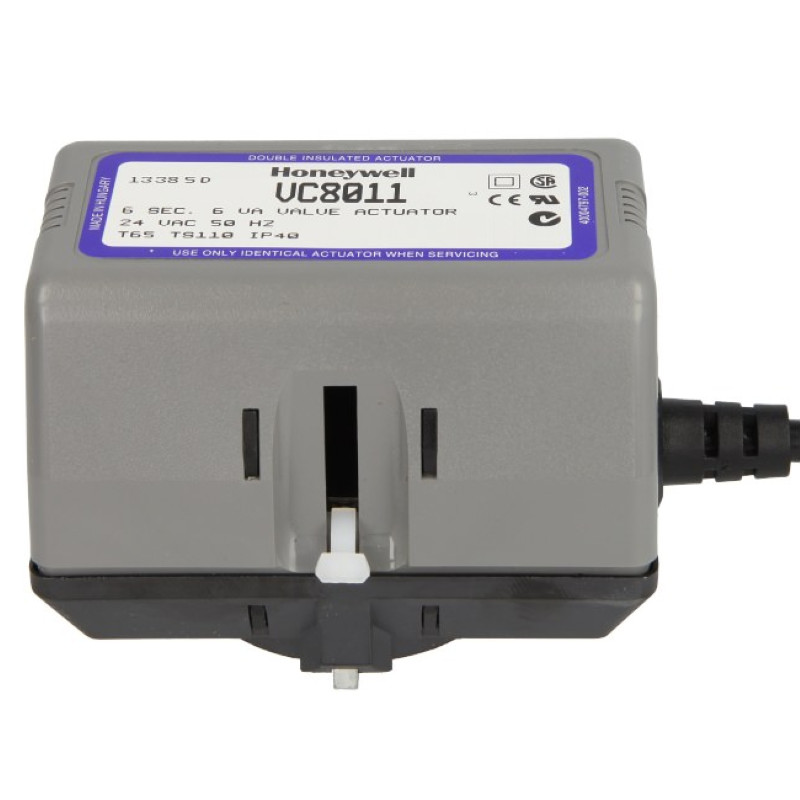

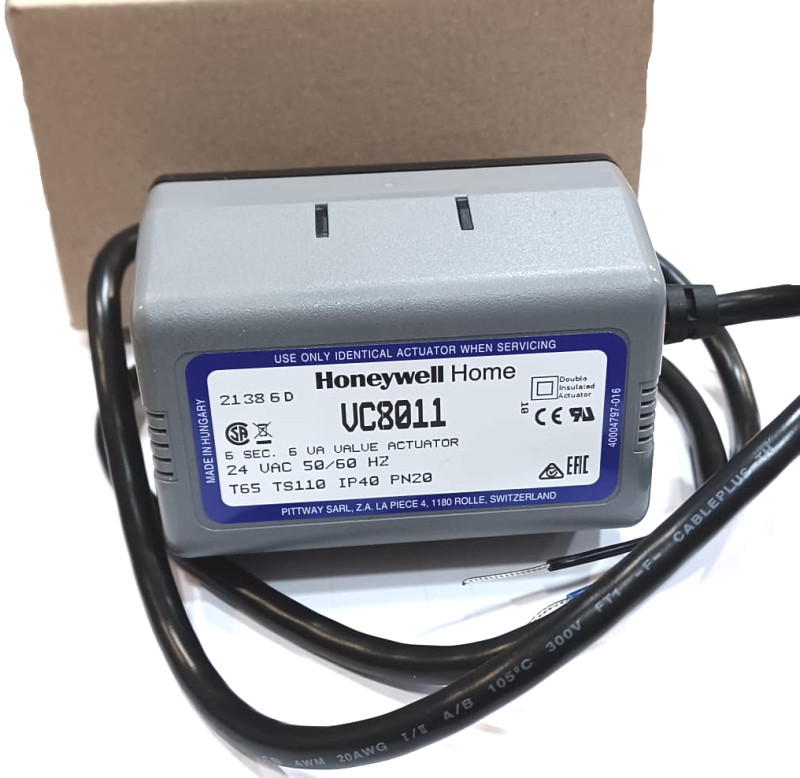

Actuator Resideo VC8011ZZ00/U 24V

Features

• Use with two-way or three-way valves.
• Double insulated actuator.
• Five foot plenum-rated cable.
• Quick and easy replacement of moving parts.
• Actuator head installation does not require draining the system.
• Selectable/switchable electronic fail safe normally open or normally closed.
• Available with valve bodies with 1000-series 2-way and 6000-series 3-way cartridges for new construction.
• All VC Series actuator-valve combinations provide 60 psi close-off.

Product Specifications

Application HVAC

Dimensions (in.) 2.8 in. high x 3.7 in. wide x 2.7 in. deep

Dimensions (mm) 70 mm high x 94 mm wide x 68 mm deep

Includes 3/8 in. flex conduit adapter; Valve body

Used With VC Series Valve

Weight (lb) 0.75 lb

Weight (kg) 0.34 kg

Materials Plastic housing

Mounting Direct Coupled

Frequency 50 Hz

Approvals, Underwriters Laboratories Inc. UL Recognized, File# MH11826

Approvals, Canadian Standards Association CSA Certified: LR1322-367

Electrical Connections Plenum-rated cable

Operating Humidity Range (% RH) 5 to 95% RH, non-condensing

Supply Voltage 24 Vac

Power Consumption Driving-- 6 VA

Shipping and Storage Temperature Range (F) -40 F to +150 F

Shipping and Storage Temperature Range (C) -40 C to +65 C

Approvals, CE 89/336/ECC, 73/23/EEC

Ambient Temperature Range (C) 0 C to 65 C

Ambient Temperature Range (F) 32 F to 150 F

Electrical Connections (in.) 39 in.

Electrical Connections (mm) 1 m

Environmental, Electrical or Ingress Protection Rating IP40, Double Insulated

Internal Auxiliary Switch 0

Fluid Temperature (C) 95 C

Fluid Temperature (F) 203 F

Actuator Type Valve

Control Signal SPST; Two position

Fail Safe Mode Stays in place

Stroke (in.) 0.4 in.

Stroke (mm) 10 mm

Cable

Molded strain relief

Timing, Nominal

Driving @ 60 Hz-- 6 sec

Maximum Differential Pressure Ratings (Close-off) (psi) 60 psid

Maximum Differential Pressure Ratings (Close-off) (kPa) 400 kPa

Shaft Adapter Type Self-alignment

Manual operation Lever
