Gas condensing Boiler GB062-24 KD H V2

Description

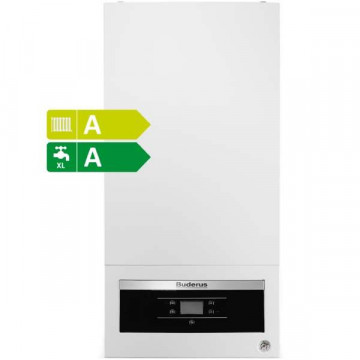

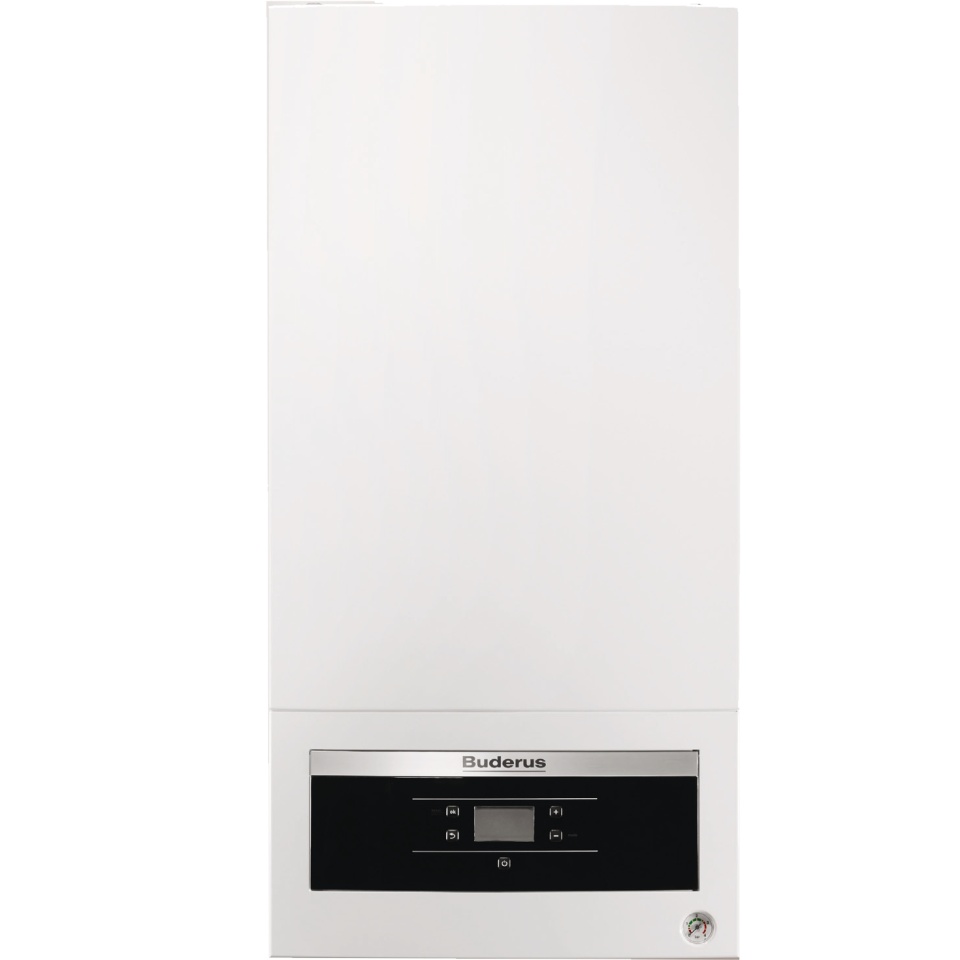

Gas condensing Boiler Buderus Logamax plus GB062-24 KD H V2

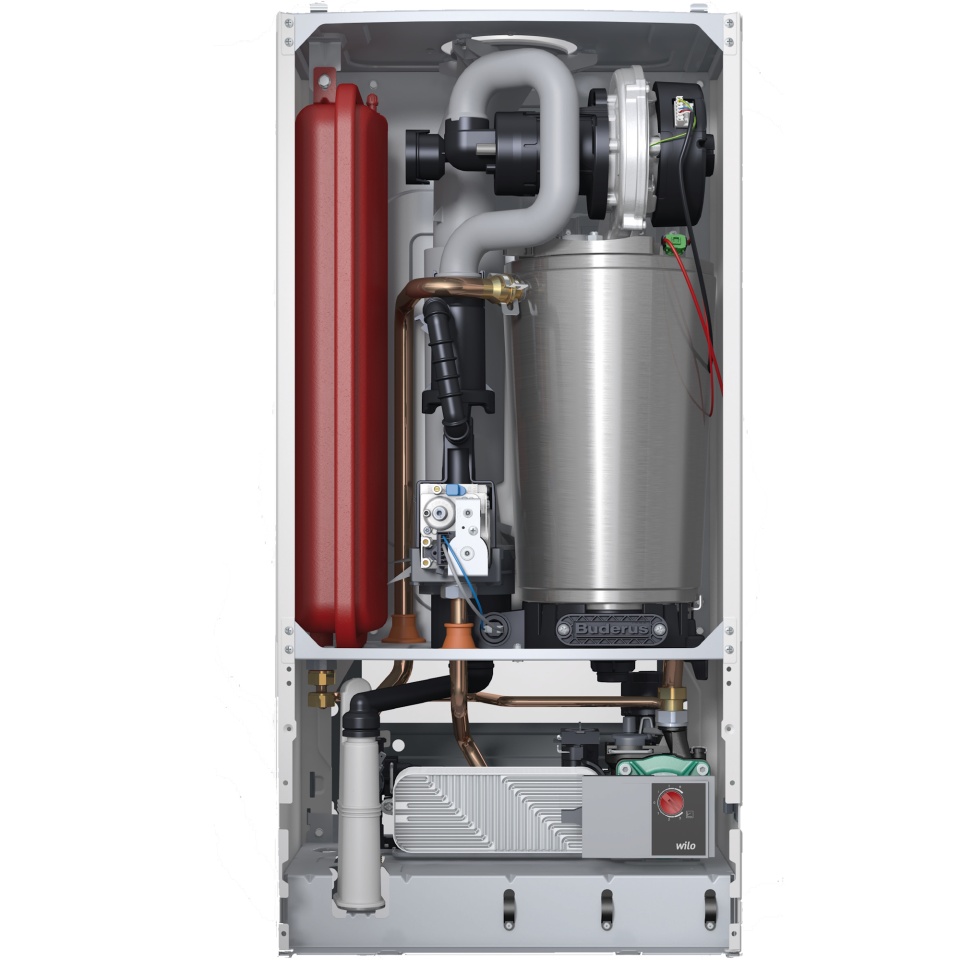

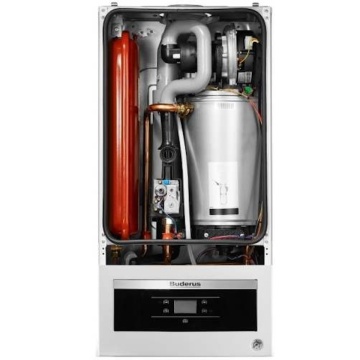

GB062-24 KD is a gas boiler with integrated pump for the heating circuit, 3-way valve and plate heat exchanger for heating and domestic hot water preparation with the countercurrent principle.

The Boiler has a fan and works with forced draft

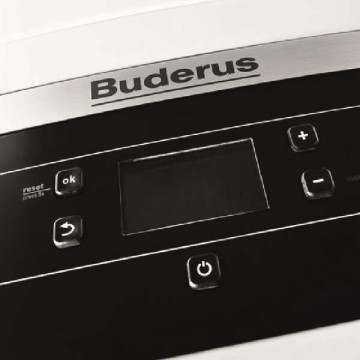

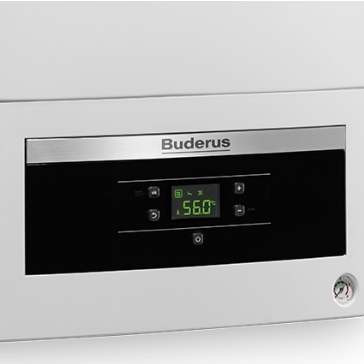

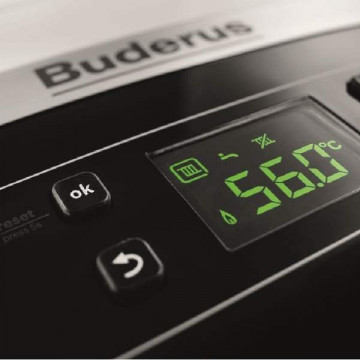

Digital display; electronic ignition; continuously modulated power
Suitable for underfloor heating installations
Blower (fan) with speed regulation
Premix burner; temperature sensor and thermostat for the heating system
The installation pump is Low-Energy; automatic ventilation system; safety valve, manometer, expansion vessel 8 liters
Temperature limiter; exhaust gas (120°C)
ACM priority; 3 way valve with motor
Plate heat exchanger for preparing domestic hot water
The delivery set includes the AZB flue gas exhaust accessories

Technical data:

Heating thermal power = 4.1-25.4 kW (at round/return 40/30oC); Heating thermal power = 3.7-24.1 kW (at round/return 80/60 grd C)
Hot water thermal power = 28.2 kW (on return/return 80/60oC)
Hot water flow (at 35oC) = 14 liters/min.; Specific flow according to EN625 (dT =30 K) = 13.3 l/min; pressure min. cold water =0.3 bar
Maximum temperature allowed per tour = 87oC; Allowed working overpressure = 3 bar
Electrical power consumed = 4.5-102 W; protection class = IP X4D
Power output min. heating curve 40/30°C =109%
Maximum gas consumption = 3.18 m3/h; Maximum flue gas temperature = 96oC
Noise level =50 dB
Flue gas connection (double, coaxial) = 60/100mm
Dimensions: WxLxH = 400x300x815 mm; Weight = 36 kg
Round/return connections = 3/4"; Cold/hot water connection = 1/2"; Gas connection = 1".
