Gas condensing Boiler Inidens 24/28 MI

Description

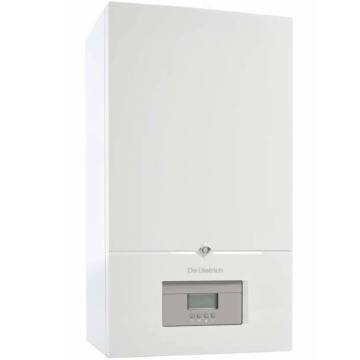

Gas condensing Boiler De Dietrich Inidens 24/28 MI

EASY TO USE

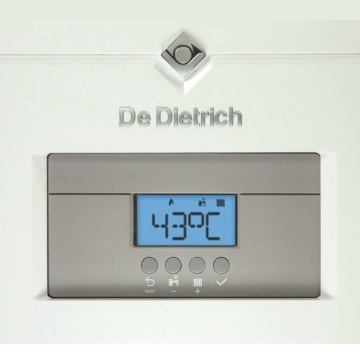

• Digital control panel with back-lighted LCD display
• Easy to use thanks to dedicated and independent push-buttons to set the domestic hot water and heating temperatures
• The display shows all the information and allows to set the functioning parameters clearly and simply.

COMPATIBLE WITH SMART TC° ROOM UNIT

FOR MORE COMFORT AND SAVINGS
Thanks to its associated application you will be able to access the following functionalities:
• remote management of heating and domestic hot water,
• Programming management according to your needs,
• Precise temperature control,
• Maintenance of your installation made easy thanks to remote, secured, on demand access by your installer,
• Malfunction alert directly to your smartphone.

ENERGY
• efficiency at part load up to 109,9 %
• A-labelling (ETAS 94%) according to the eco-design directive, combining the boiler with a room unit increases the system efficiency until A+ .
• Wide power modulation range from 20 to 100 % to adapt output to heating and domestic hot water needs and to reduce boiler cycling. This allows higher efficiency for better comfort and energy savings.

ENVIRONMENTAL FRIENDLY
• Already suitable to work with a mixture of up to 20% of Hydrogen to allow reduction of carbon footprint.
• NOx Class 6 according to EN 15502-1. < 32 mg/kWh.

COMFORT
• Quiet operation- Sound power level <49 dB(A) at nominal output for 20/24 MI execution.

EFFICIENT MATERIALS

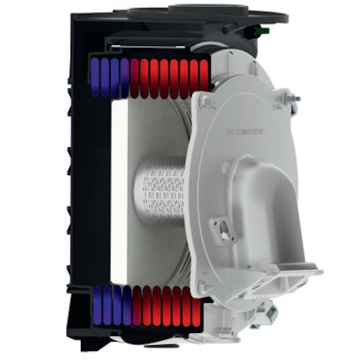

• Mono coil Stainless steel heat exchanger.
- High-quality stainless steel used, very tolerant of water quality and corrosion-resistant.
- Wide water passages to reduce the risk of scaling.
• 100% brass hydrobloc for tried-and-tested reliability.
• High efficiency modulating pump with low electricity consumption.
• User friendly LCD control panel with backlight and 4 push buttons.
• Digital water pressure display with refill notification.

HOT WATER COMFORT
APPLICATION
Plentiful pure domestic hot water at a stable temperature whenever you need it, that’s Inidens :
• DHW flow sensor ensuring a high DHW quality.
• Combi version with a flow rate of 16.2 litres perminute* maximum performance with Inidens 30/35 MI.

Specifications Inidens

Boiler: Combi Combi Combi
Output range at 50/30° 6.3 - 26.1 kW
Output In hot water mode 28 kW
Specific flow rate in DHW at ∆T = 30K (EN 13203-1) 13.4 L/min
Dimensions W x H x D 395 x 700 x 285 mm
Net weight 30 kg
