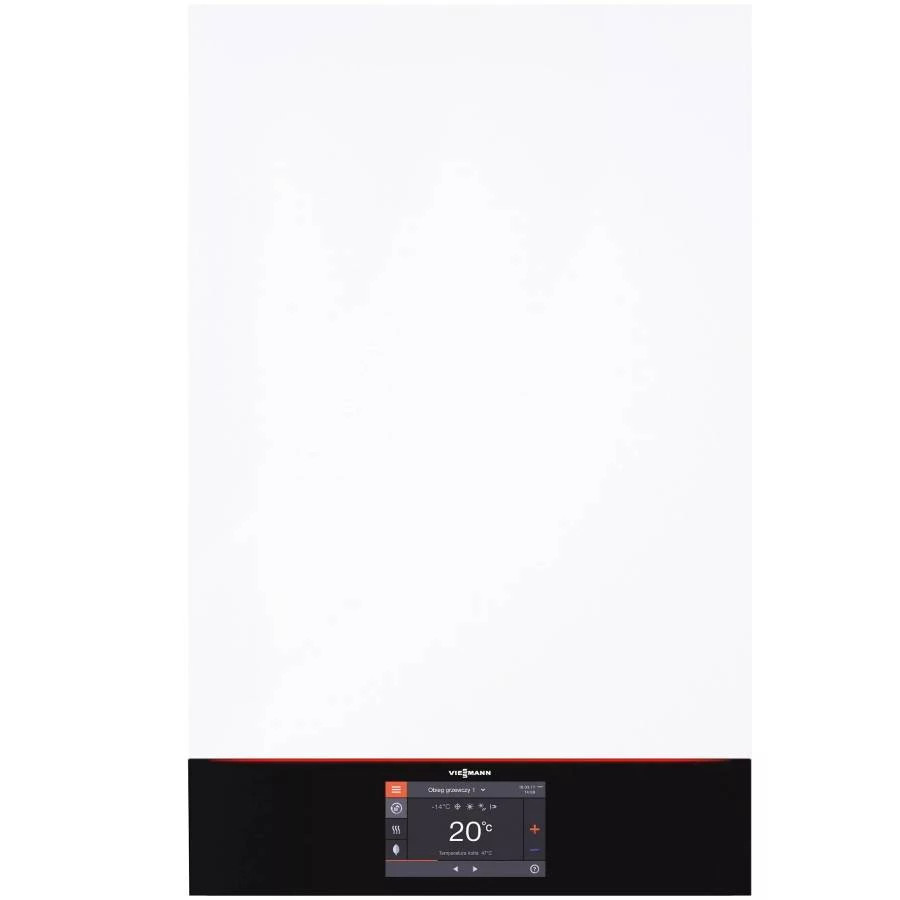

Gas condensing storage combi Boiler Vitodens 222-W 32 display 7

Description

Gas condensing storage combi Boiler Vitodens 222-W 32 display 7"

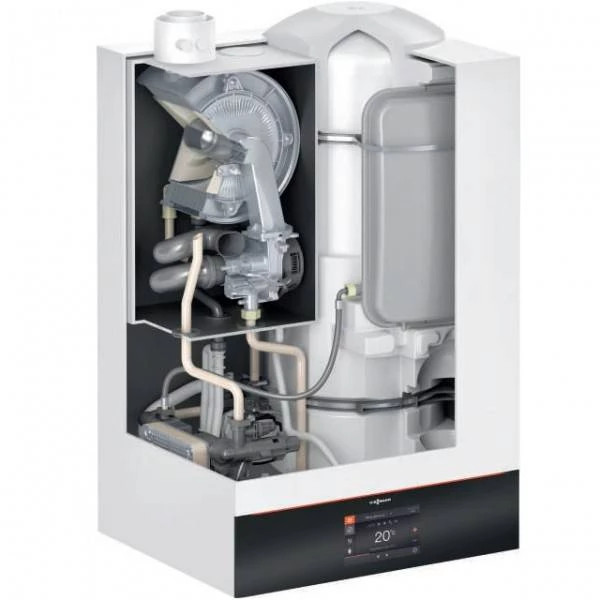

The Vitodens 222-W is a particularly space saving, wall mounted gas condensing storage combi boiler for situations where high DHW convenience is required. The heat cell comprises the proven stainless steel Inox-Radial heat exchanger, the modulating MatriX-Plus gas burner and the automatic Lambda Pro Control Plus combustion controller.

The integral 46 l stainless steel loading cylinder offers the same DHW convenience as a separate 150 l DHW cylinder with internal indirect coil. DHW is available immediately and constantly at the required temperature, even simultaneously at different draw-off points.

In addition to the loading cylinder, all the most important system components, such as the heating water expansion vessel, pumps and safety valves, are integrated and fully fitted. All this –with a total weight of max. 68 kg and in a casing that fits into a standard 600 mm wide kitchen unit space.

Recommended applications

■ Installation in detached and terraced houses
■ New build (e.g. prefabricated houses and developer projects):Installation in utility rooms and attics
■ Modernisation: Replacement of gas system boilers, floorstanding atmospheric gas boilers and oil/gas boilers with DHW cylinders installed below.
■ Replacement of boilers in various types of systems, including those with several heating circuits and underfloor heating

Benefits at a glance

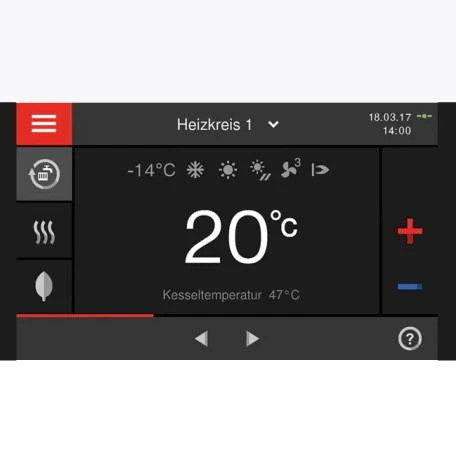

Control unit with 7 inch screen
■ Seasonal central heating energy efficiency ηS up to 94 % (label A).
■ Low cycle frequency, even with low heat demand, due to optimised pauses and a wide modulation range down to 1:17
■ Durable and efficient thanks to Inox-Radial stainless steel heat exchanger
■ MatriX-Plus gas burner with Lambda Pro Plus combustion controller for permanently high efficiency and clean combustion.
■ Power saving, high efficiency circulation pump
■ Colour touchscreen with plain text and graphic display, commissioning assistant, energy consumption indicators and the option of operation from a mobile device
■ Web-enabled through integral WiFi interface for operation and service via Viessmann app

Delivered condition

Gas condensing boiler with Inox-Radial heat exchanger, modulating MatriX-Plus gas burner for natural gas and LPG to DVGW Code of Practice G260 [Germany], expansion vessel, variable speed high efficiency circulation pump and integral stainless steel DHW loading cylinder. Fully plumbed and wired.
Weather-compensated or constant temperature control unit with integral WiFi interface.
Colour of the epoxy-coated casing: White.
Integral diaphragm expansion vessel (10 l capacity).
Integral refilling device for heating water.
Preset for operation with natural gas. Conversion within gas groups
E/LL is not required. The conversion to LPG is made at the control unit (a conversion kit is not required).

Specification

Gas boiler, type B and C, category II2N3P
Type B2LF
Rated heating output range (to EN 15502-1)
TF/TR = 50/30 °C Natural gas kW 1.9 - 32.0, LPG kW 2.5 - 32.0
TF/TR = 80/60°C Natural gas kW 1.7 - 29.3, LPG kW 2.2 - 29.3
Rated heating output for DHW heating Natural gas kW 1.7 - 33.9, LPG kW 2.2 - 33.9
Rated heat input (Qn) Natural gas kW 1.8 - 29.9, LPG kW 2.3 - 29.9
IP rating to EN 60529 IP X1
NOX Category 6
Gas supply pressure Natural gas 20 mbar, LPG 50 mbar
Max. permiss. gas supply pressure Natural gas mbar, LPG  57.5mbar
Sound power level (to EN ISO 15036-1)
– At partial load 32 dB(A)
– At rated heating output (DHW heating) 52 dB(A)
Rated voltage 230 V, Rated frequency 50 Hz
Appliance protection 6.3 A, Backup fuse (power supply) 16 A
RF module (integral) WiFi frequency band MHz 2400 - 2483.5, Max. transmitting power dBm 17
Low power radio frequency band MHz 2400 - 2483.5, Max. transmitting power dBm 6
Supply voltage 24 V
Power consumption 4 W
Power consumption in the delivered condition (incl. circulation pump) 110 W
Permissible ambient temperature
– During operation °C +5 to +35
– During storage and transport °C -5 to +60
Electronic temperature limiter setting (TN) 91°C
Electronic temperature cut-out setting 110°C
Weight
– Excl. heating water and DHW 67.8 kg
– Incl. heating water and DHW 120.0 kg
Water capacity (excl. diaphragm expansion vessel) 3 l
Max. flow temperature 82°C
Nominal circulating water volume At TF/TR = 80/60°C 1374 l/h
Expansion vessel Capacity 10 l
Pre-charge pressure 0.75 bar
