H-piece valves 003L0221 RLV-KS 20 Straight

Description

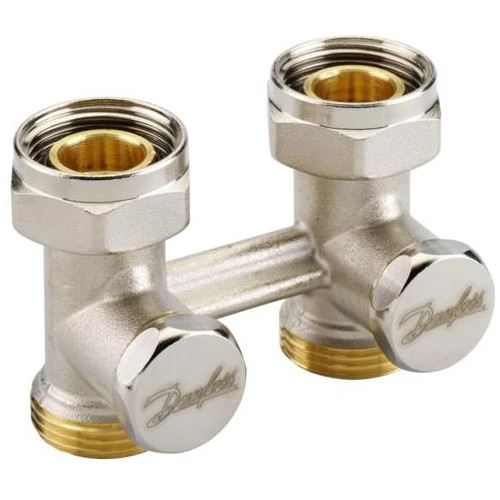

H-piece valves Danfoss 003L0221 RLV-KS 20 Straight

Standard H-piece with shut-off.

By means of the H-piece valve type RLV-KS, every valve radiator with a centre distance between the connections of 50 mm can be blocked individually, e.g. in order to carry out trouble-free maintenance without affecting other parts of the system.
H-piece valve type RLV-KS is nickel plated and is available in straight and angle versions.
The H-piece can be used directly for radiators with an external thread of G ¾ A. With a selfsealing adpater the H-piece can be used for radiators with an internal thread of G ½ as well.
Connection to copper, soft steel, PEX and Alupex pipes is made with Danfoss compression fittings.

In order to avoid deposition and corrosion, the composition of the hot water should be in accordance with the VDI 2035 guideline (Verein Deutscher Ingenieure).

Product details

Gross weight 0.34 kg, Net weight 0.34 kg
Application 2-pipe system
Connection to radiator G 3/4 A
Connection to system G 3/4
Description Standard H-piece with shut-off
Design Straight
Flow temperature [°C] [Max] 120 °C
Kvs values [m³/h] 1.3 m³/h
Label product Yes
Product group H-piece valves
REACH Candidate List substances >0.1% Lead
Surface Nickel plated
Test pressure [bar] 16 bar
Type RLV-KS
Valve size 20
Working pressure [bar] [Max] 10 bar
