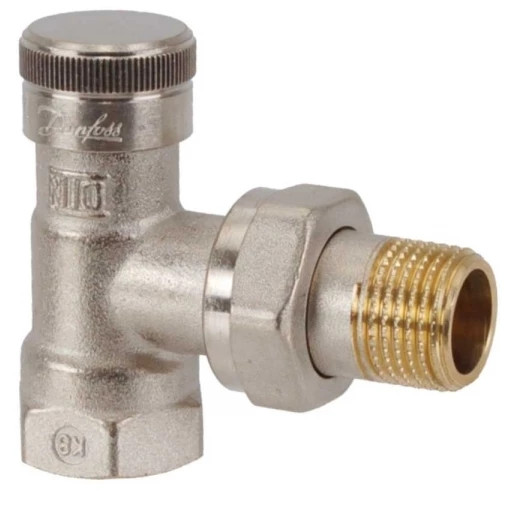

Lockshield Valves 003L0143 RLV DN 15 Angle

Description

Lockshield Valves Danfoss 003L0143 RLV, DN 15, Angle, Standard, Internal thread Danfoss 003L0143

Drain-off feature

By means of a lockshield valve, type RLV, every radiator can be shut off individually to allow trouble-free maintenance or repair without affecting other radiators in the system.

The lockshield valve, type RLV, is available in an angle version as well as a straight version.

Finish: plain brass or nickel plated.

The RLV lockshield valves can be preset to limit the max. water flow within the following setting area:
RLV 10: kv = 1.8 m3/h
RLV 15: kv = 2.5 m3/h
RLV 20: kv = 3.0 m3/h
Factory setting is fully open valve. Dimensions correspond to DIN 3842-1.

Product details

Gross weight 0.22 kg, Net weight 0.21 kg
Connection to radiator R 1/2
Connection to system Rp 1/2
Connection types Internal thread
Description Drain-off feature
Design Angle
Flow temperature [°C] [Max] 120 °C
Kvs values [m³/h] 2.5 m³/h
Product group Lockshield Valves
REACH Candidate List substances >0.1% Lead
Surface Nickel plated
Tailpiece type Standard
Test pressure [bar] 16 bar
Type RLV
UNSPSC CODE 40141616
Valve size DN 15
Working pressure [bar] [Max] 10 bar
