Indirect heated Water Tank in parallel mode EV13S+17S 300 60

Description

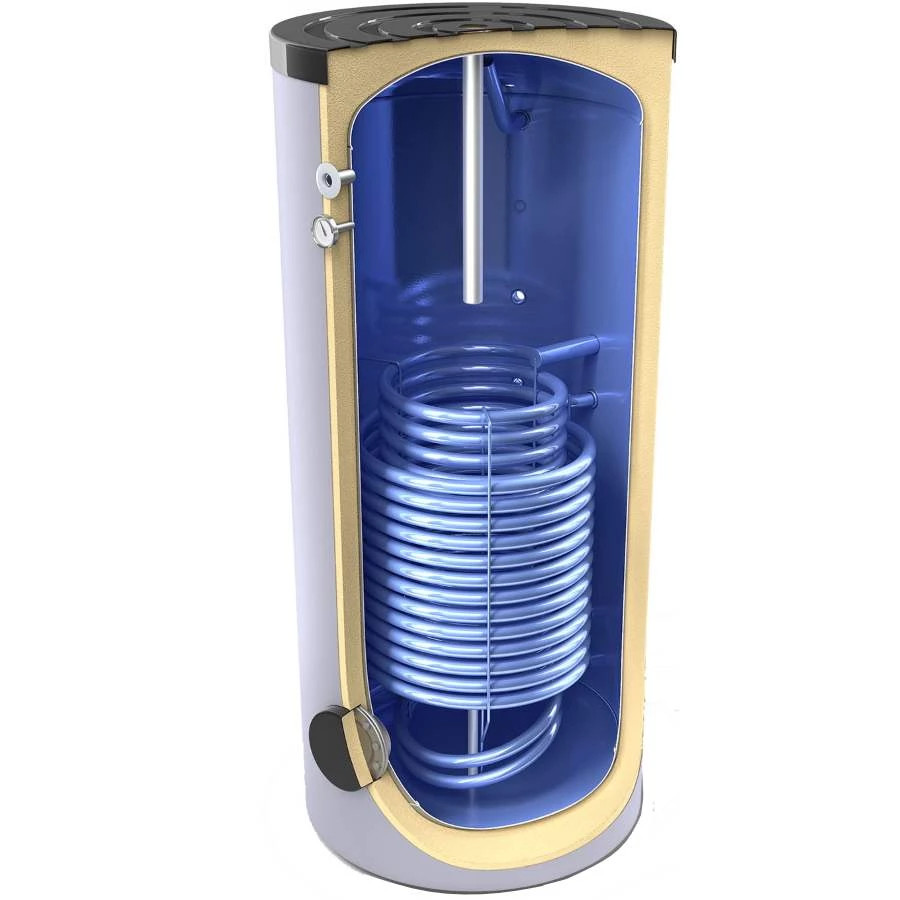

Indirect heated Water Tank for Solar / Boiler systems in parallel mode TESY EV 13S+17S 300 60

Floor-standing water tank for domestic hot water with two integrated high output heat exchangers

Volume 300 liters

Option to connect to two separate heat sources, heat pump installation or condensing boiler

• Helps reduce electricity costs without changing the amount of hot water with two built-in heat exchangers with large surface
• Suitable for working with two energy sources
• Technology for efficient high density PU insulation developed to keep the water hot for
  longer period of time and to help reducing heat losses.
• CrystalTech PRO High-quality enamel coating that promotes longer life
• Anode protectors for additional anti-corrosion protection of the water tank
• Robotic welding technology that achieves quality welding heating elements
• Service opening for easy cleaning and maintenance
• Recirculation opening

Technical Data

Capacity 275 L
Net weight 112 kg
Insulation 50 mm
Heat exchanger surface S1 1.55 m²
Heat exchanger surface S2 1.45
Heat exchanger capacity S1 9.5 L
Heat exchanger capacity S2 8.8 L
Heat losses ∆T 45K 68 W
Energy class B
Maximum
operational temperature 95 °C
Diameter 650 mm. Minimum height of the premise 1560 mm
