🏷️ Ferroli Ecounit F 300-2C Indirect Solar Water Heater 300L 2 Coils | Termix.ro
Description

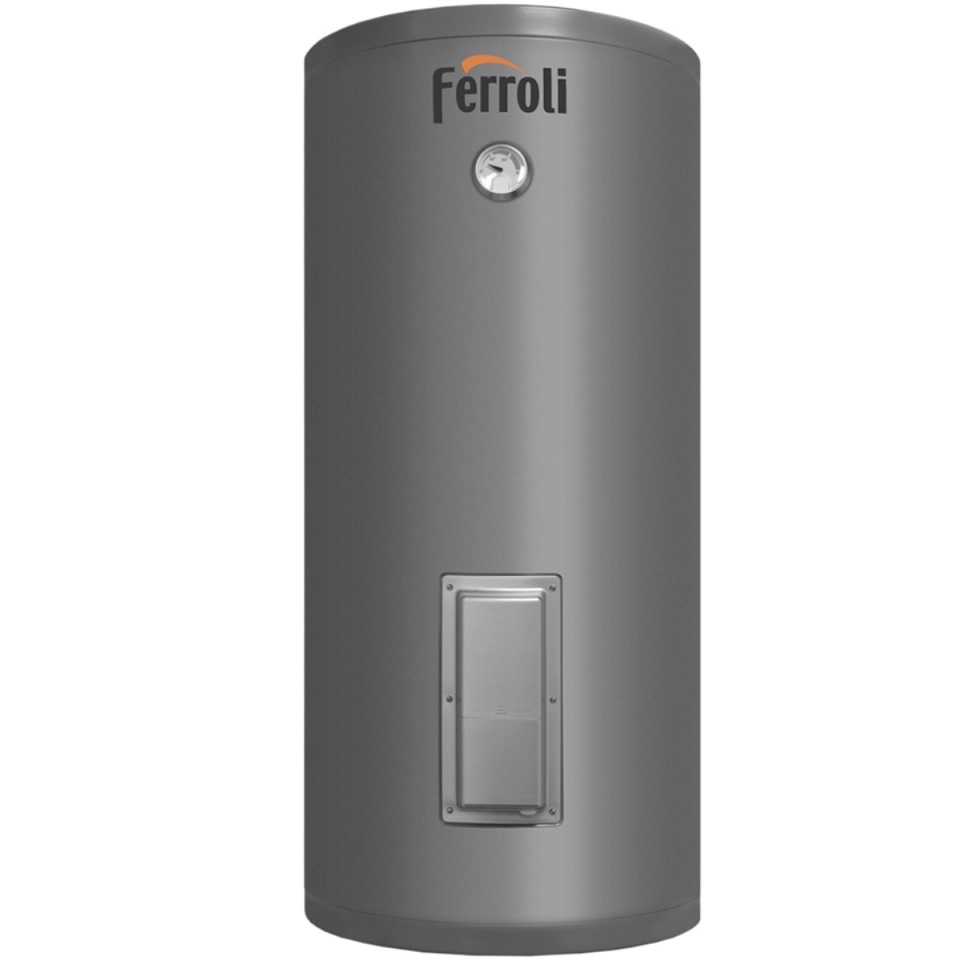

☀️ Ferroli ECOUNIT F 300-2C Indirect Water Heater – 300 Liters with Dual Heat Exchangers & Electric Backup
Are you searching for a high-capacity, energy-efficient solution to manage hot water demands from multiple energy sources? 🏠 The Ferroli ECOUNIT F 300-2C 300-liter indirect water heater is engineered specifically for large residential properties, detached houses with high hot water consumption, or homes with multiple bathrooms.
Equipped with two vitrified internal heat exchangers (coils), this cylinder enables seamless bivalent heating. You can connect a solar thermal collector system to the bottom coil (S2, featuring a large 1.00 m² surface area) and pair your central heating boiler, wood/pellet stove, or heat pump with the top coil (S1, 0,72 m²).
Additionally, the unit features a factory-fitted 1500 W electric backup element, guaranteeing a continuous domestic hot water (DHW) supply even during low solar radiation periods or when the primary boiler is turned off.
🚀 Key Advantages of the Ferroli ECOUNIT F 300-2C
-
🔄 Bivalent Heating (Dual Coils): Allows simultaneous connection to solar panels and a central heating unit, drastically reducing energy costs.
-

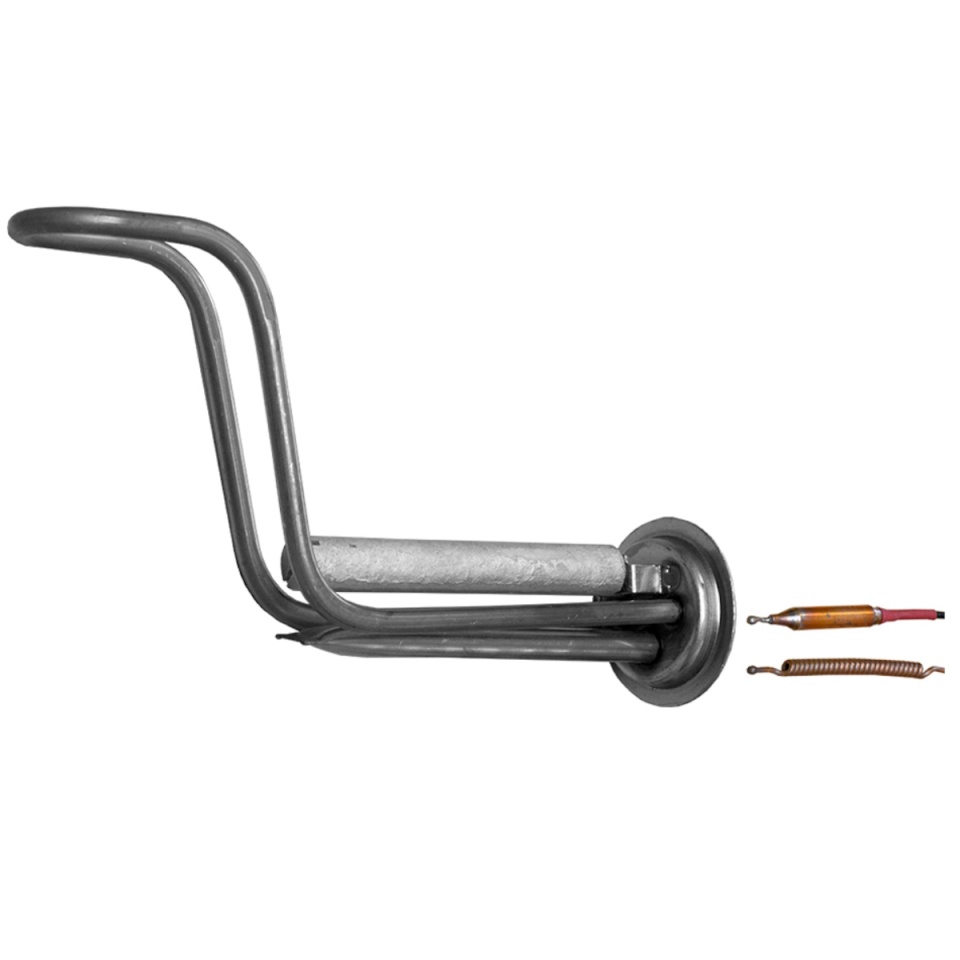

⚡ Integrated 1.5 kW Heating Element: Offers complete peace of mind and operational independence year-round.
-
🛡️ Superior Corrosion Protection: Electrostatically applied silicon-enameled interior coating combined with an oversized magnesium anode to prevent limescale buildup and corrosion.
-
🔥 High-Efficiency Thermal Insulation: Thick, CFC-free polyurethane foam insulation minimizes standing heat loss and maximizes energy savings.
-

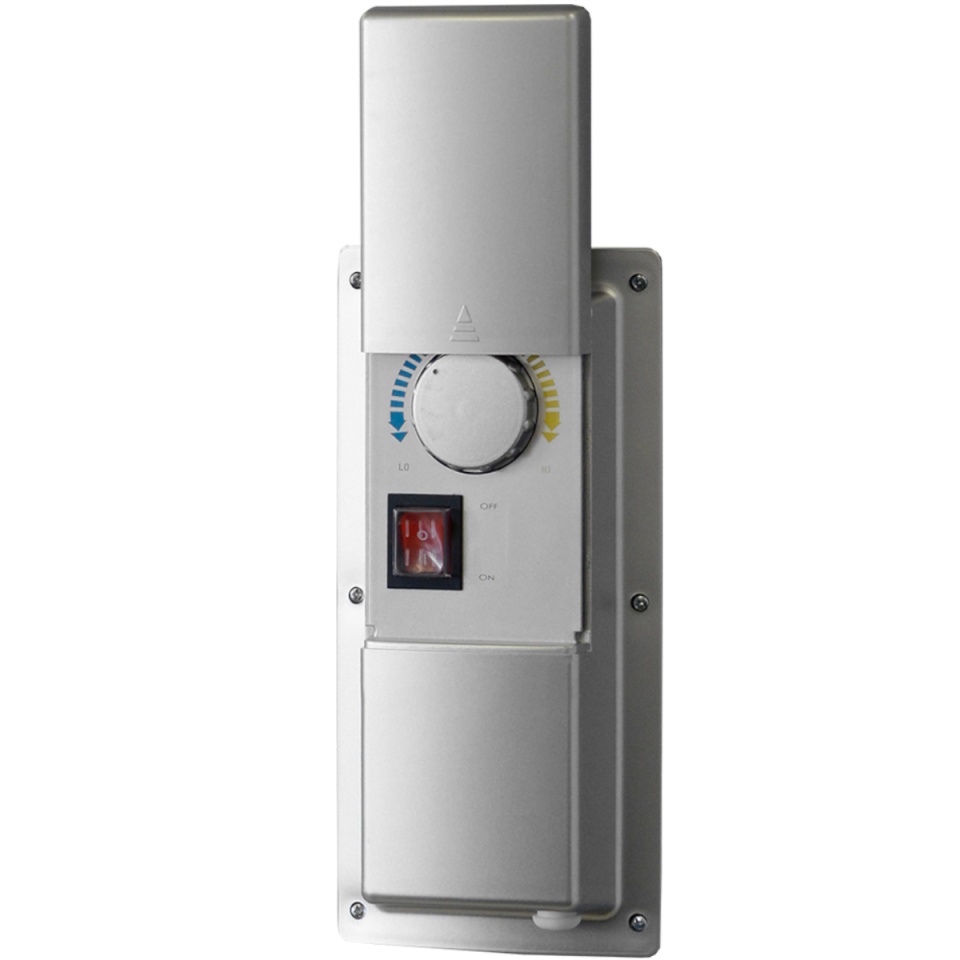

🌡️ User-Friendly Control Panel: Includes an adjustable thermostat, external temperature gauge, and built-in thermal safety cutoff.
📊 Technical Specifications (Ferroli ECOUNIT F 300-2C)
| Technical Parameter | Value / Detail |
| Brand & Model | 💎 Ferroli ECOUNIT F 300-2C |
| Total Capacity | 300 Liters |
| Top Coil Surface Area (S1) | 0.72 m² |
| Bottom Coil Surface Area (S2) | 1.00 m² |
| Max. Operating Pressure (DHW) | 8 bar |
| Max. Operating Temperature (DHW) | 95 °C |
| Power Supply | 230 V / 50 Hz |
| Electric Heating Element Power | 1500 W (1.5 kW) |
| Net Weight | 103 kg |
| Dimensions (Diameter x Height) | 620 x 1535 mm |

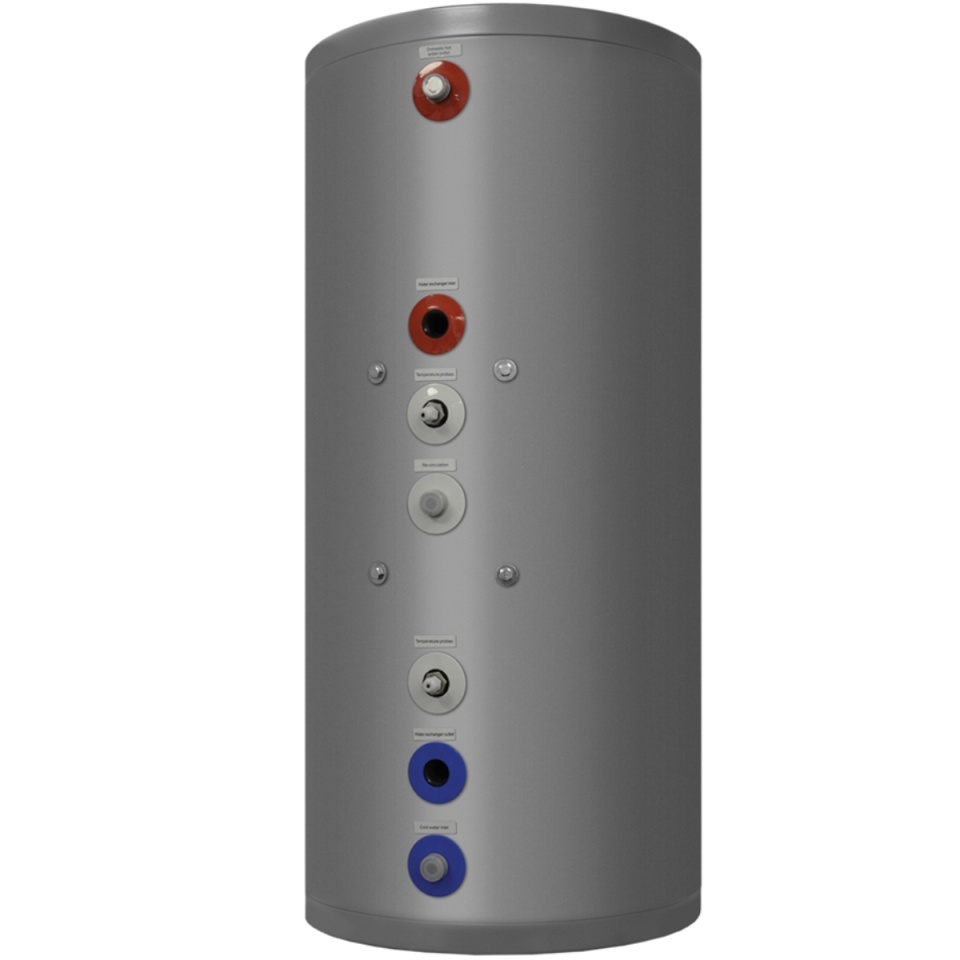

| DHW Connections | 1" BSP |
| Top Coil Connections (S1) | 3/4" BSP |
| Bottom Coil Connections (S2) | 3/4" BSP |
| Recirculation Connection | 3/4" BSP |
💬 Frequently Asked Questions (FAQ) – Schema Ready
❓ How are the two coils in the Ferroli Ecounit F 300-2C connected?
📢 Typically, the lower coil (S2)—which features a larger surface area of 1.00 m²—is connected to the solar thermal system to maximize solar energy harvesting. The upper coil (S1) (0.72 m²) is connected to your primary heating source (gas, oil, biomass boiler, or heat pump) for auxiliary heating when needed.
❓ What size home is a 300-liter indirect water heater suitable for?
📢 The 300-liter capacity is ideal for larger families (4–6 people), properties with 2–3 bathrooms, or high-flow domestic applications. The 1" DHW connections ensure optimal water flow across multiple outlets simultaneously.
❓ Does this unit come with an electric immersion heater included?
📢 Yes, the Ferroli ECOUNIT F 300-2C comes factory-equipped with a 1.5 kW (1500W) electrical heating element and an adjustable thermostat.
