Infrared Motion Sensor VT-8004

Description

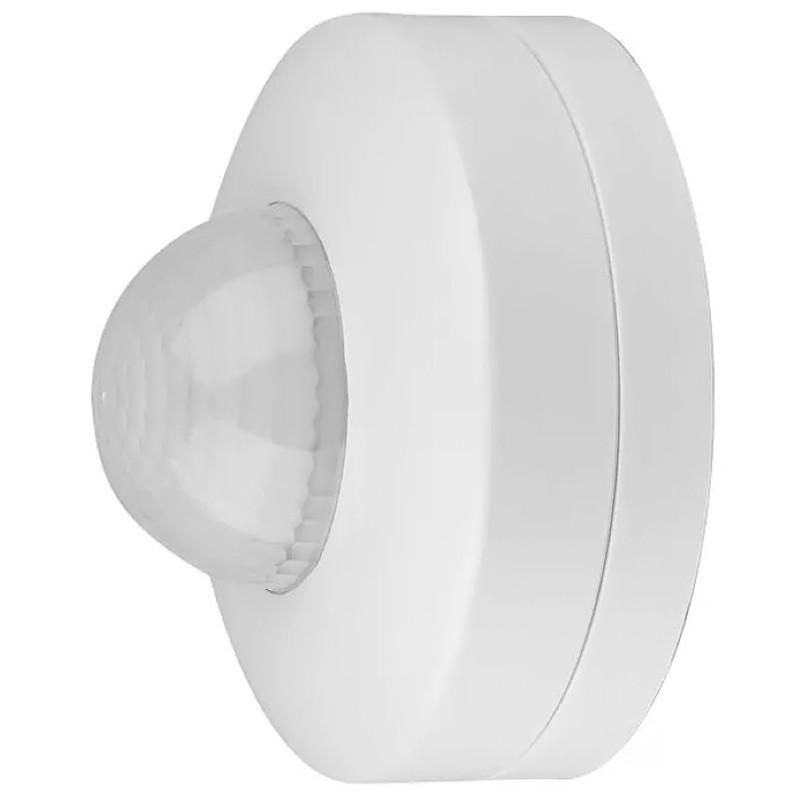

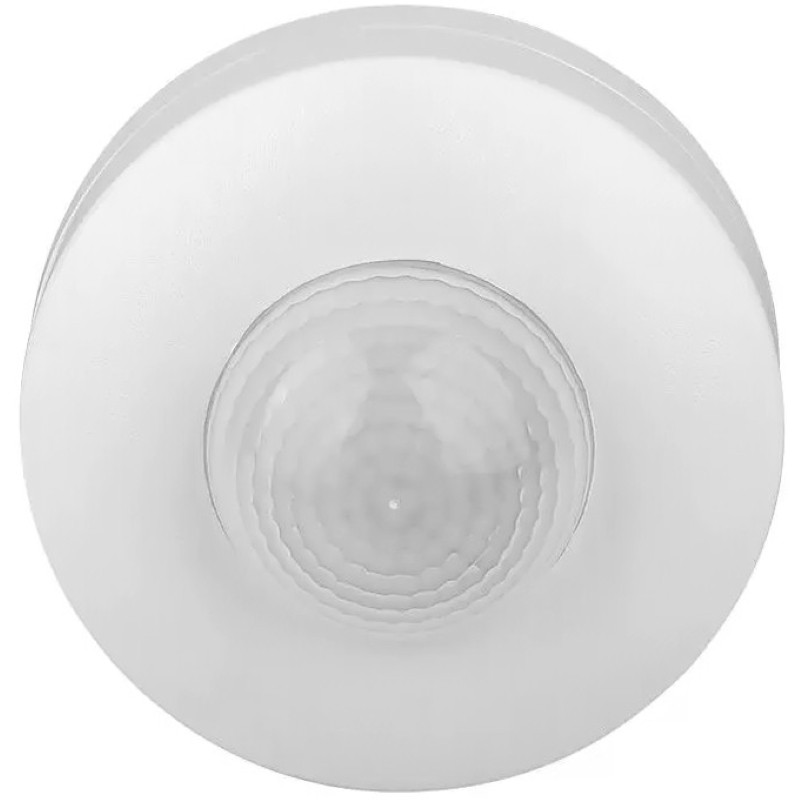

Infrared Motion Sensor V-Tac VT-8004

• Infrared motion sensor with integrated circuit can detect heat signatures
• Adjustable Time Delay - Ambient light - Detection distance for versatile scenarios
• High quality receptors for instant functioning
• Effective system for energy saving and safety
• Compatible with V-TAC models

TECHNICAL INFO

Body Type PC
Detection Angle 360
Detection Distance Max 12m(<24°C)
Detection Range 360°
IP Rating IP20
Rated Load Max 300 W LED
Unit Color White
Ambient Light <3-2000LUX (adjustable)
Detection Motion Speed 0.6-1.5m/s
Dimmable N/A
Installation Type Surfaced
Input Power AC:220-240V, 50/60Hz
Operation Temperature -25°C to +50°C
Model VT-8004
Dimensions Ø88x55 mm
Sensor Type Infrared

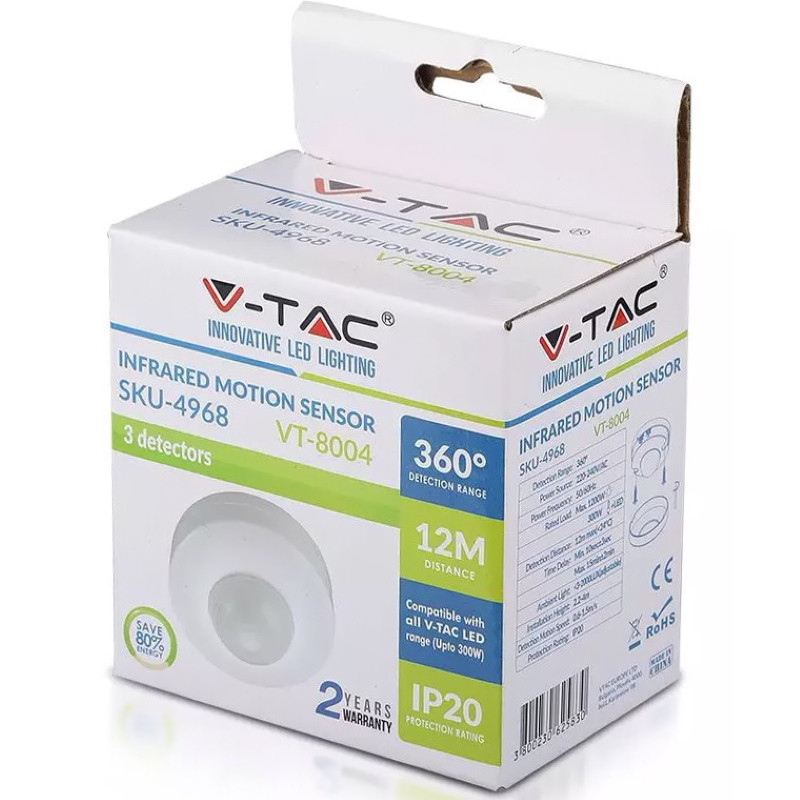

Packaging
Length (Box) mm 62
Width (Box) mm 92
Height (Box) mm 92
Unit CBM 0.000648
Gross Weight (Kgs) 0.15
