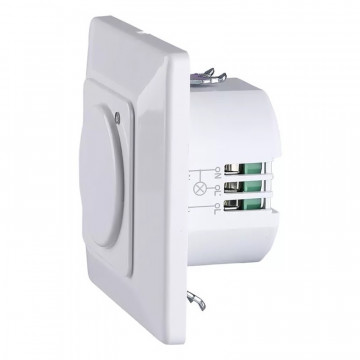

Microwave Sensor VT-8023

Description

Microwave Sensor V-Tac VT-8023

• Microwave motion sensor uses high frequency electromagnetic waves and integrated circuits
• Remote sensing and detection across barriers
• High frequency detection system for effective operation
• Automatism-Convenience-Safety-Energy Saving
• Adjustable Time Delay - Ambient light - Detection distance for versatile scenarios
• Compatible with V-TAC models

TECHNICAL INFO

Body Type Plastic
Detection Angle 180
Detection Distance 5m-15m (adjustable)
Detection Range 360°
IP Rating IP20
Rated Load Max 300W LED
Unit Color White
Ambient Light <3-2000LUX(adjustable)
Detection Motion Speed  0.6-1.5m/s
Dimmable N/A
Input Power AC:220-240V, 50/60Hz
Long Life 20,000 Hours
Model VT-8023
Dimensions 80x80x32 mm
Sensor Type Microwave Sensor
Packaging
Length (Box) mm 60
Width (Box) mm 85
Height (Box) mm 85
Unit CBM 0.000612
Gross Weight (Kgs) 0.125
