Instal Expert package for total protection of the thermal installation

Description

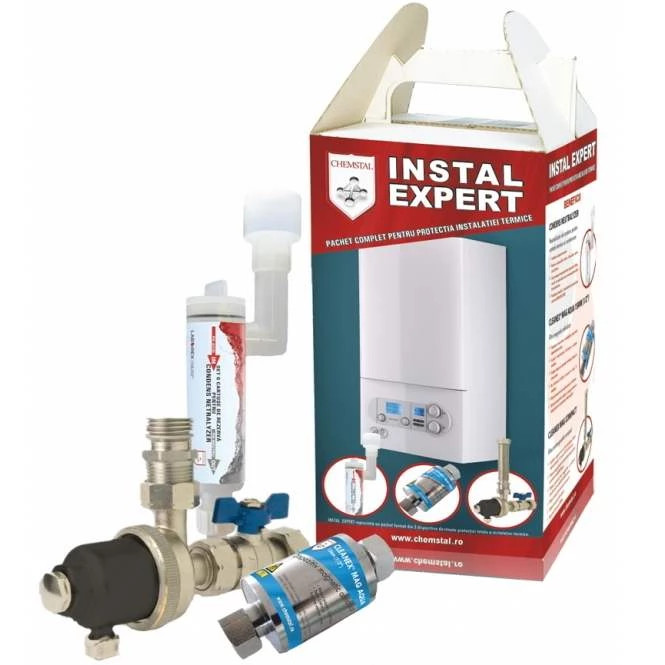

INSTAL EXPERT is a package consisting of 3 devices intended for total protection of the thermal installation.

Benefits:
CLEANEX MAG COMPACT 3/4" (22MM) - Compact antimagnetite filter
✔ Easy installation through included fitting set (3/4 "brass faucet, stainless steel flexible fitting)
✔ Magnetic filtering using 6000 Gauss permanent magnet
✔ Non-magnetic particle filtering using 800 micron stainless steel sieve
✔ Compact composite glass
✔ Brass coupling cap
✔ EPDM gaskets

CLEANEX MAG AQUA 1/2" (15MM) - Magnetic anti-limescale device
✔ Protects most installations by preventing limestone deposits
✔ Ensures the efficient operation of the equipment
✔ Does not affect the normal flow of water in the installation
✔ Does not generate additional costs in use
✔ Solid mechanical structure with strong integrated magnet for long operation

CONDENS NEUTRALYZER - Condense neutralizer for condensing boilers
✔ Easy installation and operation
✔ Spare cartdriges available for replacing the filter cartridge
✔ Protects the environment and sewage pipes according to NTPA 002-2002

Technical characteristics:

CLEANEX MAG COMPACT 3/4" (22MM)
Magnet: 6000 Gauss
Level of filtration: 800 microni
3/4 "ATI Brass Head
Filter from AISI 316 mesh
Ball valve: Brass 3/4 "M / F
O-EPDM ring

CLEANEX MAG AQUA 1/2" (15MM)
Connection size: 1/2 "(15mm)
Power: 30.000 Gauss
Nominal flow rate: 0.6 m3/h

CONDENS NEUTRALYZER
Body: polypropylene (PP)
Hose: polypropylene (PP)
Fastening system: polypropylene (PP)
Neutralization charge: calcium carbonate (CaCo3)
Hydraulic seals: EPDM
