Magnetic and dirt separator filter MF9000

Description

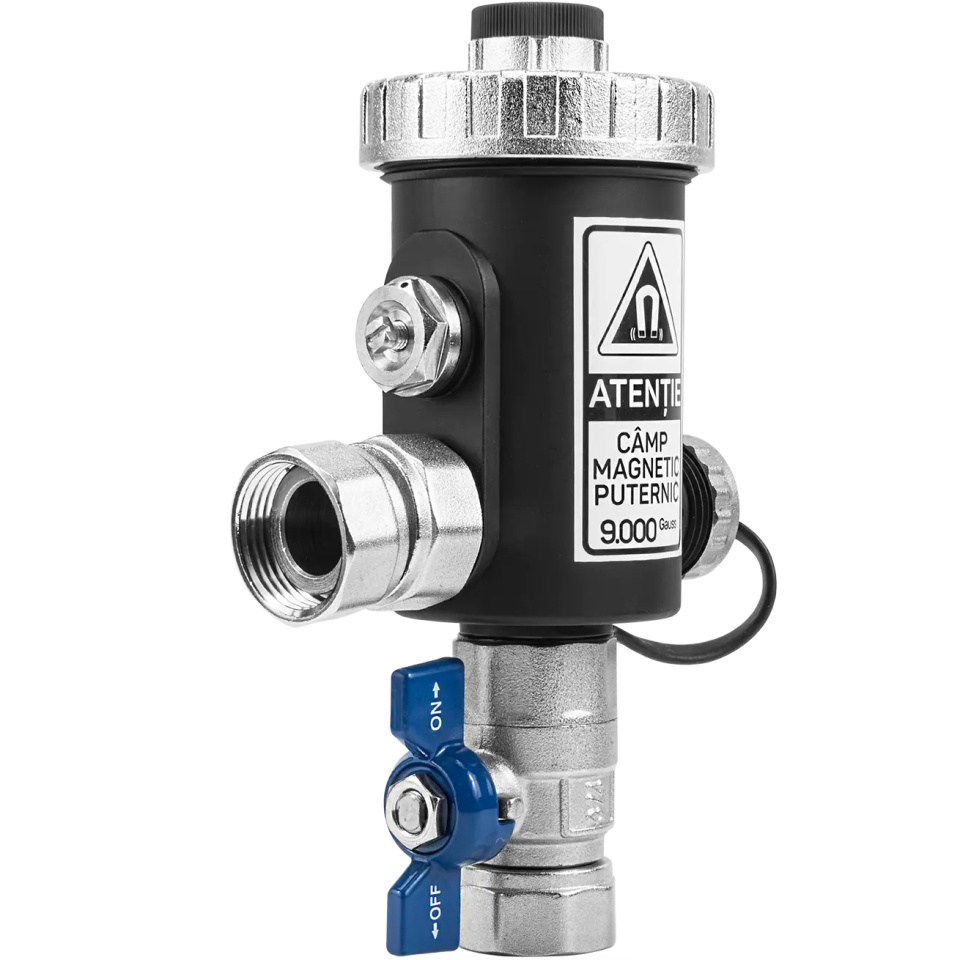

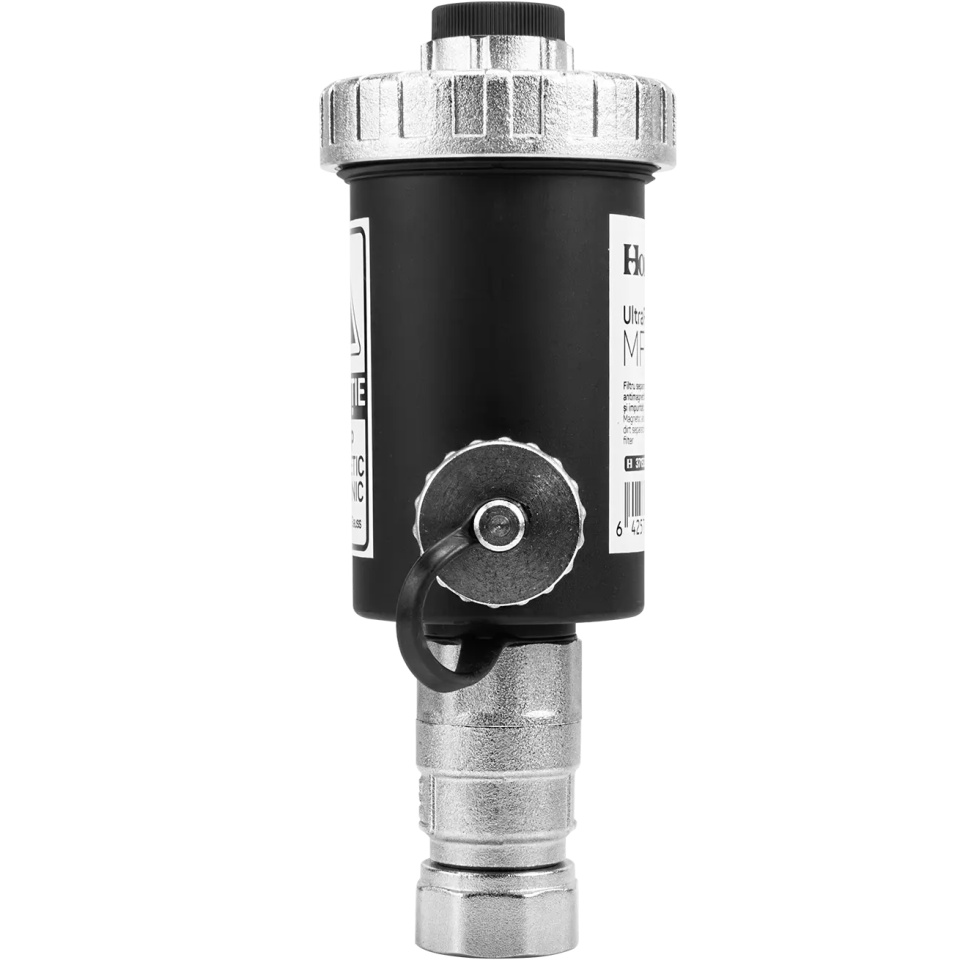

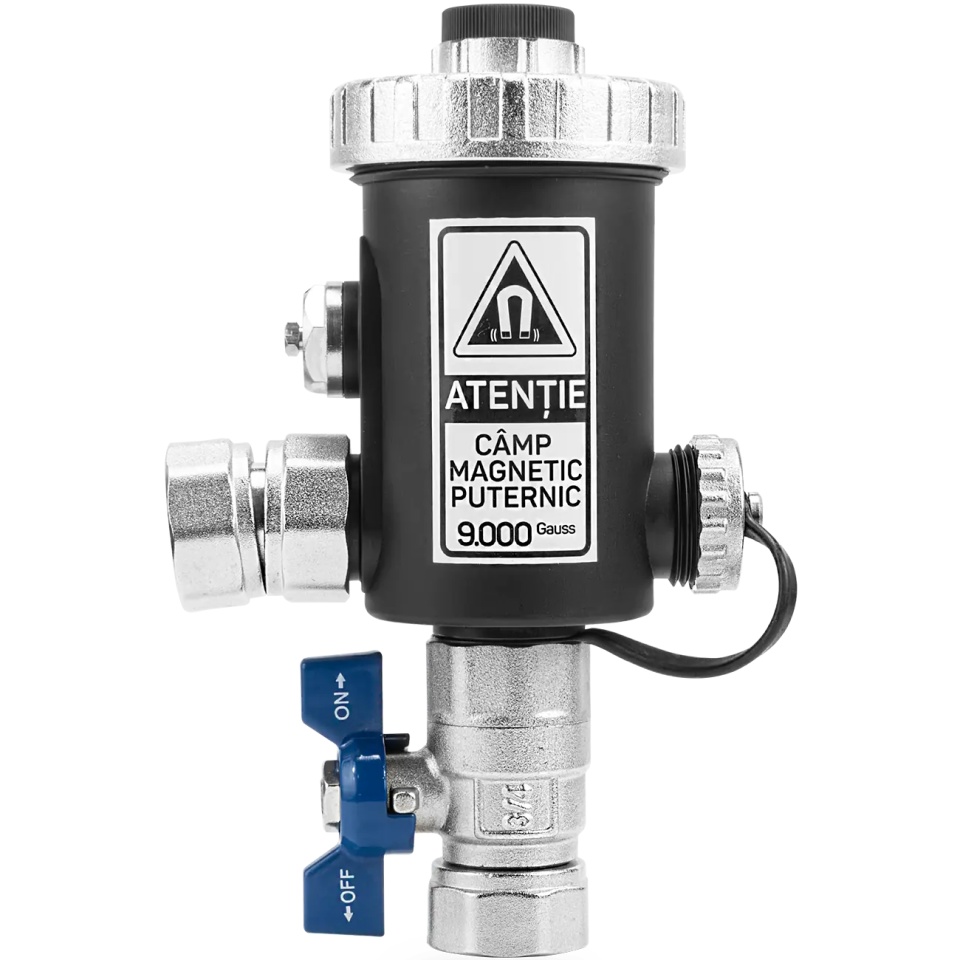

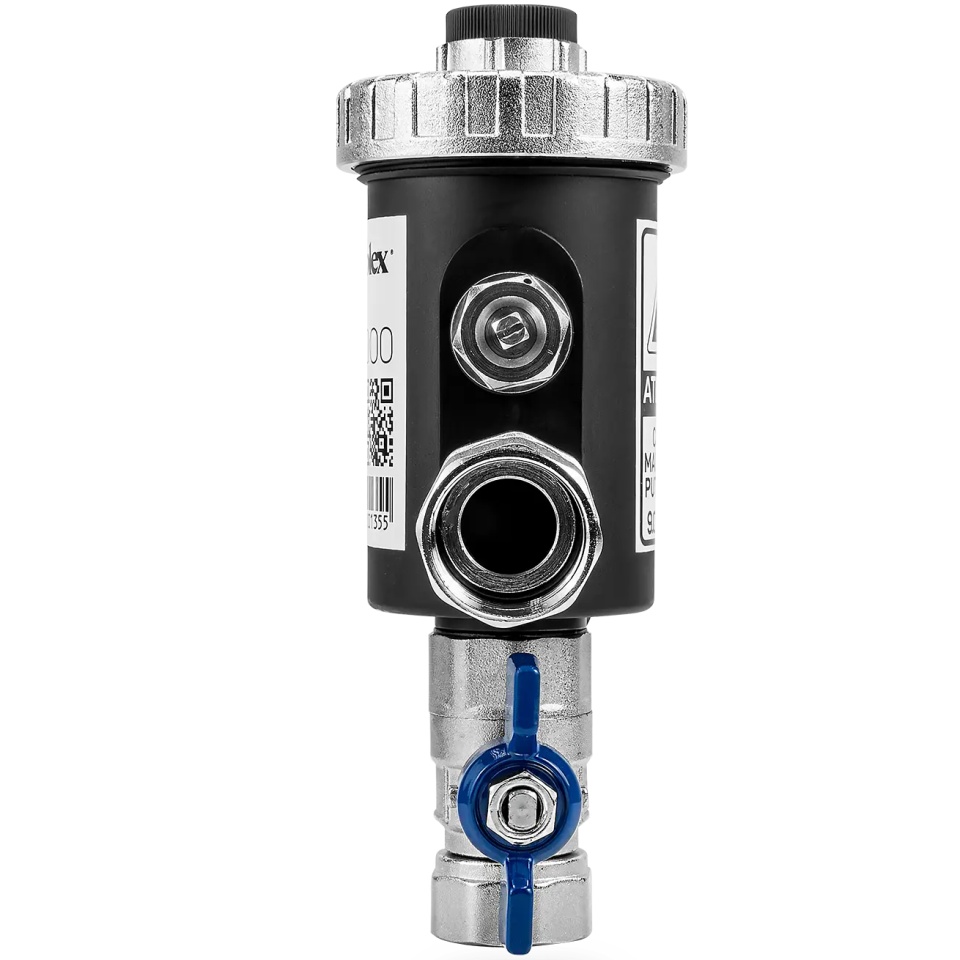

Magnetic and dirt separator filter Homplex MF9000

The Homplex MF9000 magnetic filter has been specially developed for heating systems – floor, radiator or solar.

The Homplex MF9000 magnetic filter protects, prevents and prolongs the life of the heating system and the heating circuit. It helps to remove iron oxide, deposits and impurities from the system resulting from installation or normal operation. High-performance neodymium magnetic rod with 3 segments. Fast cleaning in up to 5 minutes. High filtration capacity. High pressure resistant up to 1000kPa.

Notes

Use this filter only in underfloor or radiator heating circuits to protect the heating system from deposits.
Installation must be carried out by an authorised installer.
This filter contains a very strong magnet, protects the magnetic rod from ferrous objects and accidental impact.
Removes sensitive equipment that can be affected by strong magnetic fields, especially cards (with magnetic stripe) or medical equipment (implants, etc.).
Use only suitable protective and mounting equipment.
After mounting this filter will be under pressure and at high temperatures. Release the pressure and wait for the water in the installation to cool down for intervention. Danger of burns!
For your safety, before any intervention, check that the pipes and the boiler are properly grounded!

What is a magnetic filter?

A magnetic filter for underfloor heating systems is an ingenious and useful solution for optimising the performance of these systems. Placed within the water circulation circuit, this compact and easy-to-install device becomes an effective guardian of the flawless operation of underfloor heating. The powerful magnet inside the filter attracts and retains ferromagnetic particles, such as rust, metal fragments or limescale sediment, which can cause clogging or corrosion in the system.

As the heating fluid passes through the magnetic filter, it removes captured particles, keeping the pipes and components clean and free of build-up. This preventative action helps extend the life of the entire system, preventing damage or potential defects caused by impurities.

Another important advantage of the magnetic filter is that it reduces the need for regular maintenance and cleaning of equipment. By continuously filtering and removing magnetic particles, the risk of build-up in pipes and heat exchangers is minimised, thus counteracting reduced hot water flow and reduced system performance.

Installation of the filter is quick and can be carried out at various points in the water circuit, either before or after the circulation pump or before the heater. This versatility in installation makes it suitable for a variety of floor heating system configurations.

• 3-segment rod, min. 9000 Gauss NEODIM magnets
• Cup wrench included: Squeeze or separate the cup very easily with the included key.
• Additional filter sieve: Integrated high capacity dirt separator filter.

Specifications

Type of filtration Magnetic and dirt
Magnet type Permanent Neodim
Magnet power min. 9000 Gauss
Number of magnetic segments 3
Filtration rate <30 Liters/minute
Working temperature +4 ... +95⁰C
Working pressure 600 kPa
Maximum pressure 1000 kPa
Circuit isolation taps 1, normal thread, 3/4", nickel plated
Fittings 1, normal thread, 3/4" + Cap, nickel plated
Fittings colour Silver
Cup material Reinforced nylon
Cup colour Black
Mounting position 4 variations, read guide
O-rings EPDM
Positioning in the circuit Before the boiler
Total weight (with accessories) 680g
Size without attached fittings 80 x 133 x 66mm
Warranty 5 years
