Magnetic and dirt separator filter MF12000

Description

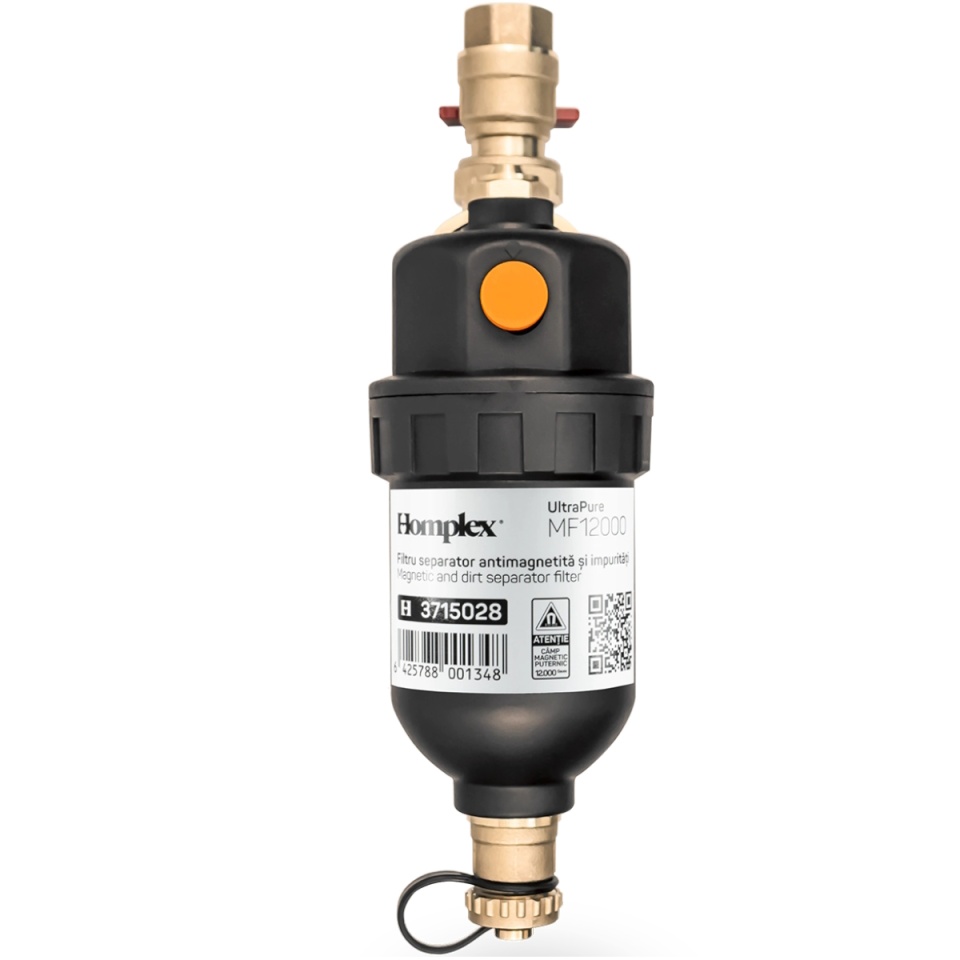

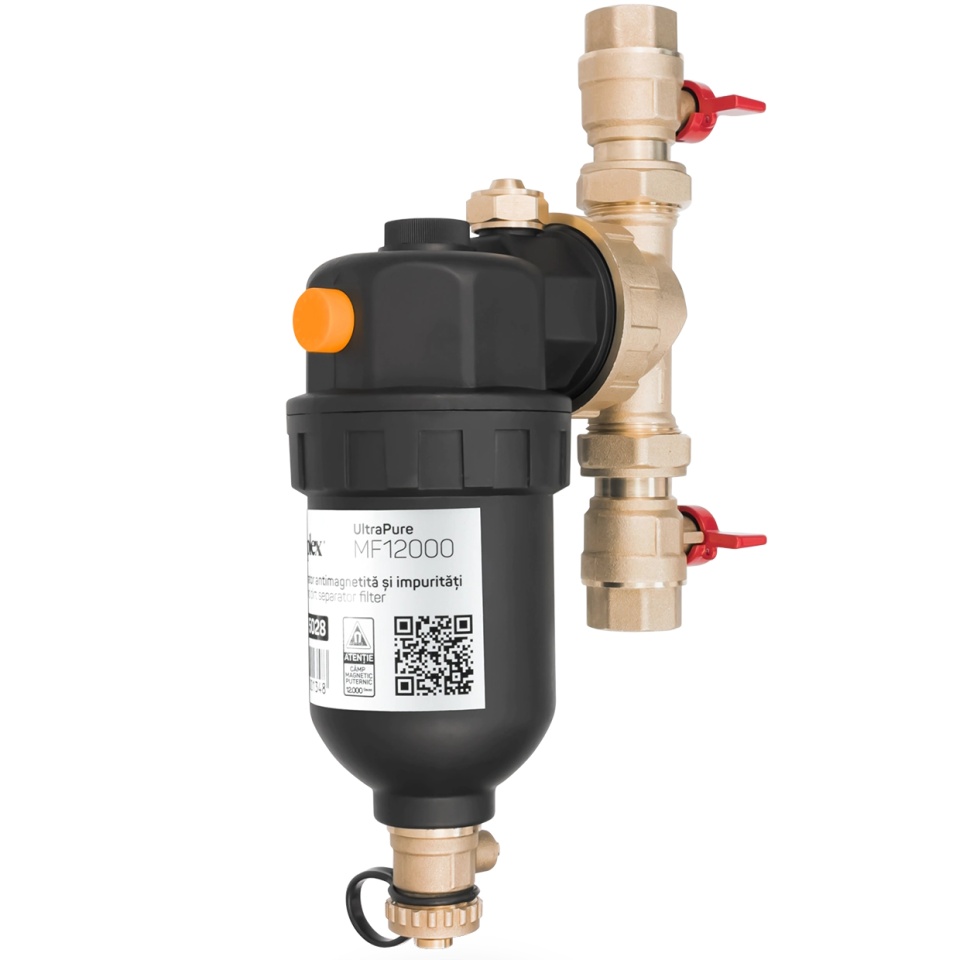

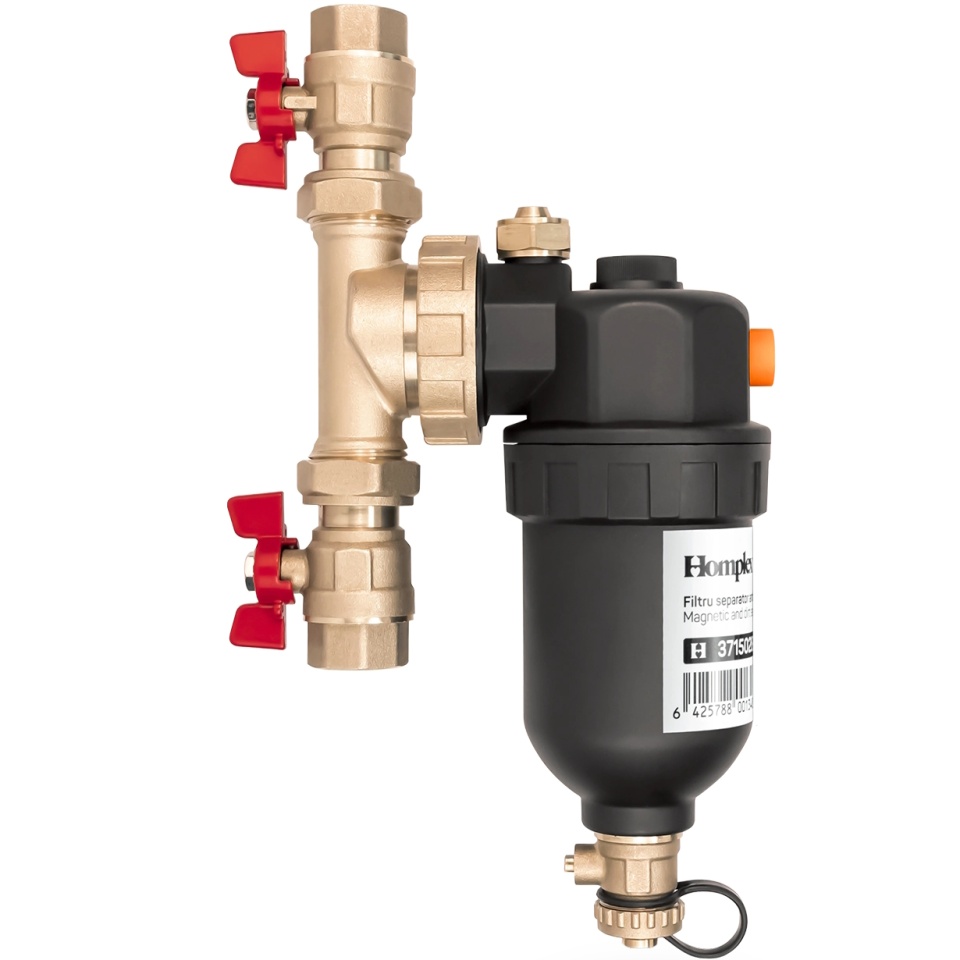

Magnetic and dirt separator filter Homplex MF12000

The Homplex MF12000 magnetic filter has been specially developed for heating systems – underfloor or with radiators.

The Homplex MF12000 magnetic filter protects, prevents and prolongs the service life of the heating system and the heating circuit. It helps to remove iron oxide, deposits and impurities from the system resulting from installation or normal operation. High-performance neodymium magnetic rod with 5 segments. Fast cleaning in up to 5 minutes. Large filtration capacity, 300ml cup. High pressure resistant up to 1200kPa. Thanks to the included 360⁰ connection coupling, it can be installed in any position.

Notes

Use this filter only in radiant floor heating or radiator circuits to protect the heating system from deposits.
Installation must be carried out by an authorised installer.
This filter contains a very strong magnet, protecting the magnetic rod from ferrous objects and accidental impact.
Removes sensitive equipment that can be affected by strong magnetic fields, especially cards (with magnetic stripe) or medical equipment (implants, etc.).
Use only suitable protective and mounting equipment.
After mounting this filter will be under pressure and at high temperatures. Release the pressure and wait for the water in the installation to cool down for intervention. Danger of burns!
For your safety, before any intervention, check that the pipes and the boiler are properly grounded!

• NEODIM - Filters out the finest particles
• Tornado cyclone filter
• 360⁰ connection coupling
• Purging impurities valve
• Cup wrench included
• Maximum efficiency
• Circuit isolation taps
• Service counter


What is a magnetic filter?

A magnetic filter for underfloor heating systems is an ingenious and useful solution for optimising the performance of these systems. Placed within the water circulation circuit, this compact and easy-to-install device becomes an effective guardian of flawless floor heating operation. The powerful magnet inside the filter attracts and retains ferromagnetic particles, such as rust, metal fragments or limescale sediment, which can cause clogging or corrosion in the system.

As the heating fluid passes through the magnetic filter, it removes captured particles, keeping the pipes and components clean and free of build-up. This preventative action helps extend the life of the entire system, preventing damage or potential defects caused by impurities.

Another important advantage of the magnetic filter is that it reduces the need for regular maintenance and cleaning of equipment. By continuously filtering and removing magnetic particles, the risk of build-up in pipes and heat exchangers is minimised, thus counteracting reduced hot water flow and reduced system performance.

Installation of the filter is quick and can be carried out at various points in the water circuit, either before or after the circulation pump or before the heater. This versatility in installation makes it suitable for a variety of floor heating system configurations.

Specifications Ultrapure MF12000

Type of filtration: Magnetic and dirt
Magnet type Permanent Neodim
Magnet power 12000 Gauss
Number of magnetic segments 5
Filtration rate <50L / minute
Working temperature +4 ... +95⁰C
Working pressure 300 kPa
Maximum pressure 1200 kPa
Circuit isolation connections 2 taps, normal threads, 3/4"
Cup volume 300ml
Cup colour Black
Fittings colour Brass
Mounting position 360⁰
O-rings EPDM
Positioning in the circuit Before the boiler
Weight (including accessories) 1850g

Dimensions
Tap heads 210 mm
Cup diameter 90 mm
Filter height 245 mm
Filter width with attached connection 150 mm
Maximum possible height 310 mm
