The mixing group serves to lower and maintain the desired temperature of the heating medium in the surface heating system.
Technical parameters:
- Static pressure (PN): max. 0,4 MPa (4 bar)
- Dynamic working pressure: max. 0,3 MPa (3 bar)
- Flow factor Kv: 1,9 m3/h
- Temperature regulation range: 20-40°C
- Accuracy of regulation: +/- 3°C

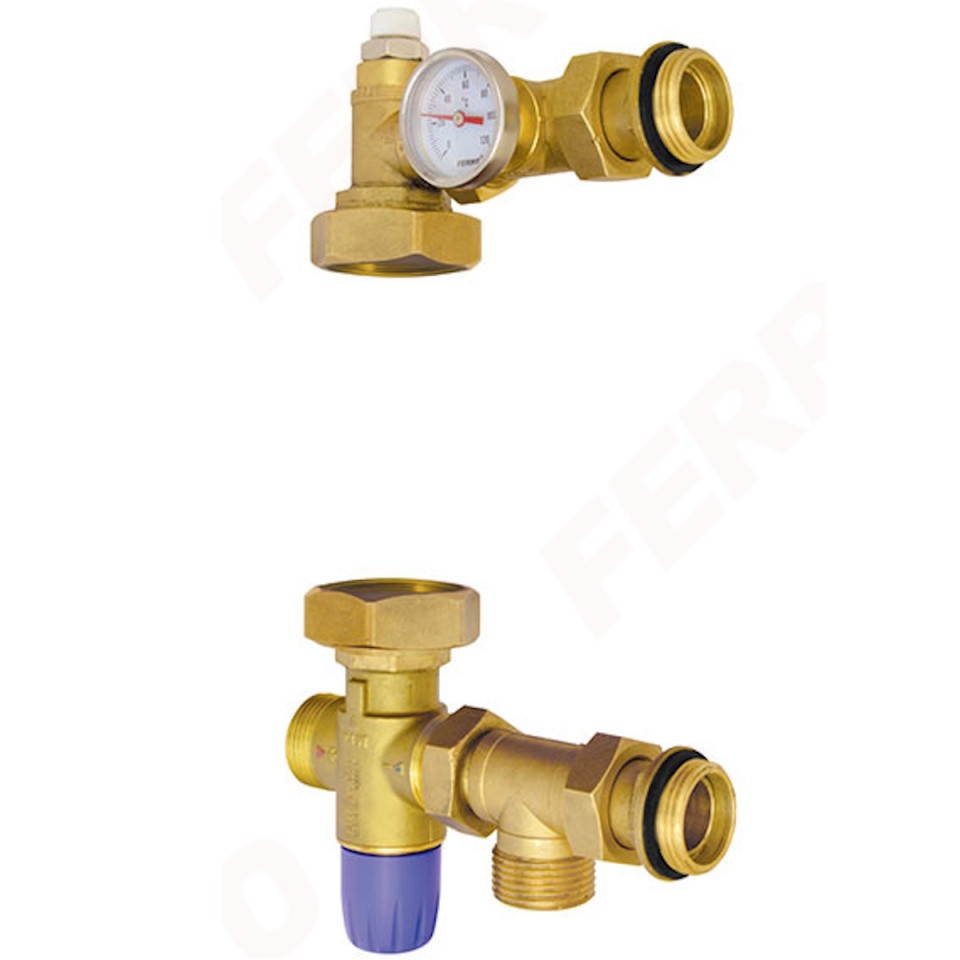

The group contains:
- 3-way thermostatic mixing valve
- Air vent
- Thermometer
- Set of unions
Advantages:
- Universal group for all types of manifolds with 210 mm bar spacing
- Precise and simple control
- Reversible
