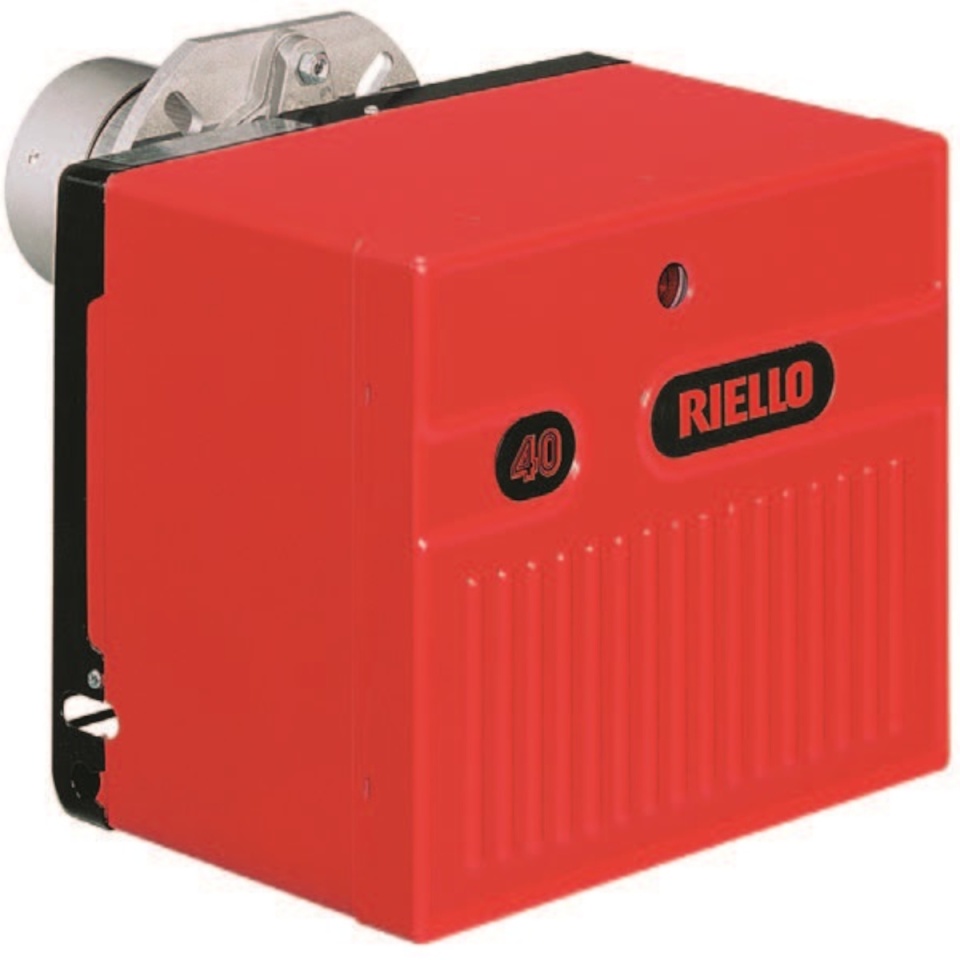

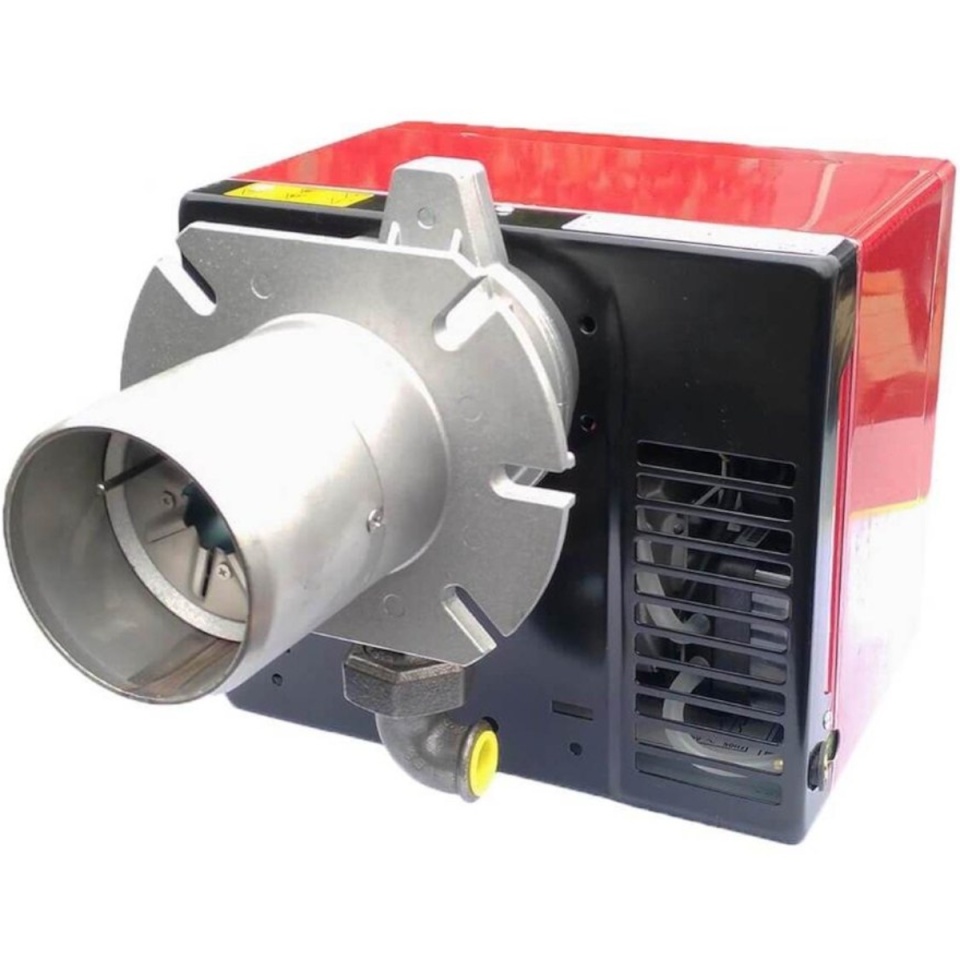

Oil Burner Riello 40 G20

Certified Energy Efficiency | Premium Solution for a Wide Range of Applications

The Riello 40 G20 Oil Injector Burner is a monobloc, single-stage combustion equipment, renowned for its reliability and consistent performance. Designed and manufactured by the Italian leader Riello, this model is the ideal choice for systems that require a stable and controlled heat source, using diesel fuel (or similar fuels, diamatic oil type) as fuel.

🛠️ Essential Technical Features
Type: Monobloc burner with forced air (integrated fan).

Fuel: Diesel (Diamatic Oil).

Operation: Single stage (On/Off), optimized for high efficiency.

Compact Design: Easy to install and maintain, thanks to the monobloc structure.

Quality Components: Equipped with precision electronic and mechanical components from Riello, ensuring clean combustion and an extended lifespan.

🎯 Industrial and Commercial Applications
The versatility of the Riello 40 G20 burner makes it indispensable in multiple sectors. It is designed to work flawlessly with:

Sector Specific Use Key Benefit
Thermal Water Boilers 💧, Steam Boilers 💨 Ensures fast and constant generation of thermal agent/steam.
Food Bread Baking 🍞, Pastry Ovens Stable combustion for precise temperature control in the baking process.
Automotive/Industry Paint Booths (Paint Booths) 🎨 Uniform heat required for fast and defect-free paint drying.
Heating Hot Air Generators (Halls, Greenhouses) Robust solution for efficient and fast heating of large spaces.
Agricultural Tobacco Dryers 🌿, Vegetable Dryers 🥕 Fine thermal control, vital for preserving the quality and properties of dried products.
💚 Advantages of Investing in Riello
Low Consumption: Riello technology guarantees optimized diesel consumption, contributing to reducing operating costs.

Available Spare Parts: Being a popular model, maintenance is simplified by easy access to original Riello spare parts.

Simplified Assembly: Thanks to the monoblock design, installation time and complexity are minimized.

Main Technical Specifications (Riello 40 G20):
Operating mode 1 Stage

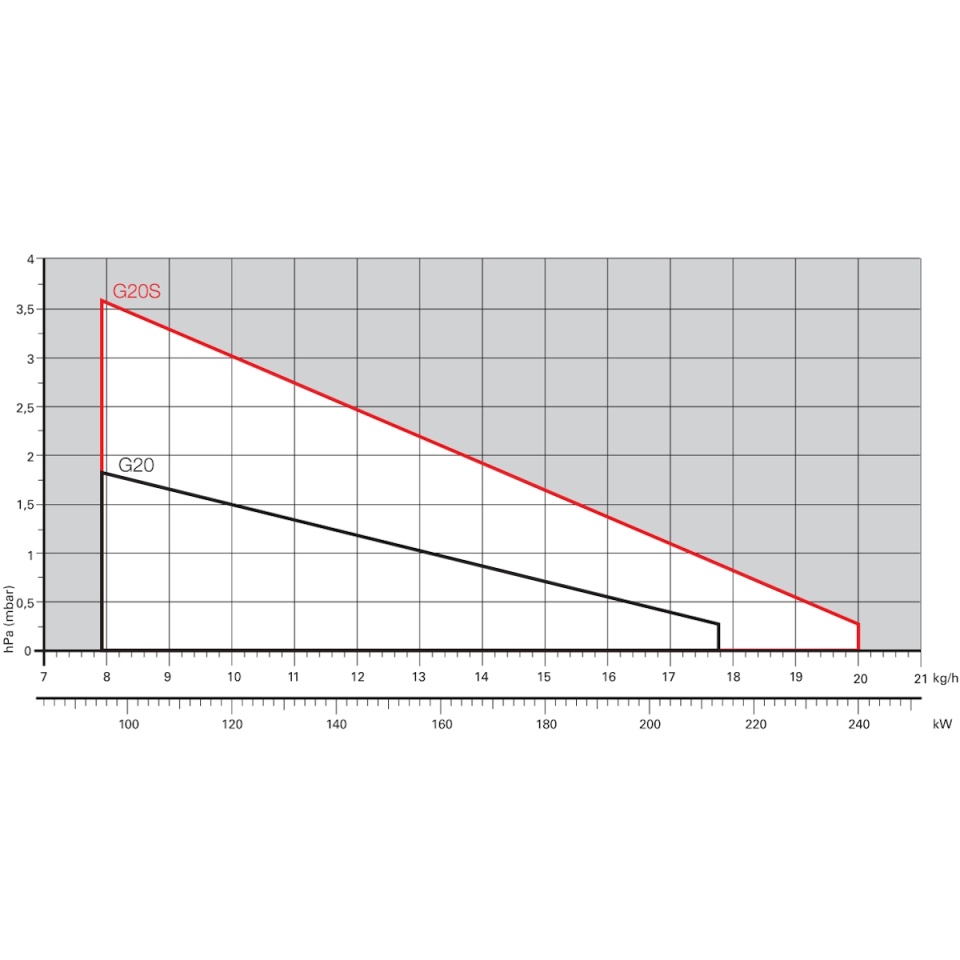

Thermal power 95-213 kW
Thermal power 81.7-206.4 Mcal/h
Min. / max. working temp. 0/40 °C
Diesel consumption 8-18 kg/h
Pump pressure 8 ÷ 15 bar
Max. diesel temp. 50 °C
Combustion air temp. max. 40 °C
Power supply 230V / 50Hz ±10%
Total electrical power 0.33 kW
Electrical protection class IP X0D (IP40)
Motor electrical power 0.15 kW
Noise level 72 dB(A)
Emissions 20 CO mg / kWh
NOx emissions 190 mg / kWh

Don't leave the efficiency of your system to chance. Choose the Riello 40 G20 Burner from Termix.ro for a long-lasting, powerful and versatile heating solution!

👉 View full specifications and order online with fast delivery!
