Optimizer Huawei SUN2000-450W-P2

Description

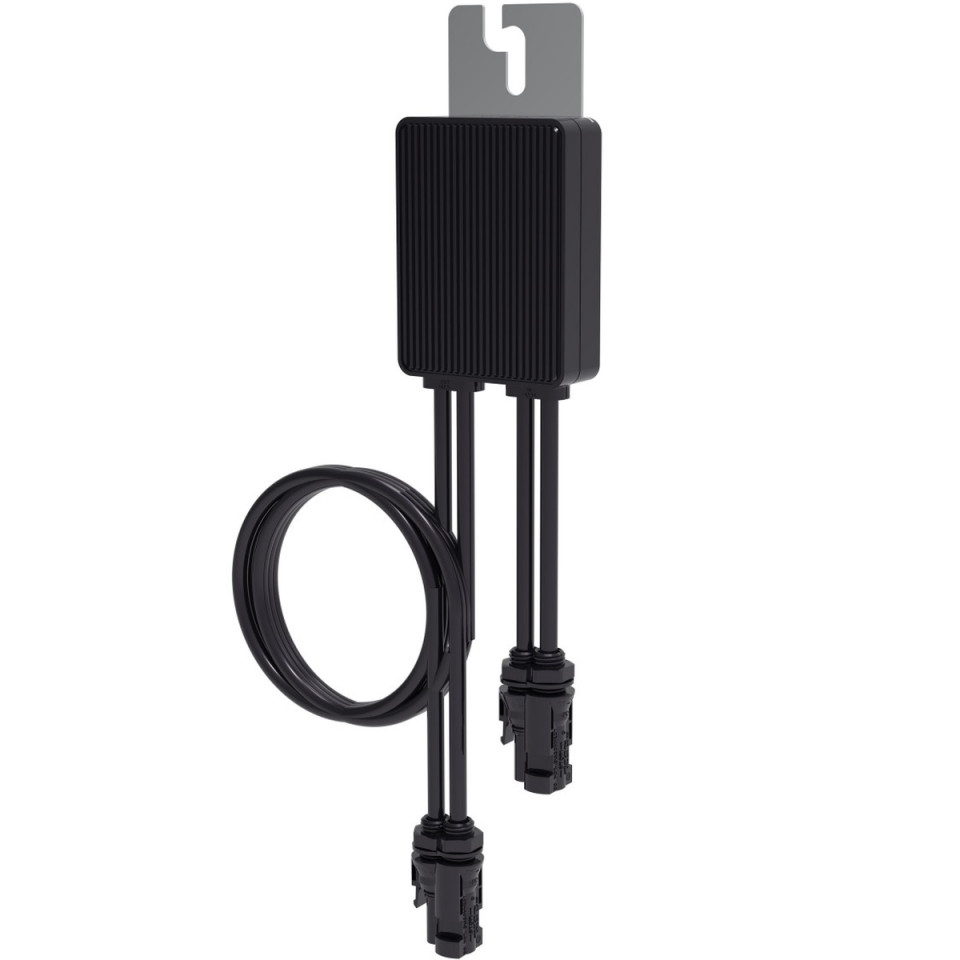

Optimizer Huawei SUN2000-450W-P2

The Huawei Smart SUN2000-450W-P2 Optimiser is designed to get the maximum power out of a solar panel. In this way, the component can once again noticeably increase the efficiency of the system. To make this possible, modern technology is integrated by the manufacturer.

The Huawei Smart SUN2000-450W-P2 Optimiser measures 71 x 138 x 25 mm and weighs 550 g, so it can be easily installed on the module. For integration into the system, there is one input and one output connector each Staubil MC4. The cable has a length of 1.2 metres, which promises flexibility during installation.

On the technical side, the Huawei Smart SUN2000-450W-P2 optimiser offers a rated input power of 450 watts at an absolute input voltage of 80 volts, the possible voltage range is 8 to 80 volts. The optimiser handles an input current of 13 A. The component complies with overvoltage category II. The enormously high efficiency of 99.5 % (weighted efficiency 99.0 %) is impressive. This underlines the claim of the power optimiser to increase the efficiency of the system.

The adaptability of the component should also be emphasised; the Huawei Smart SUN2000-450W-P2 Optimizer is a so-called one-fits-all element that is compatible with various modules. Pairing with the inverter is quick and easy.

Efficiency

Maximum efficiency 99.5%

European weighted efficiency 99.0%

Input

Rated PV module power 450 W

Maximum PV module power 472.5 W

Maximum input voltage 80 V

MPPT voltage range 10–80 V

Maximum short-circuit current 14.5 A

Overvoltage level II

Output

Rated output power 450 W

Output voltage 0–80 V

Maximum output current 15 A

Output bypass Yes

Shutdown output voltage/impedance 0 V/1 kΩ (±10%)

General Specifications
Technical Specifications

SUN2000-450W-P2

Dimensions (W x H x D) 75 × 140 × 28 mm

Net weight ≤ 600 g

DC input and output terminals: Staubli MC4

Operating temperatures –40°C to +85°C

Storage temperature -40°C to +70°C

Operating humidity 0–100% RH

Maximum operating altitude: 4000 m

IP rating: IP68

Installation mode: PV module support installation / PV module frame installation.

Note a: When the operating temperature of the optimizer ranges from 70℃ to 85℃, the optimizer may shut down for overtemperature protection and report an overtemperature alarm. After the operating temperature decreases, the optimizer automatically recovers with no risk of damage.
