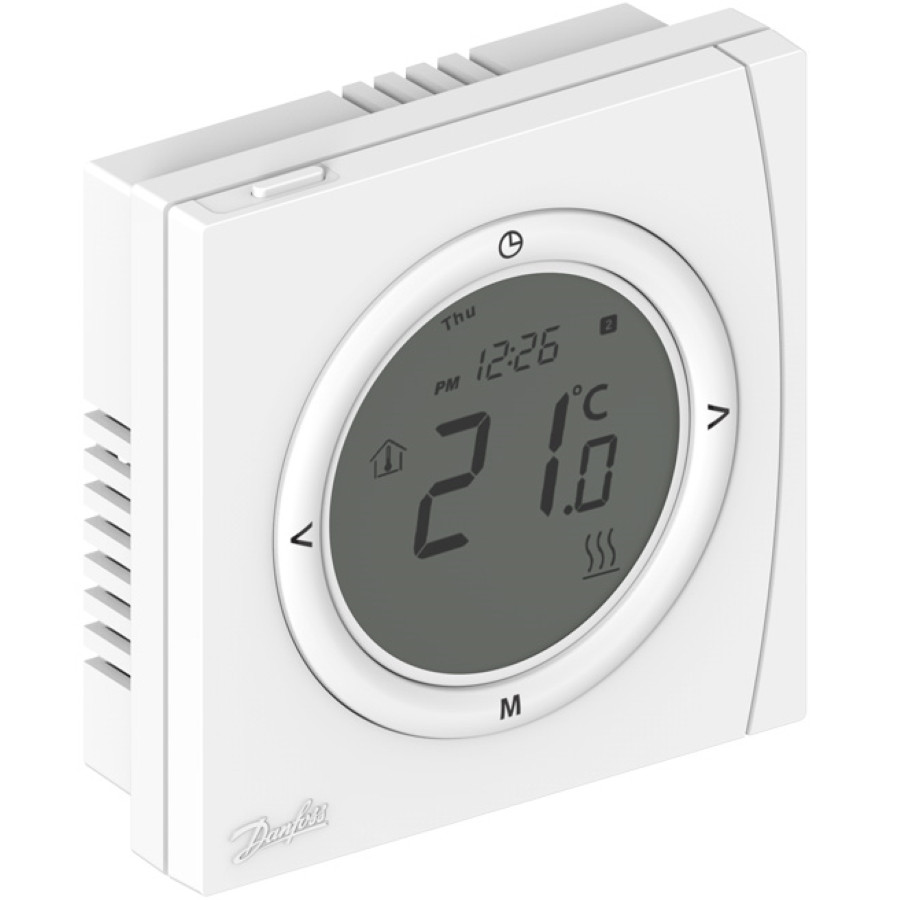

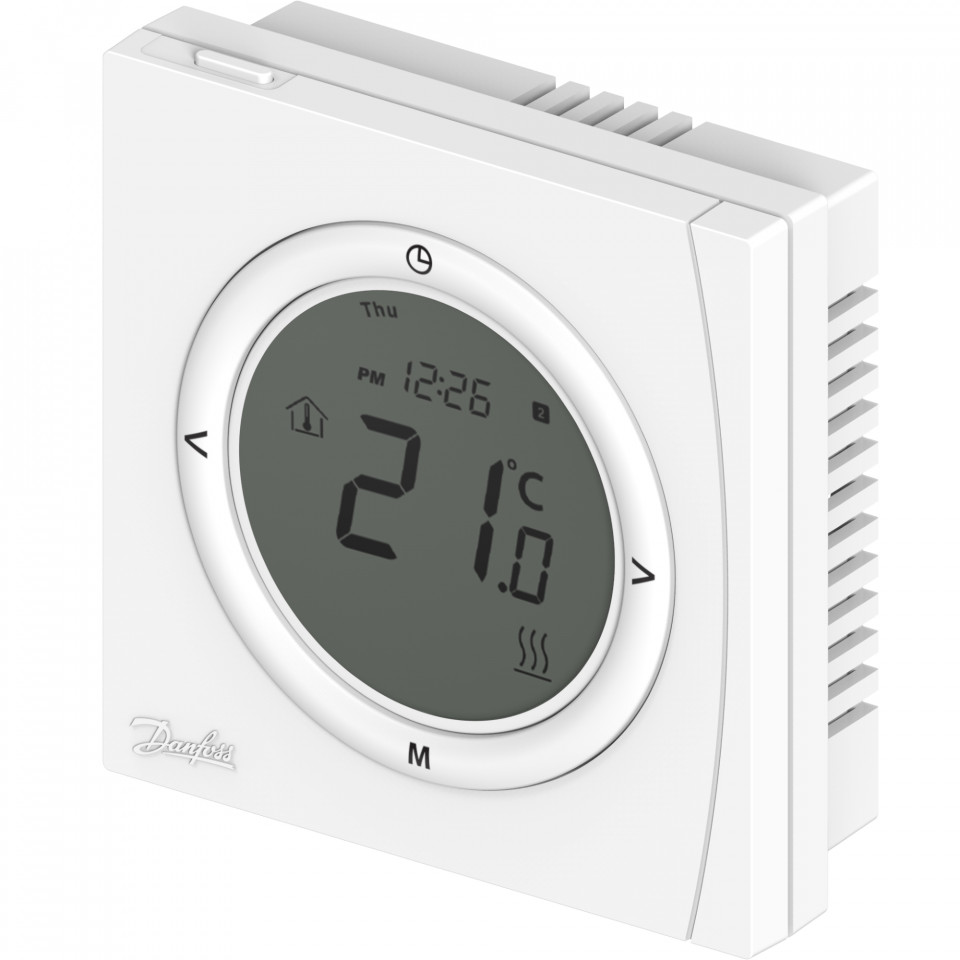

Programmable Room Thermostat TP5001M

Description

Programmable Room Thermostat Danfoss TP5001M, On/Off load compensation, Schedule type: 5/2 day, 24 hour, 230 Vac

The TP5001 adds full heating schedule control to the features offered in the RET variants. By selecting a schedule to suit their daily heating demand
the user can significantly reduce cost of heating the home and avoid wasting energy when away from the home or at night.

The TP5001 can be set to 5–2 Day schedule or 24Hr depending on user preference and if required schedule can be deactivated and the device
can be used manually like a room thermostat. 4 event times can be selected (2 heating periods) for morning and evening.

Additional features:
• Optimised and Delayed Start
• Clock in 12-hour or 24-hour format
• Boiler service interval timer (400 days)

Product details

Gross weight 208 g, Net weight 208 g
Ambient temperature[Max] 40 °C
Application Room heating
Automatic daylight saving Yes
Back lit display Yes
Ball hardness test [°C] 75 °C
Built In sensor Yes
Clock display AM/PM or 24 hour display
Colour White RAL 9010
Control pollution Degree 2
Control Type On/Off load compensation
Delayed start control Yes
Depth [mm] 43 mm
Description TP5001M, Mains powered digital electronic programmable room thermostat
Design standard EN 60730-2-9
Displays time or temperature Yes
Factory pre-set programmes Yes
Frequency [Hz] 50/60 Hz
Frost protection Yes
Height [mm] 86 mm
Material ABS+PC, non-flammable
On/Off control Yes
On/off modulating control Yes
On/Offs Per Day 4
Optimum start control Yes
Output relay rating inductive [A] 1 A
Output relay rating resistive [A] 3 A
Override function Yes
Product group Programmable Room Thermostats
Product name TP5001M Prog Stat 230V, V2
Rated impulse voltage [kV] 2.5 kV
Remote sensor option No
Schedule type 5/2 day, 24 hour
Service Interval timer Yes
Supply Type 230Vac
Switch type SPDT
Tolerance ±10%
Width [mm] 86 mm
