Programmable room thermostat TPOne-RF + RX1-S

Description

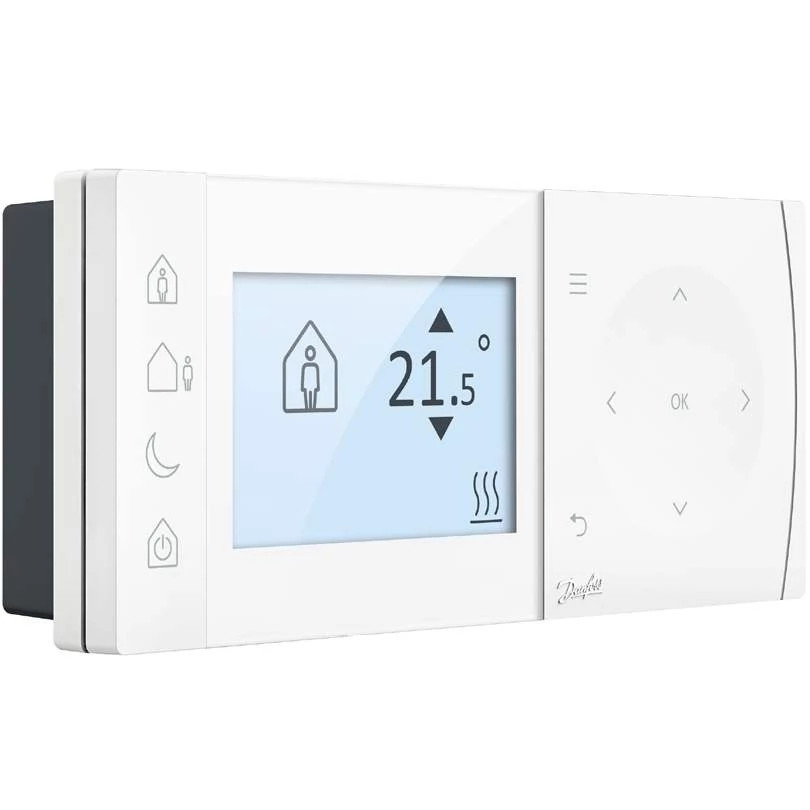

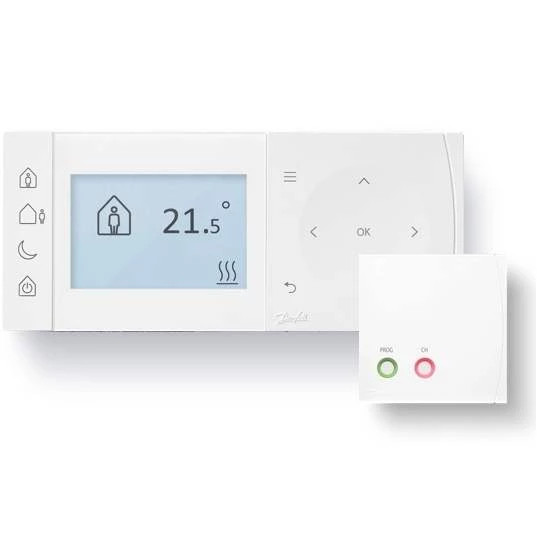

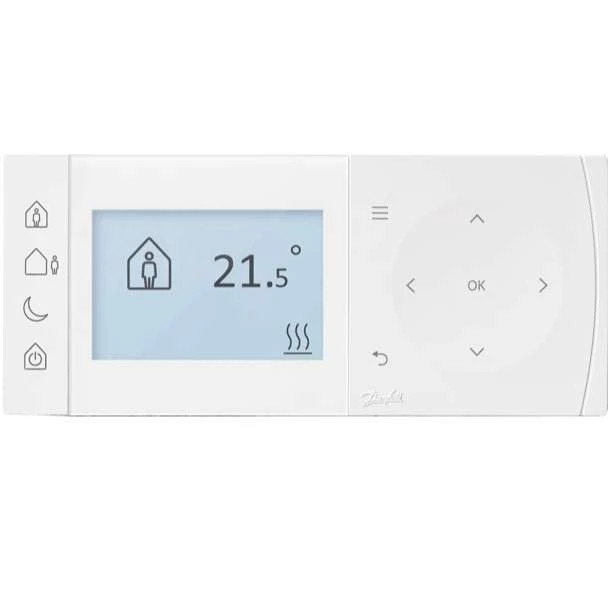

Programmable room thermostat Danfoss TPOne-RF + RX1-S

7-day programming, frost protection function and open window, built-in sensor, battery power.

Ultra-modern electronic thermostat with illuminated graphic display, large, with icon-symbol
The display shows clear text
For control of thermal power plants, heating boilers
Separate menus for User and Installer (Service)
Different programming modes: startup, delayed start, etc., which adjust dynamically. Also, holiday programs, Home, Gone, Sleep, antifreeze
Single-touch operation (single touch typing)
Possibility to connect an external sensor or a window sensor (open)
Introduction of thermal power plant service programming
TPI self-learning algorithm
ErP class: IV (savings of up to 2% with the help of TPI)
Selectable operation (via DIP switches): on-off or chrono-proportional.
When the Chrono-proportional operating mode is selected, the thermostat introduces a fixed start / hour cycle and determines, based on a proportional-integral PI algorithm, the required duration of the on-off operating periods.

The chrono-proportional mode of operation visibly improves the user's comfort, increases the efficiency of the thermal power plant and contributes to the fuel economy.

Protection class: IP20

Contact: SPDT 230 Vac, 3 A; free of potential

Temperature regulation range: 5 ... 35oC

Operating frequency: 433 MHz; maximum range: 30 m

Power supply: Batteries, 2 x 1.5 V AA alkaline; battery life: min. 2 years.

Dimensions = 66x155x30 mm and 84x84x28 mm (for RX1-S receiver
