Programmable Thermostat RDE100.1

Description

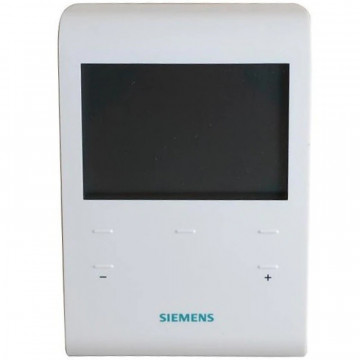

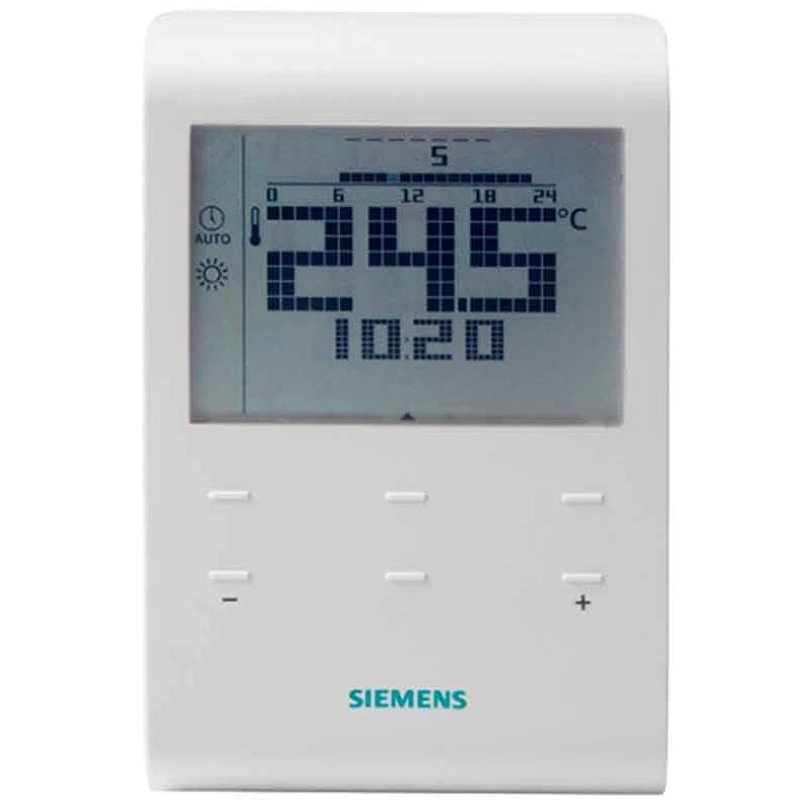

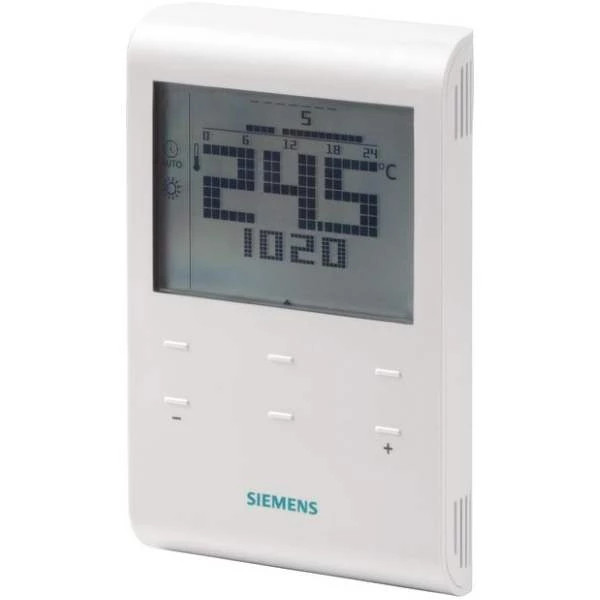

Programmable Digital Room Thermostat Siemens RDE100.1

with switching for 7 days (4 programs daily), usable in systems only with heating.

2-position control, with ON / OFF output for heating
Working modes: 4 -comfort / economical / Auto (time program) / anti-freeze.
Time schedule: different daily schedule / 7 identical days schedule / 5 + 2 days schedule
Periodic control of the circulation pump from the thermal power plant component
Key lock
2 free input signals
Floor temperature limitation function (for underfloor heating installations). The floor sensor is connected to X1.
Digital display
Electrical voltage: 3 Vdc (2 alkaline batteries of 1.5 V AAA). Electric current: max. 5 A Frequency 50/60 Hz
Degree of electrical protection of the housing: IP30
Switching range: 5-35oC; 0 (OFF) Switching hysteresis: 1 K
Dimensions: BxAxH = 85 x 21.5 x 127 mm; Weight = 0.166 kg
